8-11-10 Replacement of the T2 A/N Keyboard
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-11-10-1 Preparations
Remove the Unity Gel Warmer Cable Cover as described in 8-7-8 "Replacement of the Unity Gel
Warmer Cable Cover" on page 8-96
8-11-10-2 Removal Procedure
8-11-10-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Table 8-105 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes Phillips Screwdriver
Cut resistant gloves
Knee Pad

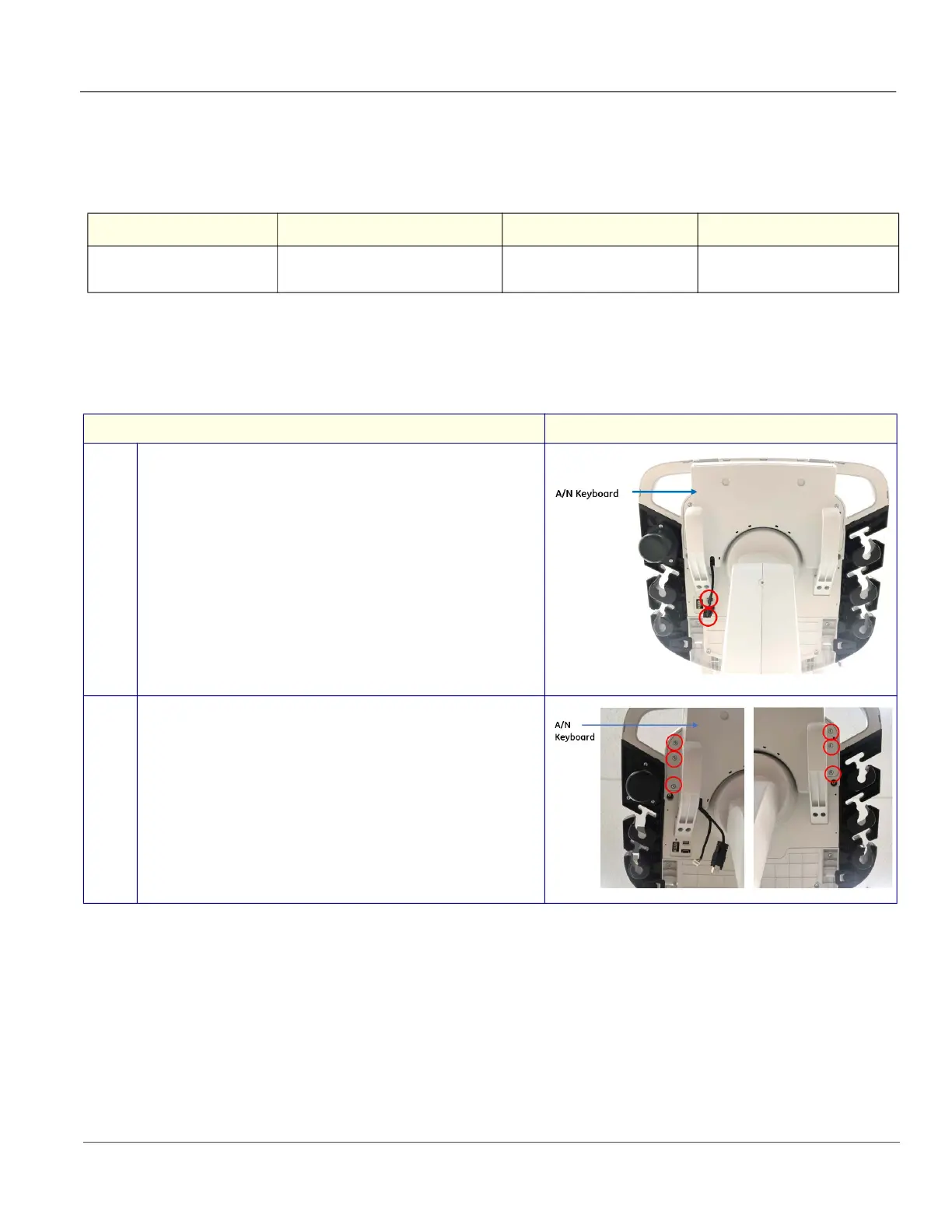

Step Corresponding graphic
1. Disconnect 2 cables of T2 A/N Keyboard from the console.
2.
Unscrew 6 screws to remove the T2 A/N Keyboard from the
console.
To Next Page
