Grandstream Networks UCM6206 User Manual

P a g e | 175
UCM6200 Series User Manual
4. For "DOD Number" enter one of the numbers (DIDs) from your SIP trunk provider. In the example above
Company ABC received 4 DIDs from their provider. ABC will enter in the number for the CEO's direct line.
5. If extension number need to be appended to the DID number click on “Add Extension”.
6. Select an extension from the "Available Extensions" list. Users have the option of selecting more than one
extension. In this case, Company ABC would select the CEO's extension. After making the selection, click
on the button to move the extension(s) to the "Selected Extensions" list.

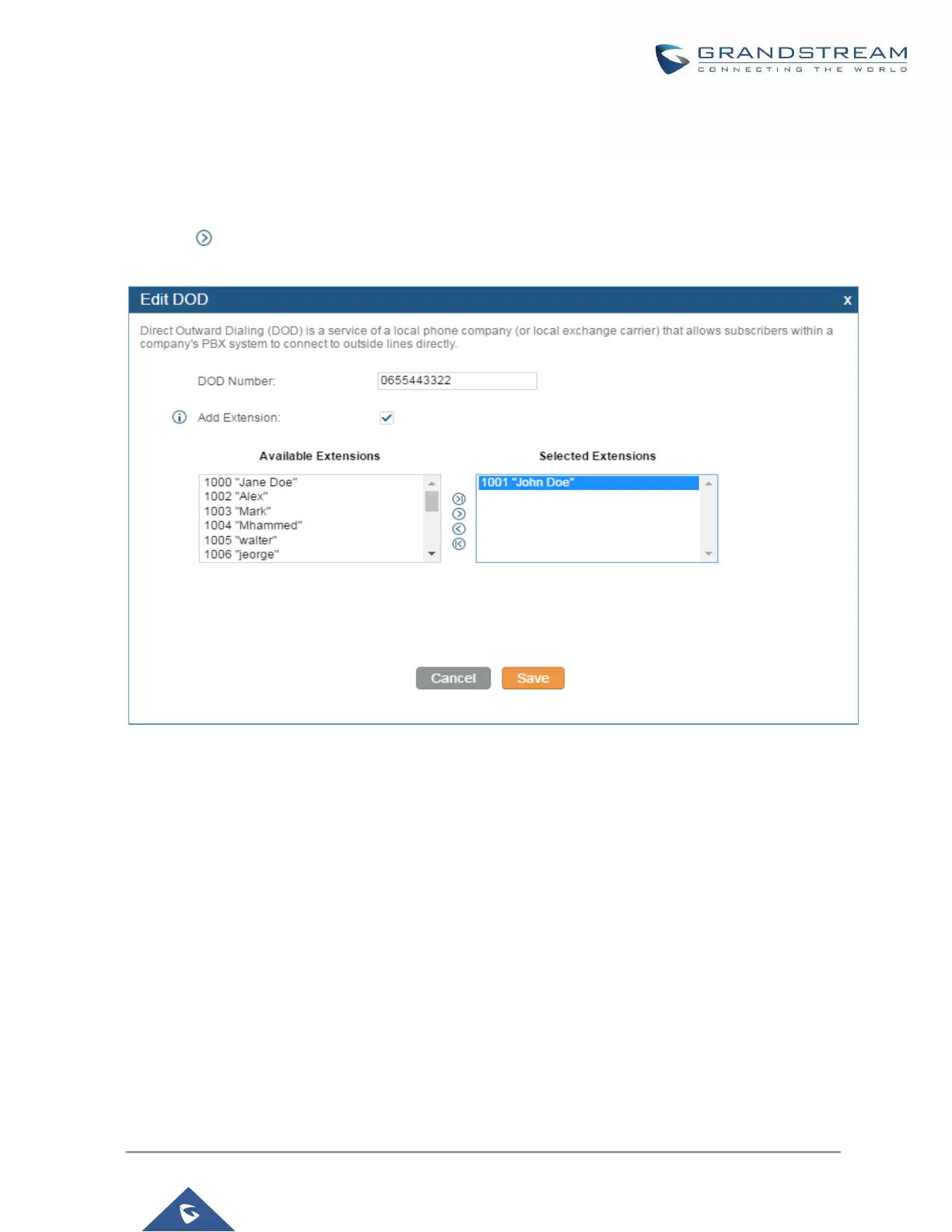

Figure 111: DOD extension selection
7. Click "Save" at the bottom.
Once completed, the user will return to the EDIT DOD page that shows all the extensions that are associated
to a particular DOD.

Grandstream Networks UCM6206 Specifications

General

Brand	Grandstream Networks
Model	UCM6206
Category	IP Phone
Language	English
