FAX with Two Media
The UCM6200 supports Fax re-invite with multiple codec negotiation. If a Fax re-invite contains both T.38 and
PCMA/PCMU codec, UCM6200 will choose T.38 codec over PCMA/PCMU.
Blacklist Configurations
In the UCM6200, Blacklist is supported for all inbound routes. Users could enable the Blacklist feature and
manage the Blacklist by clicking on "Blacklist".
• Select the checkbox for "Blacklist Enable" to turn on Blacklist feature for all inbound routes. Blacklist is
disabled by default.
• Enter a number in "Add Blacklist Number" field and then click to add to the list. Anonymous can also be
added as a Blacklist Number.
• To remove a number from the Blacklist, select the number in "Blacklist list" and click on .

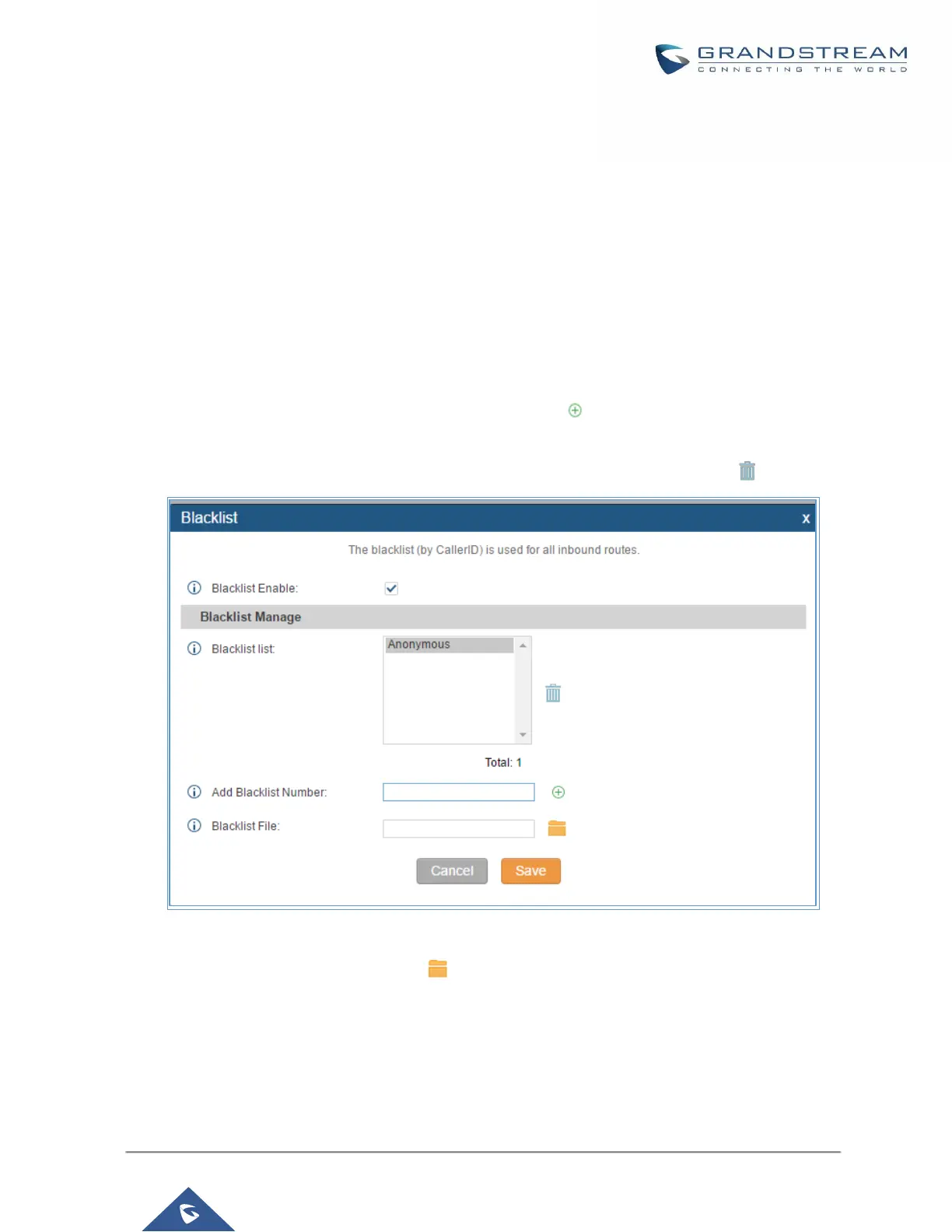

Figure 121: Blacklist Configuration Parameters
• To add blacklist number in batch, click on to upload blacklist file in csv format. The supported csv format
is as below.
