P a g e | 214

UCM6200 Series User Manual

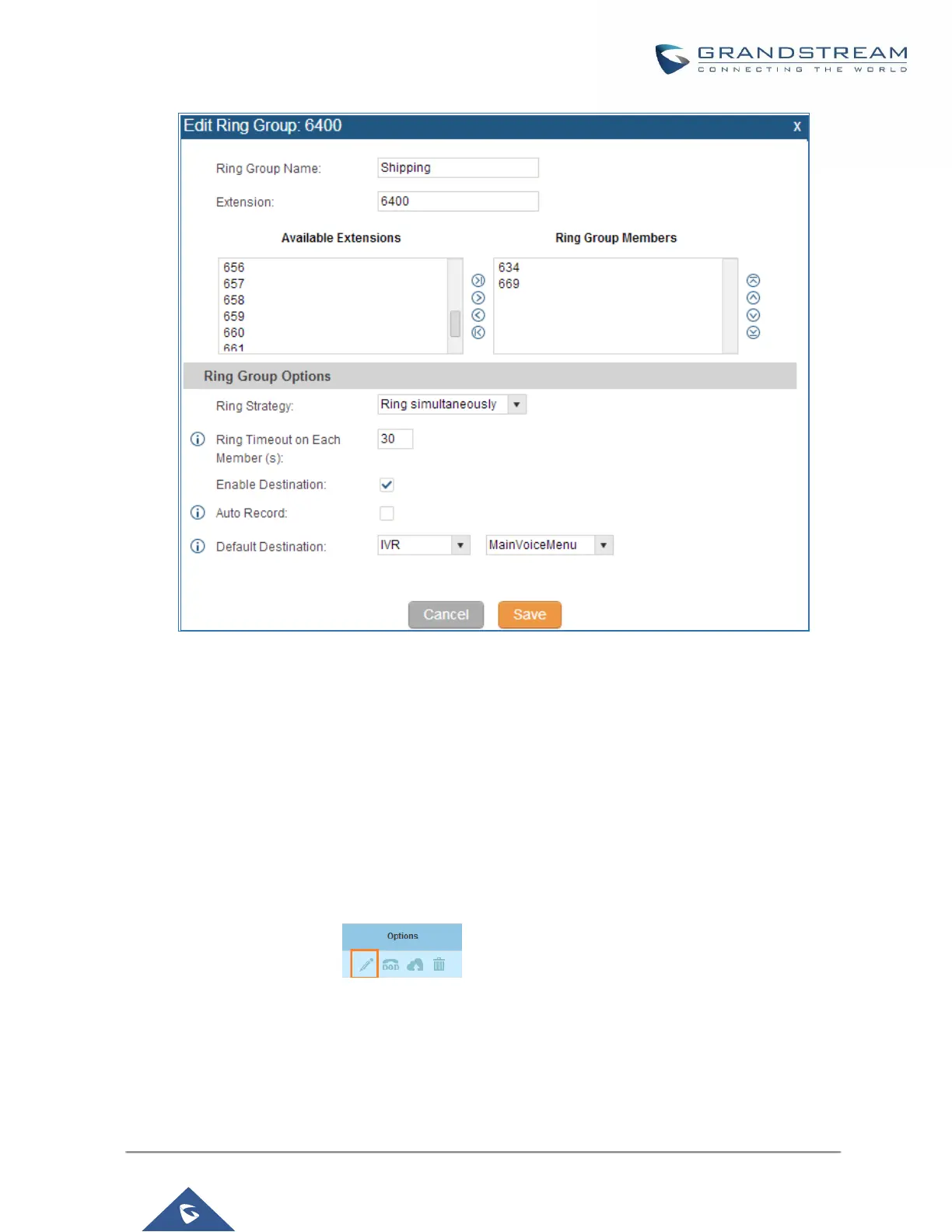

Figure 136: Ring Group Configuration

Remote Extension in Ring Group

Remote extensions from the peer trunk of a remote UCM6200 can be included in the ring group with local

extension. An example of Ring Group with peer extensions is presented in the following:

1. Creating SIP Peer Trunk between both UCM6200_A and UCM6200_B. SIP Trunk can be found under web

UI-> PBX-> Basic/Call Routes-> VoIP Trunks. Also, please configure their Inbound/Outbound routes

accordingly.

2. Click edit button in the menu , and check if Sync LDAP Enable is selected, this option will

allow UCM6200_A update remote LDAP server automatically from peer UCM6200_B. In addition, Sync

LDAP Password must match for UCM6200_A and UCM6200_B in order to sync LDAP contact

automatically. Port number can be anything between 0~65535, and use the outbound rule created in step 1

for the LDAP Outbound Rule option.
