P a g e | 241

UCM6200 Series User Manual

SPEED DIAL

The UCM6200 supports One-Key Dial that allows users to call a certain destination by pressing one digit 0 to 9

on the keypad. This creates a system-wide speed dial access for all the extensions on the UCM6200.

To enable One-Key Dial, on the UCM6200 web GUI, go to page PBX->Call Features->One-Key Dial.

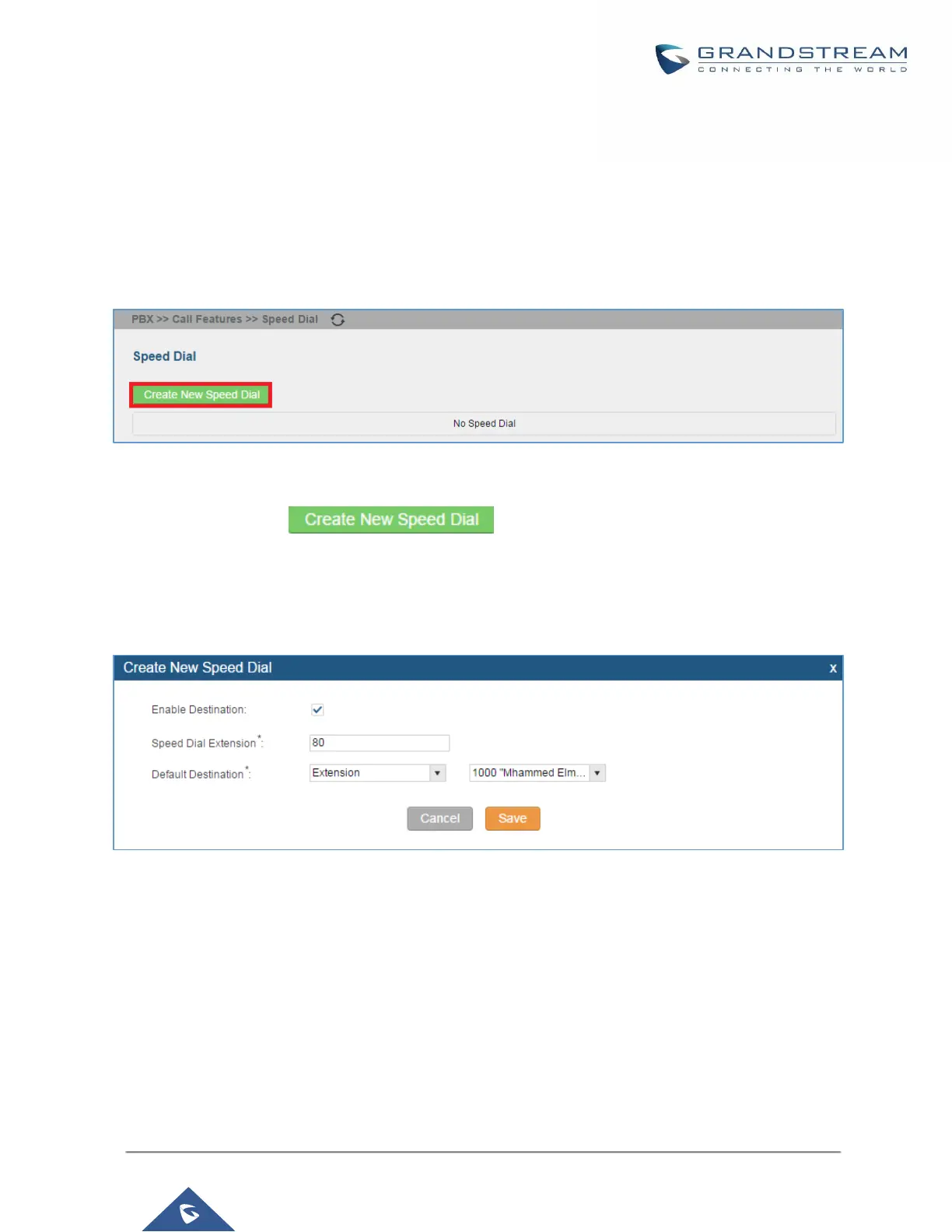

Figure 160: Configure Speed Dial

User should first click on . Then decide a one digit or two digits used for Speed

Dial and select a dial destination from “Default Destination”. The supported destinations include extension,

voicemail, conference room, voicemail group, IVR, ring group, call queue, page group, fax, DISA, Dial by Name

and external number.

Figure 161: Speed Dial Destinations
