P a g e | 211

UCM6200 Series User Manual

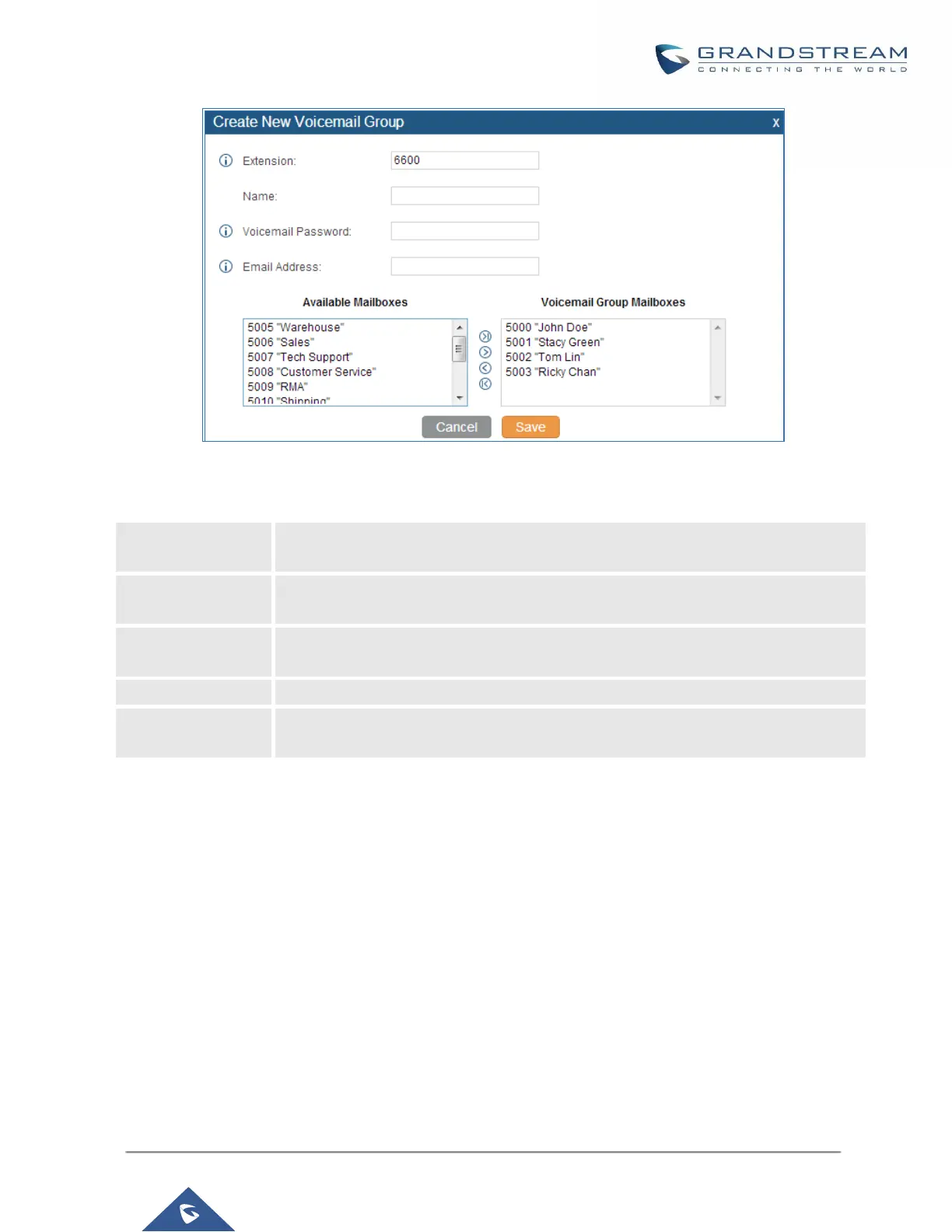

Figure 134: Voicemail Group

Table 70: Voicemail Group Settings

Extension

Enter the Voicemail Group Extension. The voicemail messages left to this extension

will be forwarded to all the voicemail group members.

Name

Configure the Name to identify the voicemail group. Letters, digits, _ and - are

allowed.

Voicemail

Password

Configure the voicemail password for the users to check voicemail messages.

Email Address

Configure the Email address for the voicemail group extension.

Voicemail Group

Mailboxes

Select available mailboxes from the left list and add them to the right list. The

extensions need to have voicemail enabled to be listed in available mailboxes list.
