121

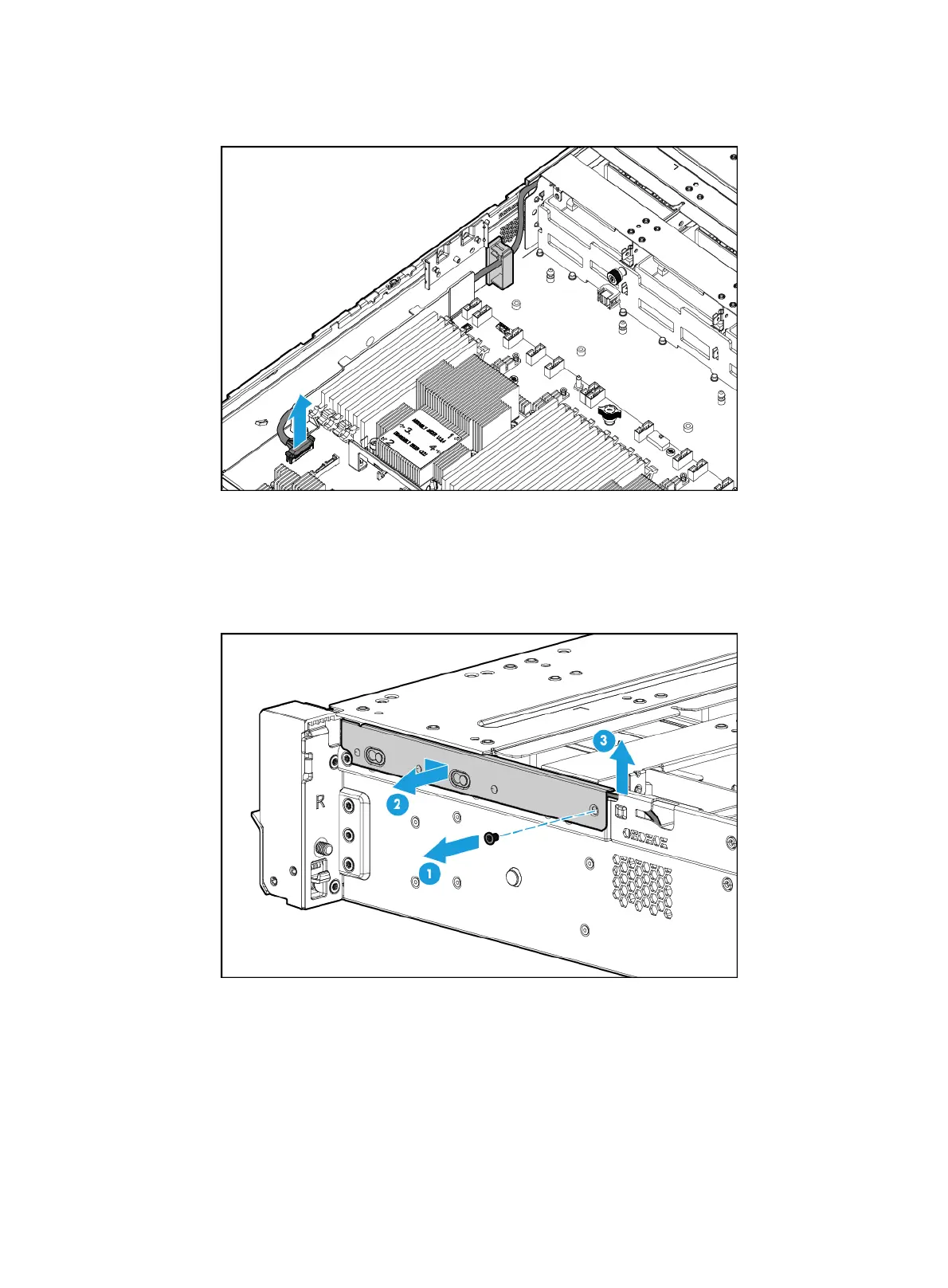

Figure 158 Disconnecting the front I/O component cable assembly from the system
board
b. Remove the screw that secures the cable protection plate, slide the plate toward the rear of
the chassis, and then remove it from the chassis, as shown by callouts 1 and 2 in Figure
159.
c. Pull the I/O compon
ent cable out of the slot, as shown by callout 3 in Figure 159.
Figure 159
Removing the cable protection plate
7. Remove the screws that secure the right chassis ear, and then pull the chassis ear until it is
removed, as shown in Figure 160.
