The system starts to configure the host and will open the UIS Manager homepage after host
configuration.

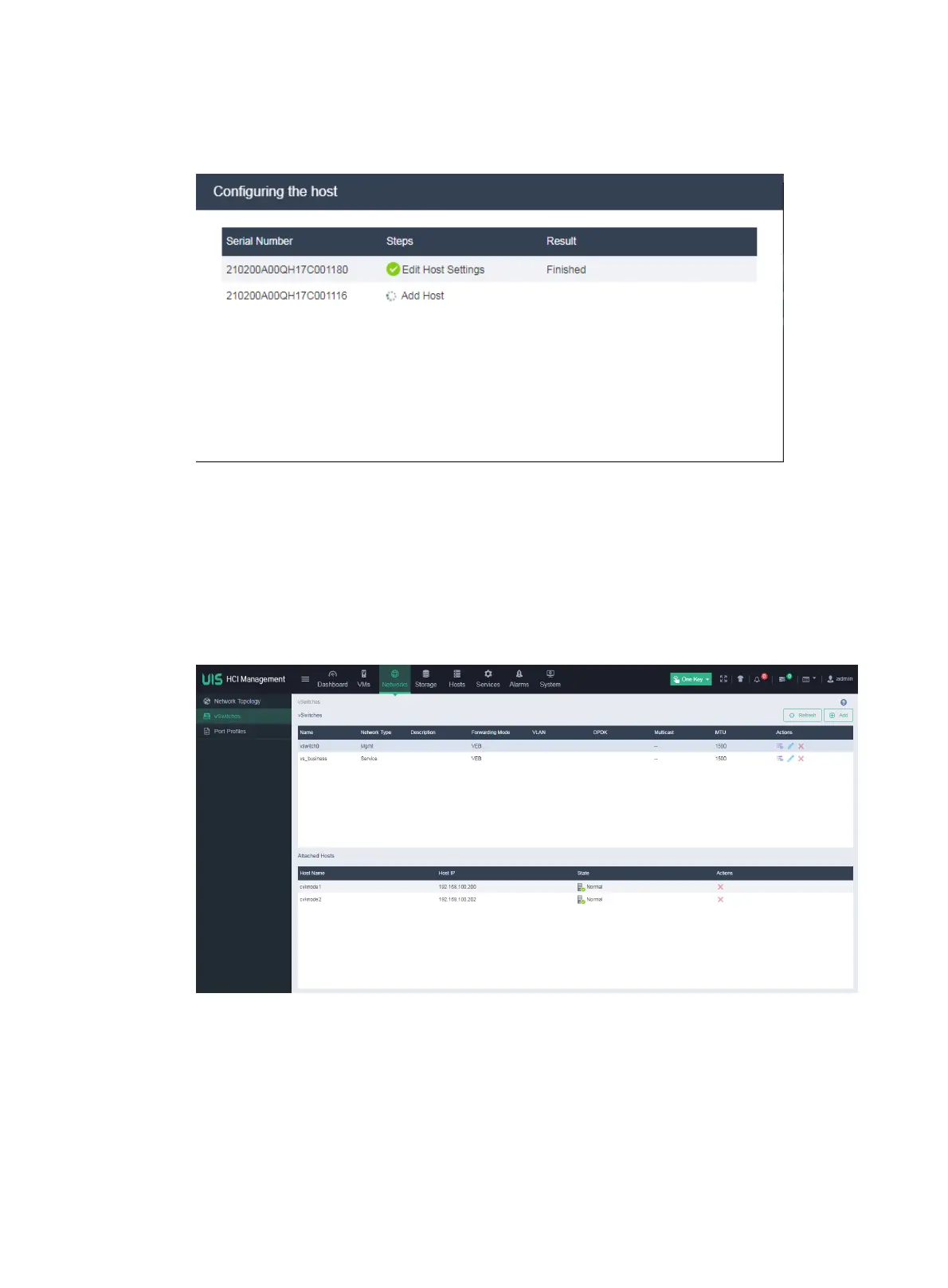

Figure 25 Configuring the host
Adding a virtual switch
A virtual switch provides software-based switching between VMs, hosts, and the external network.
Perform this task only when IP SAN storage is used.
To add a virtual switch:
1. On the top navigation bar, click Networks, and then select vSwitches from the navigation
pane.
Figure 26 Accessing the vSwitches list
2. Click Add.
3. Enter the vSwitch name, select Storage as the network type, select VEB as the forwarding
mode, and enter the VLAN ID.
