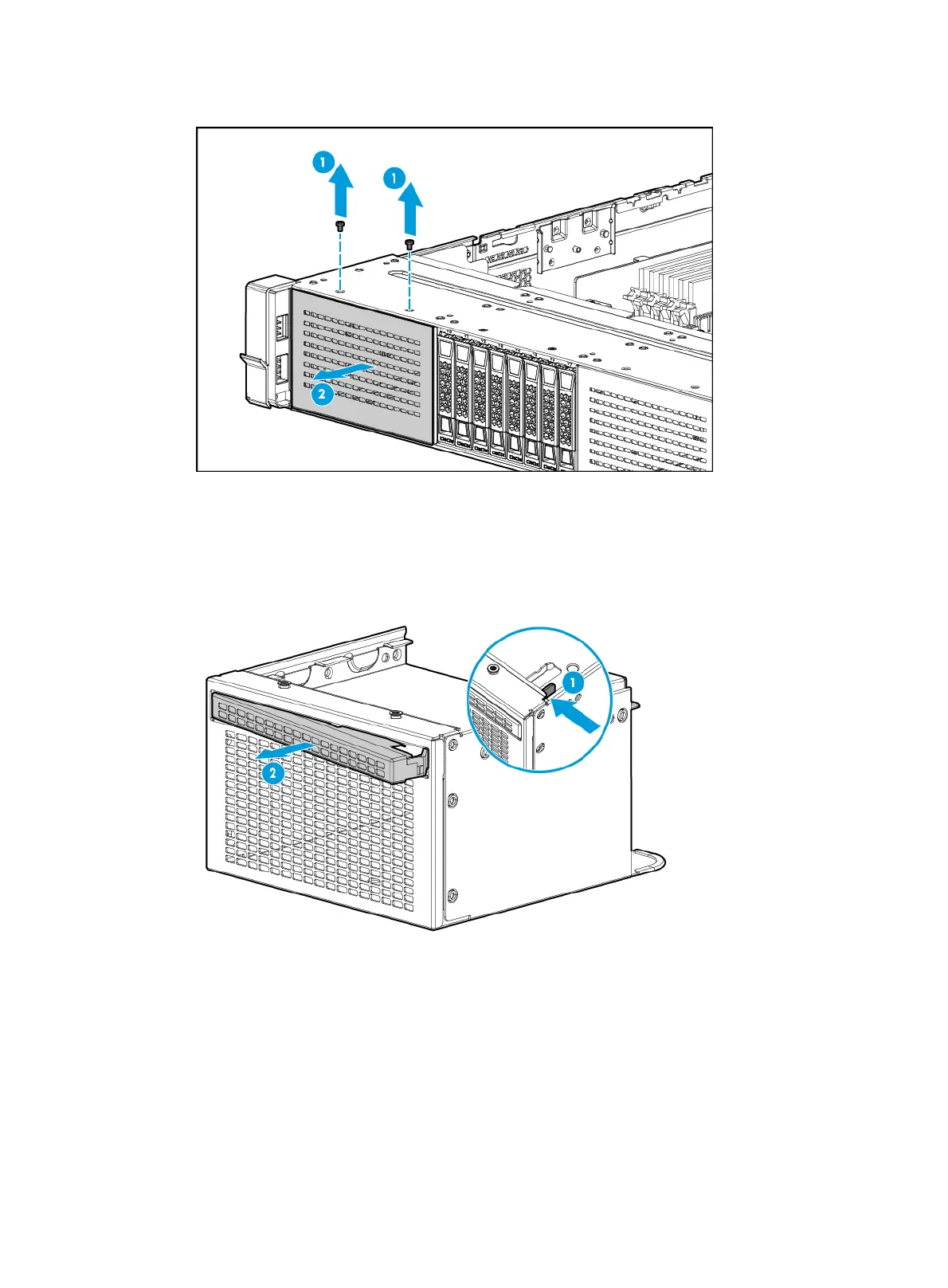

Figure 102 Removing the blank in drive cage bay 1
8. Remove the optical drive blank from the optical drive enablement option:
a. Press the clip on the right side of the optical drive blank, as shown by callout 1 in Figure 103.
The optical drive blank
will pop out from the enablement option.
b. Pull the blank out of the enablement option, as shown by callout 2 in Figure 103.
Figure 103
Removing the optical drive blank from the optical drive enablement option
9. Insert the optical drive enablement option in drive cage bay 1 and fasten the screws to secure
the option into place, as shown in Figure 104.
