Microlab
®
STAR Service Manual
6-25
Pipetting Arm X-Alignment (continued)
Slide on two Pipetting Arm Alignment Tools P/N 173956 to both sides of Pipetting
Arm and gently attach with the adjustment screws. The Pipetting Arm may be
slightly tilted around Z-Axis to align in X-Axis. Fixing screws of Pipetting Arm should
be slightly loosened beforehand.

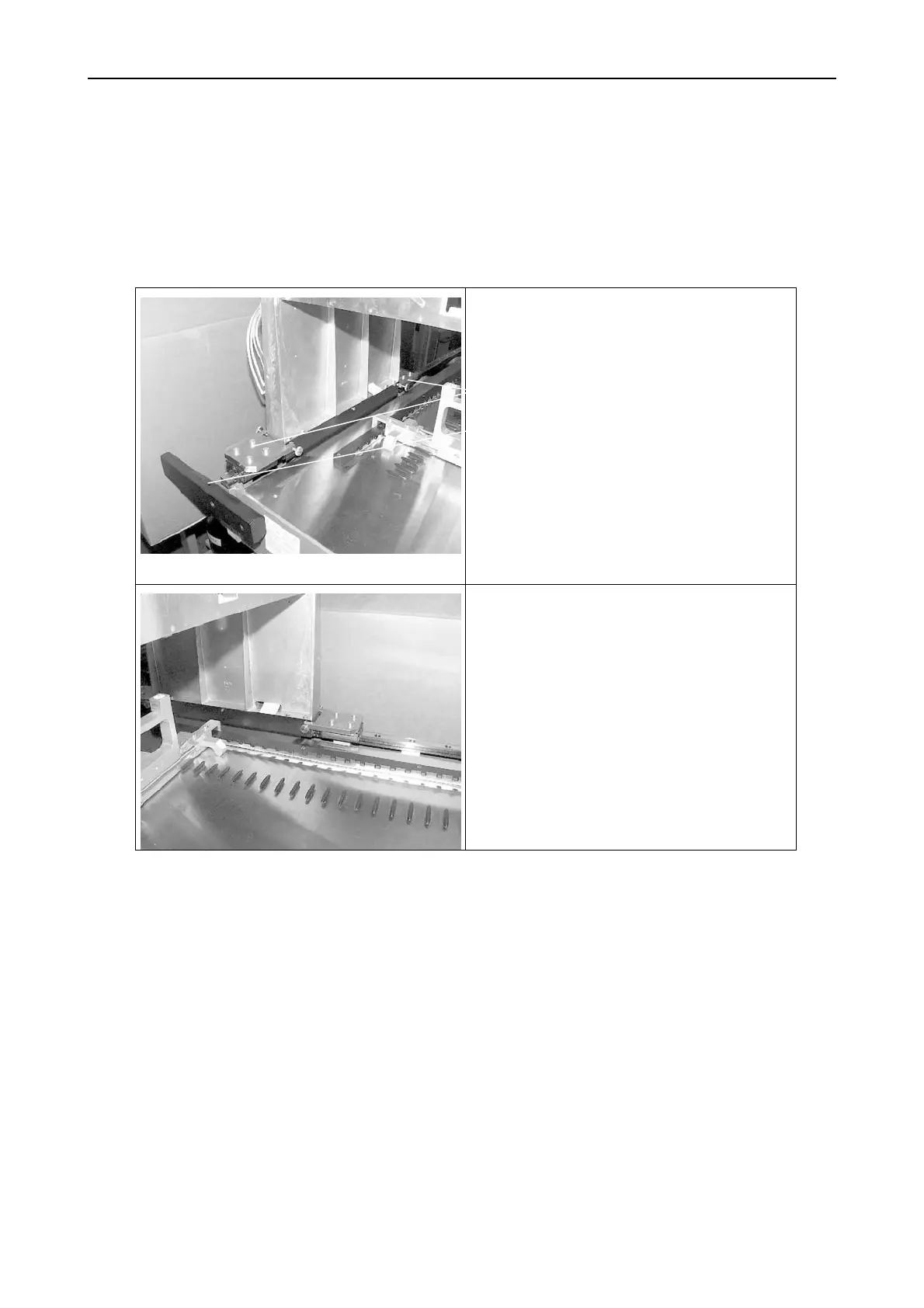

Uncovered Pipetting Arm, view from
the front left with Pipetting Arm
Alignment Tools P/N 173956
attached.
The Stop Bars on both sides of ML
STAR Instrument are turned out of
their original Positions to enable the
Pipetting Arm Alignment Tools P/N
173956 to be slid on the X-Guide
Uncovered Pipetting Arm, view from
the front right.
A Pipetting Arm Alignment Tool P/N
173956 attached to the right side of
Pipetting Arm.
