Microlab
®
STAR Service Manual
6-35
Corrective Actions (continued)

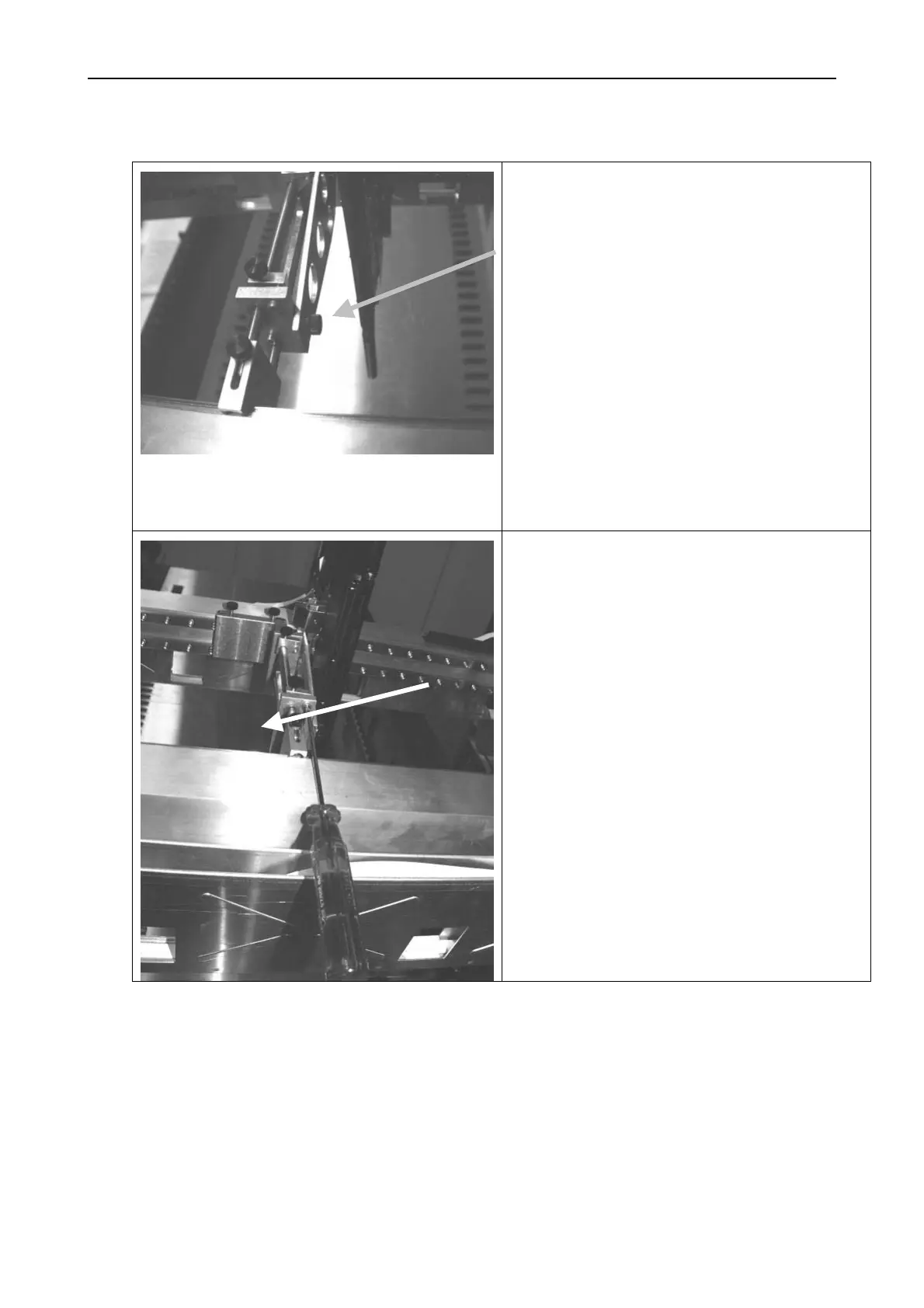

For tilting the Pipetting Channel around Y
Axis:
Release lever of channel positioning tool
by unscrewing knurled screw, then tilt
channel.
After the Pipetting Channel is corrected,
tighten the lever of channel positioning
tool first and then retighten the 2 fixing
and the 2 locking screws of the Pipetting
Channel.
Remove channel positioning tool and
continue running the PIP XY MANUAL
ADJUSTMENT.MCR to verify
improvement of alignment.
For shifting the Pipetting Channel in X
Direction:
Choose the appropriate shift stop to shift
the pipetting channel, then loosen the
opposite shift stop completely.
By turning the adjustment screw
clockwise, the channel positiong tool will
move together with the pipetting channel
towards adjustment screw.
After the Pipetting Channel is corrected,
retighten the 2 fixing and the 2 locking
screws of the Pipetting Channel.
Remove channel positioning tool and
continue running the PIP XY MANUAL
ADJUSTMENT.MCR to verify
improvement of alignment.
