Microlab
®
STAR Service Manual
6-34
Corrective Actions (continued)

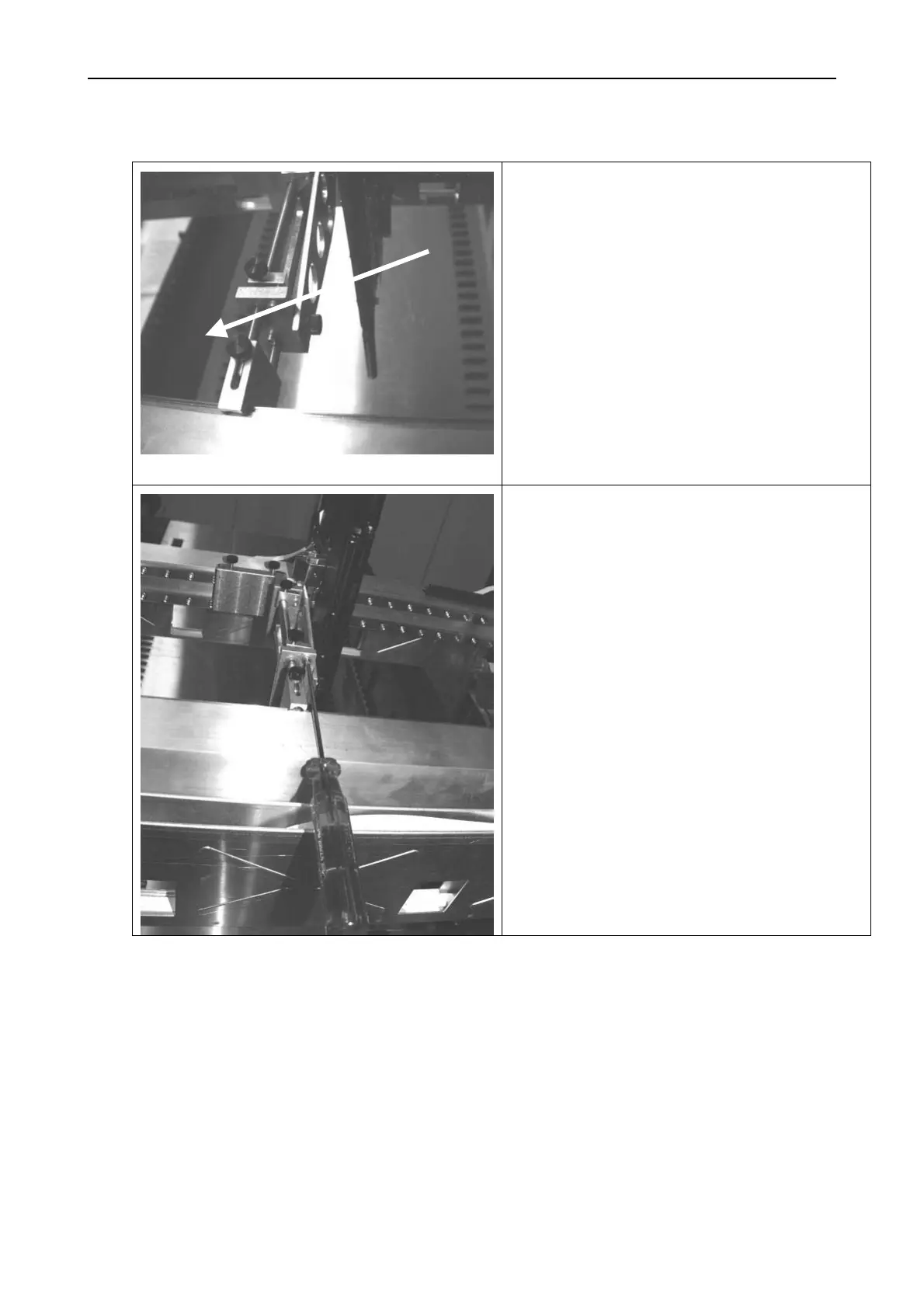

Stabilize Channel positioning Tool by
attaching the bracket onto the opposite
side of the pipetting arm.
Fix Bracket with the knurled screw.
Finally tighten the two shift stops on the
rod, and use the corresponding
adjustment screws to ensure a play-free
system ready to tilt and shift the pipetting
channel.
The two stops on the rod can be fixed by
tightening the knurled screws
Since the current position of corresponding pipetting Channel is now “frozen” by the
Channel positioning tool, the position of the channel may now be corrected.
The 2 locking and the 2 fixing screws of the Pipetting Channel must loosened first.
