Hamilton Microlab STAR - Page 74

Microlab
®
STAR Service Manual
5-4

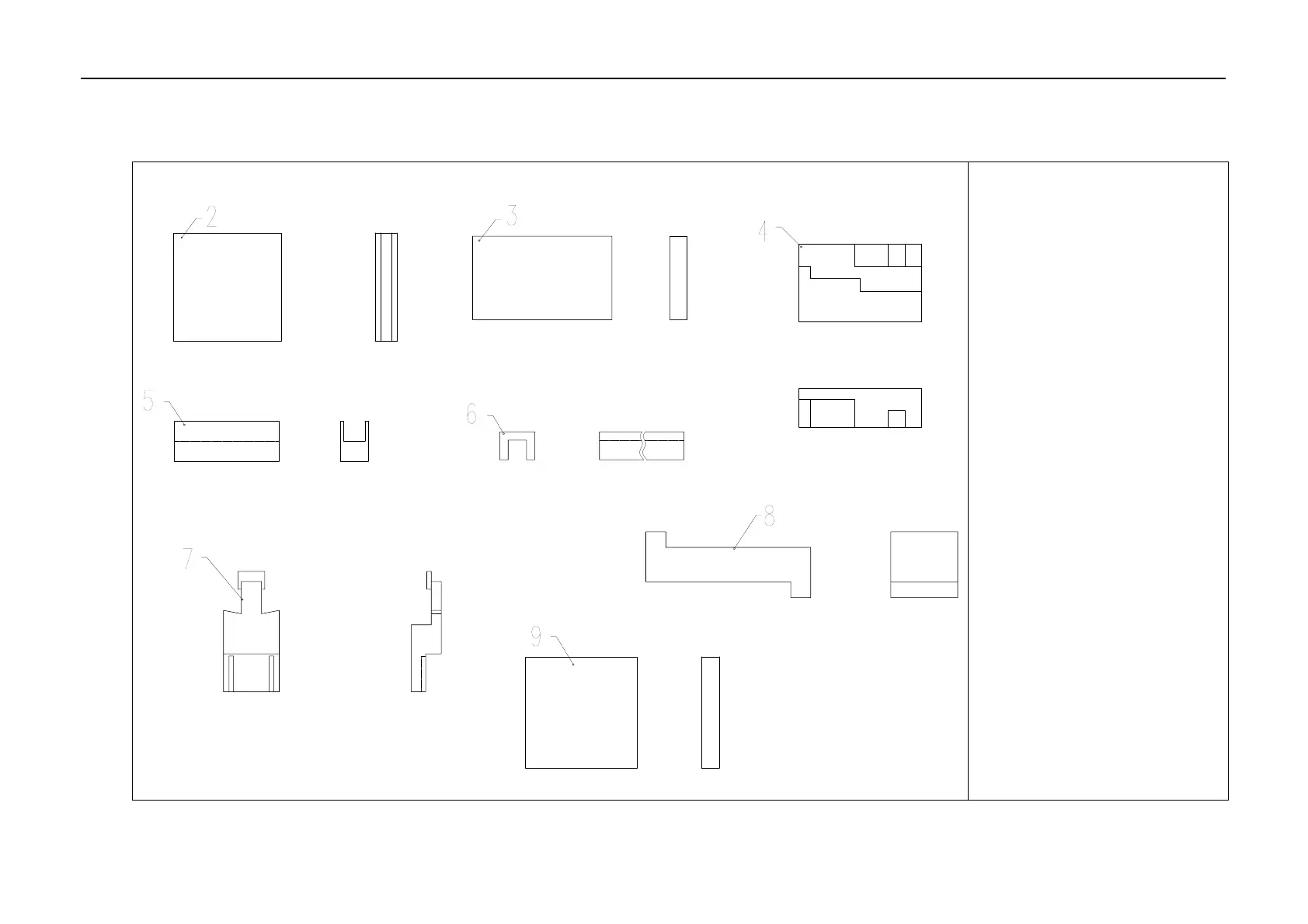

Packing the ML STAR Instrument (continued)
Item:
2. Square Foam
(1 piece)
3. Channel protection foam
blocks (between the
Channels)
(25 pieces)
4. iSwap protection block
(1 piece)
5. Channel supporting block
(1 piece)
6. U-shaped holding bars
(2 pieces)
7. Pipetting Arm supporting
Block
(1 piece)
8. Z Profiles block
(2 pieces)
9. Square Foam
(2 pieces)
