ML-STAR packaging (continued):
Attention: Prior to any transportation or movement, Instrument must be packed with its original supporting and protective foam,
placed onto the original Pallet and finally packed into its protective box.
General notes:
The following Procedure is described for a ML STAR Instrument with Autoload option. Disregard these sections if a Manual Load
Instrument is to be packed.
When the left or the right side of the ML STAR Instrument is mentioned in these instructions, the point of view is always from the
front of the Instrument (the operator’s viewpoint).

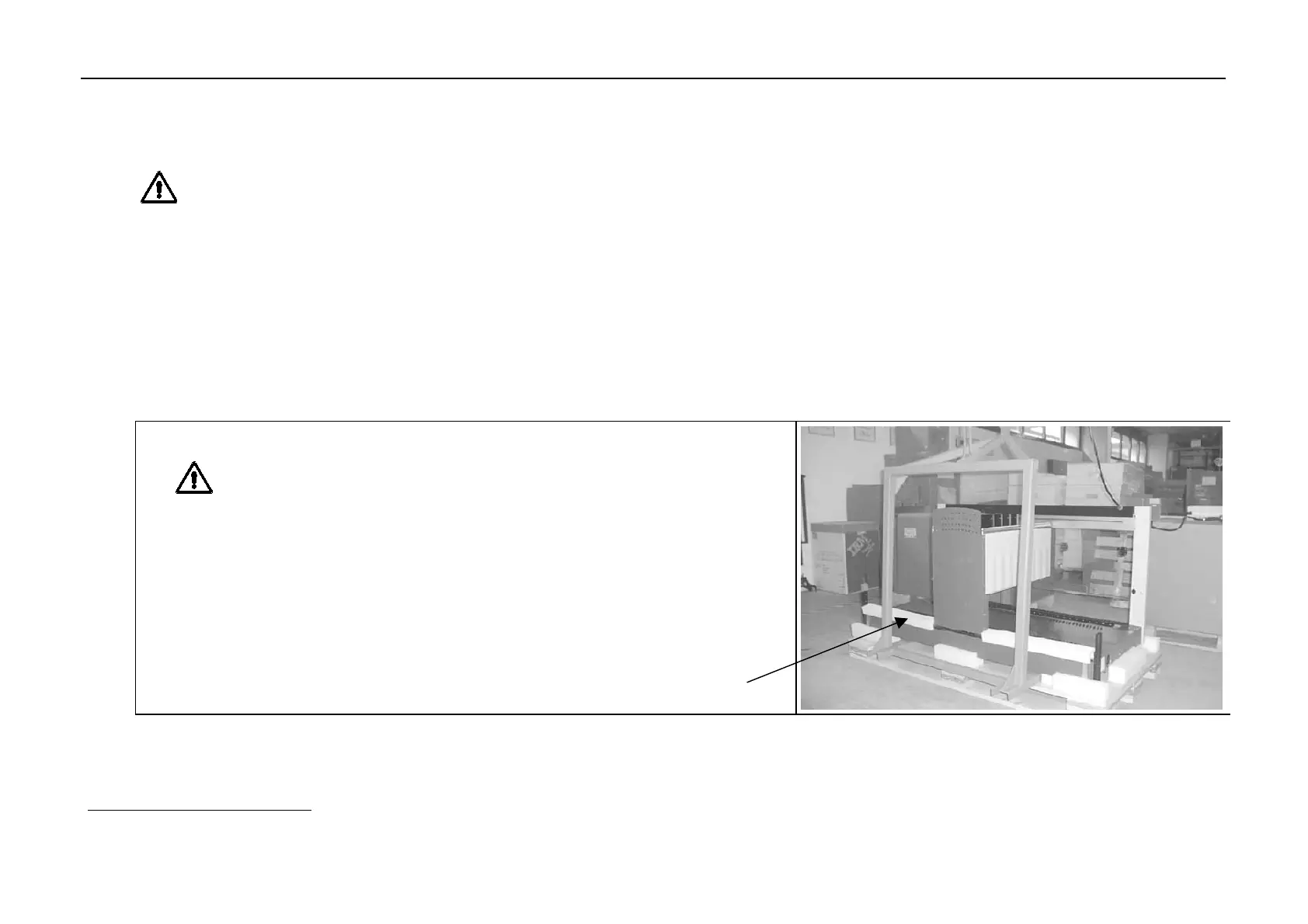

1. Lift Instrument onto Pallet (shown here is Hamiltons ML STAR Fork Lift.
Attention: Spillage Trays must be removed prior to placing onto pallet.
Auto Load must be placed / moved either onto the right or left side of the
Instrument
9
.
Pipetting arm – U-shaped protective foam bars go on X linear guide.
9
Microlab
®
-STAR Instrument with Autoload Option only
