ML-STAR packaging (continued):

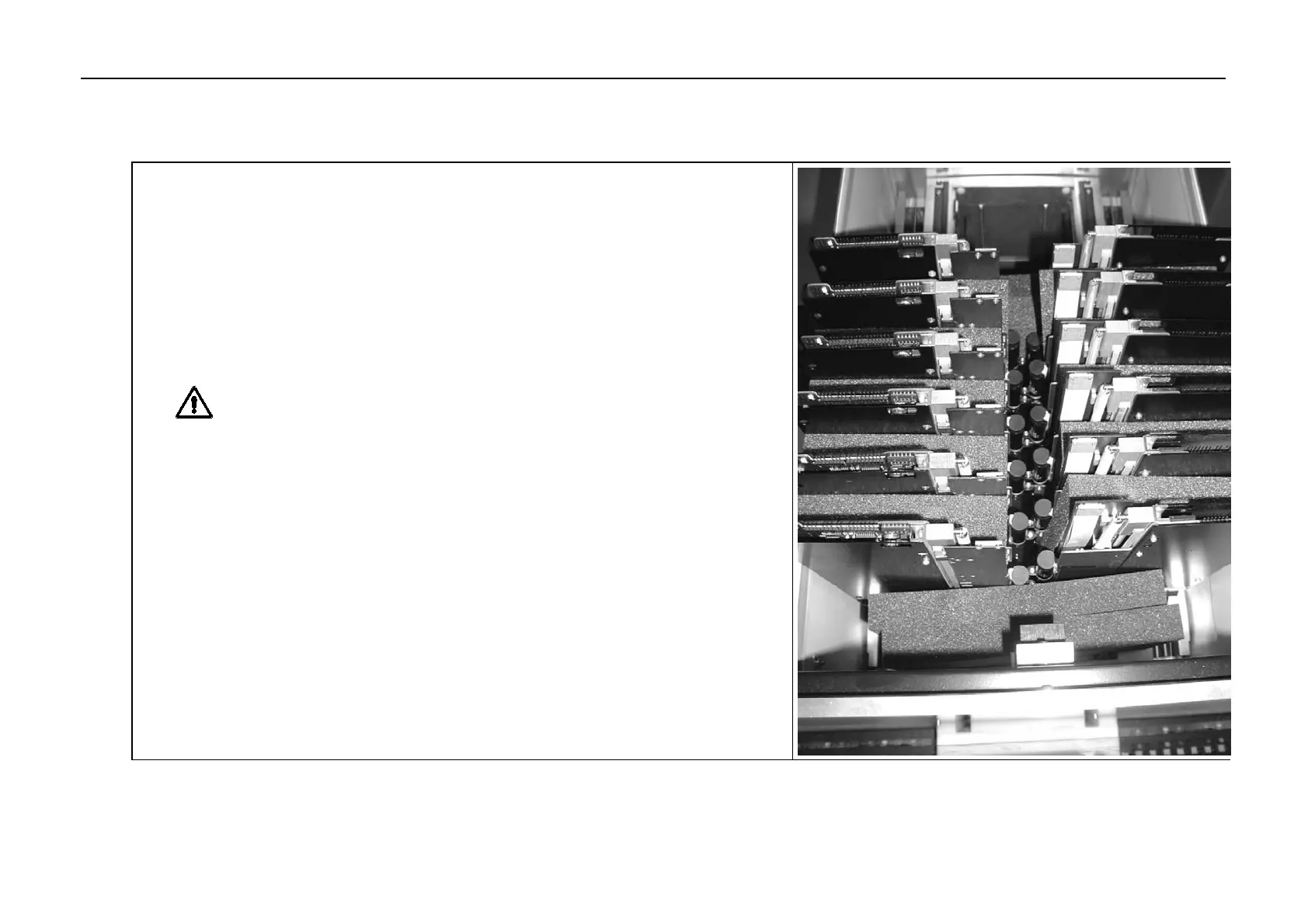

2. Uncover pipetting arm’s top housing and carefully place the protective
foam blocks between the channels as shown in picture.
To insert these protective foam blocks into place, you have to move the
channels. Move them gently by hand to the appropriate position and
insert the foam blocks between them.
If an iSWAP is present push it gently towards the rear, protect it with the
iSWAP protective block and tie it to the back.
Attention: Do not use adhesive tape to attach iSWAP to the back as this
may damage the paint on the pipetting arm housing.
