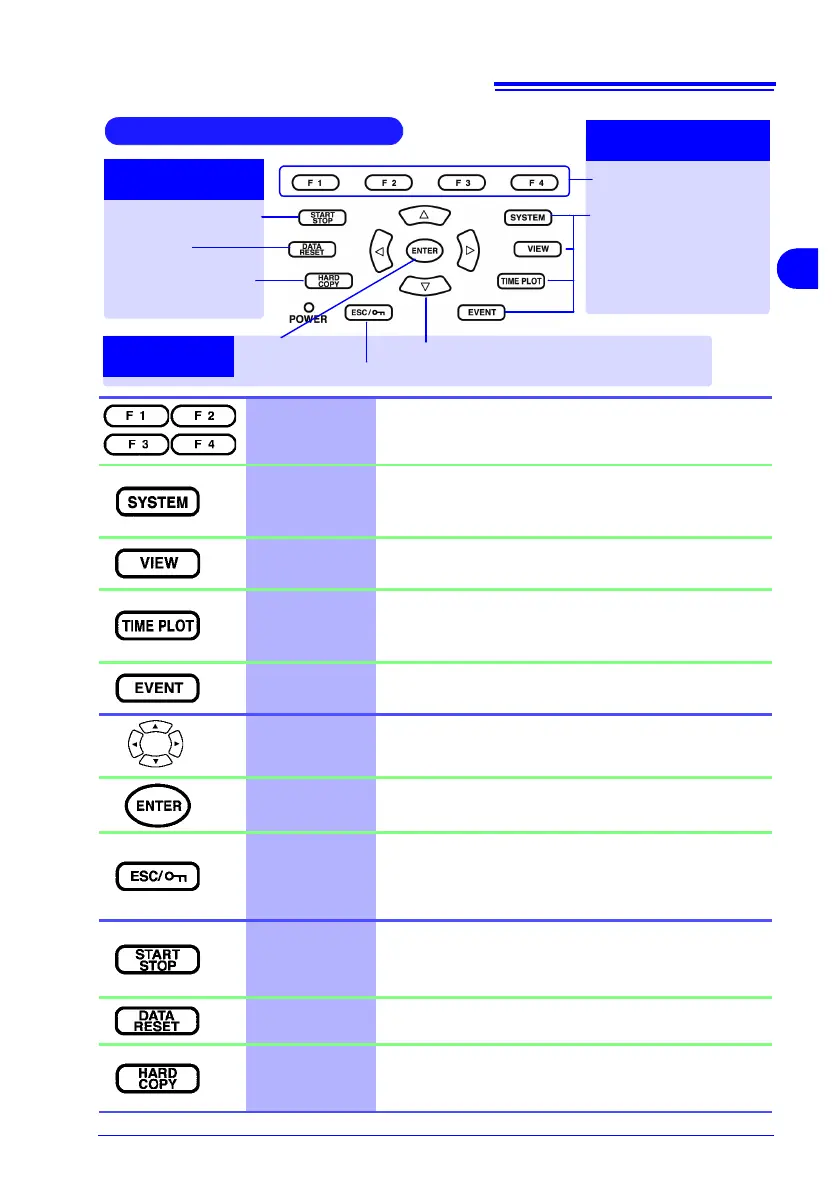

2.1 Panel and Operating Keys
25
2
Function keys
Selects from the functions displayed along the bot-
tom of the screen. Displayed functions depend on
the selected screen.
SYSTEM key
Displays the SYSTEM screen for setting instrument
m
easurement status and checking connections.
(p. 28)
VIEW key
Displays the VIEW screen to show measured data in
w
aveform, vector, harmonics or DMM views. (p. 29)
TIME PLOT key
Displays the TIME PLOT screen for analyzing mea-
surement data fluctuations as a time series plot.
(p. 30)
EVENT key
Displays the EVENT screen for analyzing data when
an eve
nt occurs. (p. 31)
Cursor keys
These keys move the cursor on the screen, and
scr
oll time series graphs.
ENTER key
Accepts and applies selections and changed set-
tings.
ESC / KEY
LOCK key
Cancels selections and changed settings and reverts
to the original settings.
KEY LOCK (disables the operating keys): hold for
three seconds to lock or unlock the keys.(p. 51)
START / STOP
key
Starts and stops recording (p. 33)
To restart recording: Press the
DATA RESET key to
clear the data, then press this key.
DATA RESET
key
Press this key to return to the [SET] state from the
[ANALYZE] state. (p. 34)
HARD COPY
(Screen shot)
key
Saves the screen image as a bitmap (BMP format)
f
ile in internal memory. (p. 52)
Operating Keys
Display screen selection
Operating Functions
Making Settings
Switch screens
The screen switches each
time you press a key
See: "2.3 Screen Configura-
tions"(p. 28)
Function selection
Start/stop recording
Data reset
Saving screen image
Accept settings
Cancel settings / Enable or Disable the key operations
Moving the screen cursor
