Hioki 7075 - Rear Panel

4
────────────────────────────────────────────────────

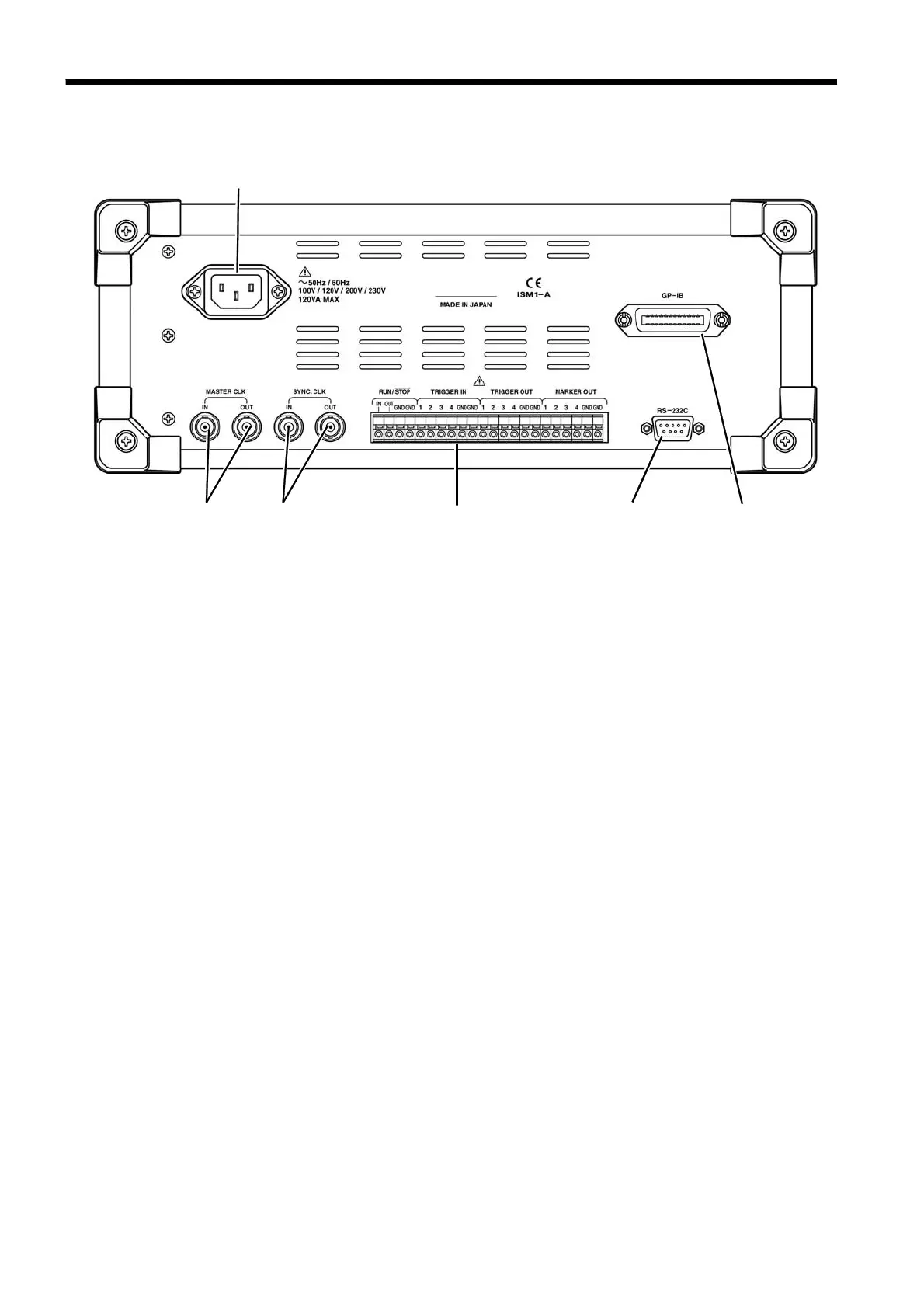

1.3 Names and Functions of Parts
────────────────────────────────────────────────────
1.3.2 Rear Panel
Power connecto
r
MASTER CLK
connectors
SYNC.CLK
connectors
External control I/F terminal RS-232C
connecto
r
GP-IB
connecto
r
Power connector
MASTER CLK connectors
SYNC.CLK connectors
External control I/F
terminals
RS-232C connector
GP-IB connector
Connect the supplied power cord.
These connectors link the master and slave units for
synchronized operation.
Trigger terminals for RUN/STOP control and sequence control
For details on each terminal, see Chapter 7.
9-pin connector for the RS-232C interface
24-pin connector for the GP-IB interface
