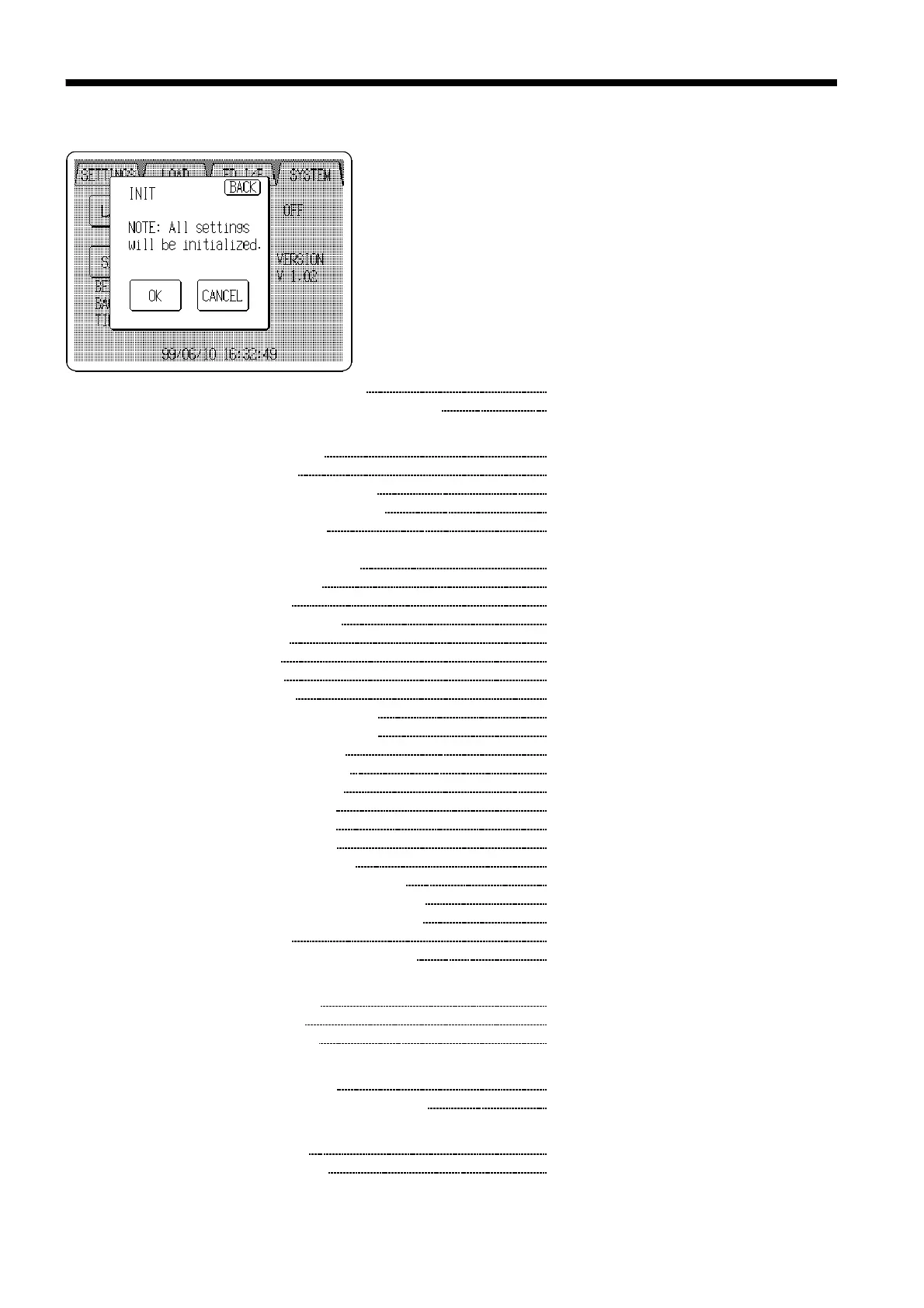

6.6 Initialization (INIT)
────────────────────────────────────────────────────
6.6 Initialization (INIT)
The unit is initialized with the following default settings.
Press the
OK
button.
RUN/STOP key STOP
CH1 to CH4 ON/OFF key
OFF
Output settings (applied to all channels)
Waveform
Sine wave
Sweep
OFF
Sweep waveform
Sine wave
Units of frequency
Hz
Frequency
1 kHz
Amplitude and offset/upper and lower limits Amplitude&offset
Voltage setting
Peak voltage
Amplitude
1V
Offset
0V
Phase angle
0 deg
Delay
0
Duty
50%
Filter
Pass
Range
10 V
Sweep frequency
1 kHz
Sweep amplitude
1V
Sweep offset
0V
Sweep phase
0 deg
Sweep delay
0
Sweep duty
50%
Sweep item
Frequency, amplitude, offset
Sweep data
None
Marker Output
OFF
Simultaneous setting
All OFF
Synchronized operation
OFF
Custom waveform data
None
BEEP
ON
LCD backlight auto-off
Auto off
RS-232C
Baud rate
9600 bps
Stop bit
1 bit
Hard flow
ON
Waveform input
Input model
8845/46
Reading GP-IB address
5
GP-IB
Address
15
Terminator
LF+EOI
To Next Page
