Hioki 7075 - Run;Stop out; Trigger out; Marker out

61
────────────────────────────────────────────────────

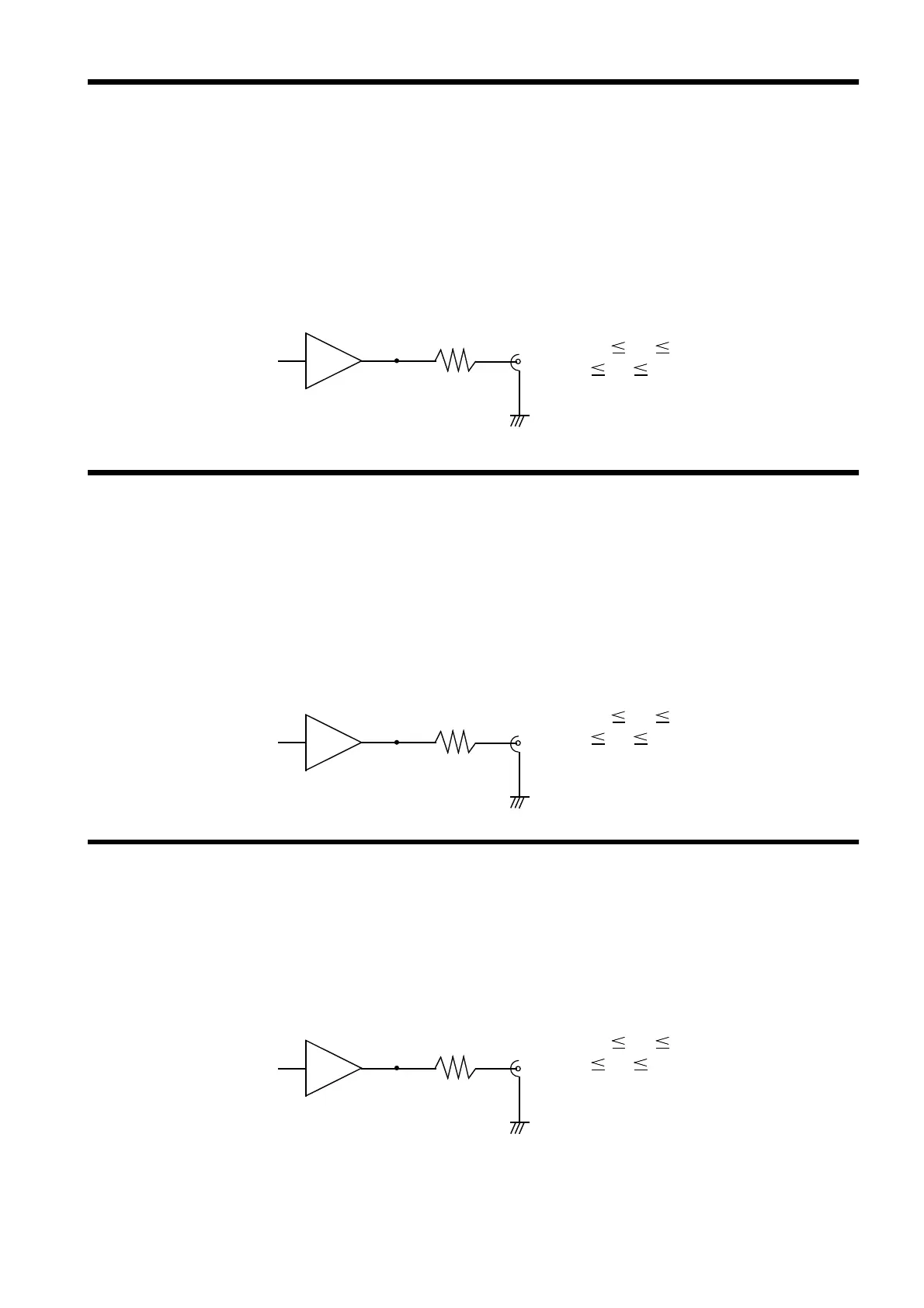

7.1 Output Terminals and Functions
────────────────────────────────────────────────────
7.1.3 RUN/STOP OUT
47 Ω
AC 245
7.1.4 TRIGGER OUT
47 Ω
AC 245
7.1.5 MARKER OUT
Approx. 100 Ω
AC 245 equivalent
(1) Function
Outputs the RUN/STOP state. (H: RUN/ L: STOP)
This output is high when either the
RUN/STOP
key or the RUN/STOP IN
input is in the RUN state.
(2) Output format
Logic level
(4.0 V V
H
5.0 V,
0V V
L
0.8 V,
with no loading)
Output impedance: 47 Ω
(1) Function
Outputs the trigger signal state.
This output is the logical sum of the front panel trigger key and the
TRIGGER IN input.
(2) Output format
Logic level
(4.0 V V
H
5.0 V,
0V V
L
0.8 V,
with no loading)
Output impedance: 47 Ω
(1) Function
Outputs the marker signal.
(2) Output format
Logic level
(4.0 V V
H
5.0 V,
0V V
L
0.8 V,
with no loading)
Output impedance: 100 Ω
