Using the A/B Cursors
1.14 Using the A/B Cursors
This section describes how to read values from the measured waveform using the A/B cursors. You
can also use the cursors to specify a range for saving data or performing numerical calculations.
Reading values from the waveforms
This section describes how to read measured values, times, and time di󰀨erences between cursors
using the A/B cursors.
When using the scaling function, post-scaling values are displayed.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
10
(1)
10
(2)
1

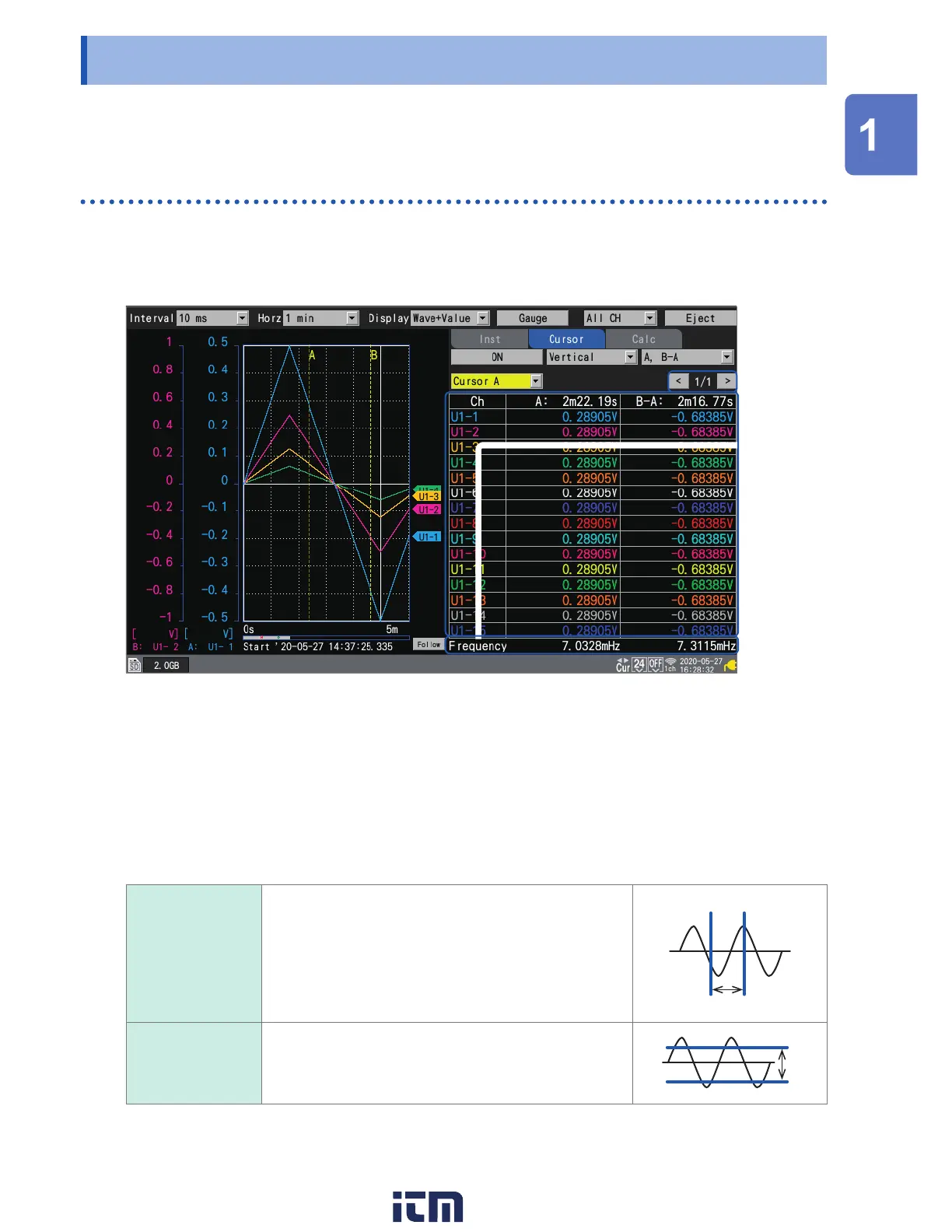

Under [Display], set the display to [Wave+Value].
2
Set the display item to [Cursor].
3
Select [ON] under the A/B cursor settings.
The A/B cursors will be displayed on the screen.
When the Cursor icon is displayed, pressing the any one of the SCROLL/CURSOR keys will
automatically change the setting to [ON] even with the A/B cursors set to [OFF].
4
Select the A/B cursor type.
Vertical Vertical axis cursors
• Times at the A/B cursors*
• Measured values at the intersections of the A/B
cursors and the waveform
• Time lag between the B and A cursors (B-A)*
• Di󰀨erence in measured values at the B and A cursors
(B-A)
A
A B
A
B
B-A
B-AB-A
B-A
B
Horizontal Horizontal axis cursors
• Measured values at the A and B cursors
• Di󰀨erence in measured values at the B and A cursors
(B-A)
A
A B
A
B
B-A
B-AB-A
B-A
B
*: The instrument expresses minute, a unit of time, included in cursor reading values in terms of the letter m
instead of min.
