Hioki LR8450 User Manual

260
Performing Remote Operation Using the HTTP Server
Remote version update
You can update the instrument and modules through a web browser.
When the instrument and modules need to be updated, Hioki will release the updating les and
version update procedure on the company’s website.
To update the instrument and modules remotely, download a compressed folder from the website
and extract it in advance.
Neither an SD Memory Card nor a USB Drive is required.
4
4
5
5
3
3
2
2
1

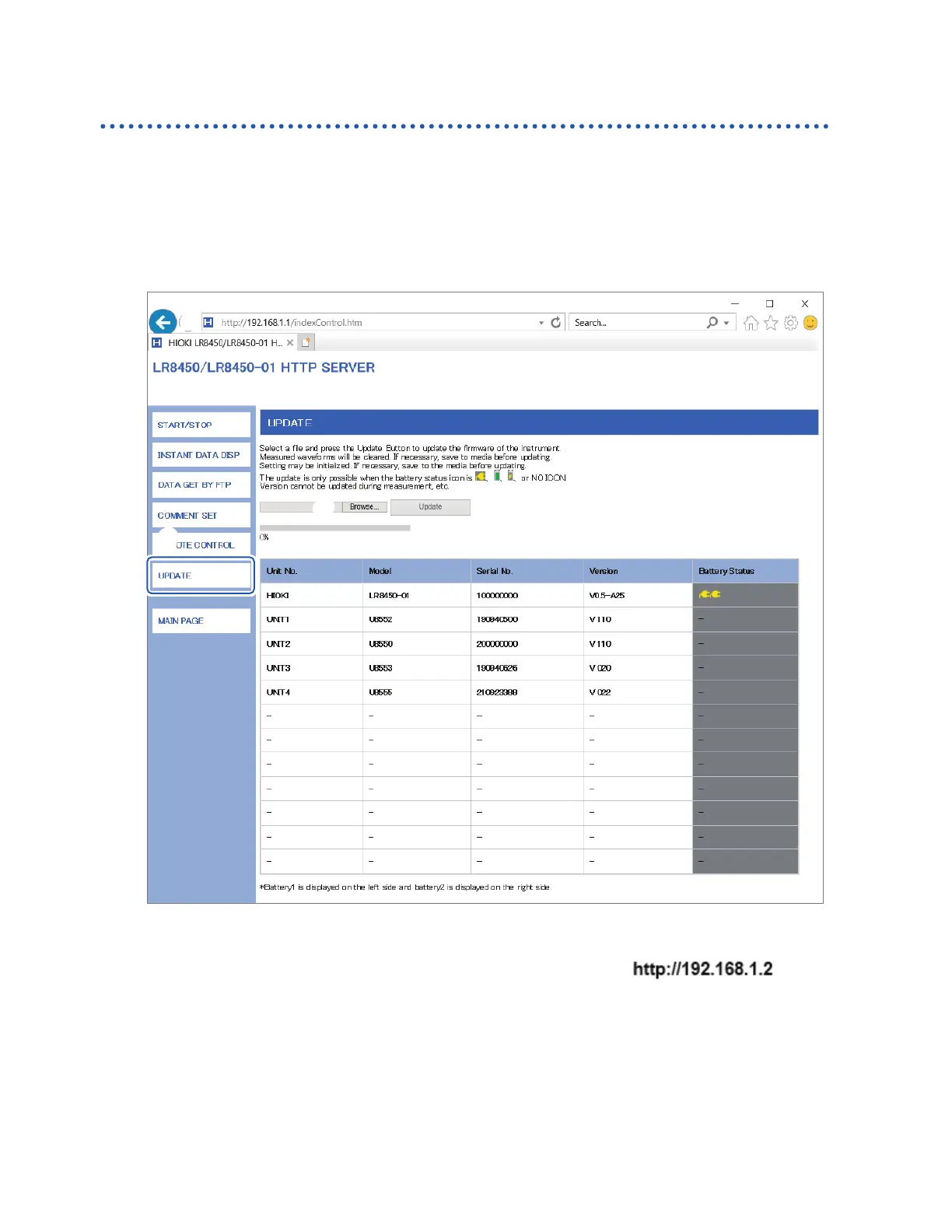

Launch Internet Explorer
®
on the computer.
2
Enter the instrument’s address into the address bar (for example, ).
3
Click [UPDATE].
4
Click [Browse...]. Select the update les you downloaded (The .UPG le and .PRG le is
used for the instrument and the modules, respectively).
5
Click [Update].
Executing the update of the instrument will automatically perform a restart, interrupting
communications.
For more information about cautions and an after-update checklist, see the procedure.
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki LR8450 Specifications

General

Model	LR8450
Category	Data Loggers
Dimensions	330 mm (12.99 in) W × 221 mm (8.70 in) H × 120 mm (4.72 in) D
Weight	Approx. 2.8 kg (excluding battery)
Operating Temperature	0 to 40 °C (32 to 104 °F), 80% RH or less (no condensation)
Sampling Rate	1 ms to 1 hr
Memory	Internal memory
Interface	USB, Ethernet
Power Supply	AC adapter or battery
Measurement Range	Varies with module
Accuracy	Varies with module
Storage Media	SD card
Memory Capacity	Internal memory
Input Type	Voltage, temperature
Temperature Measurement	Varies with module
Communication Interface	USB, Ethernet
Measurement Channels	Up to 120 channels (with optional input modules)
