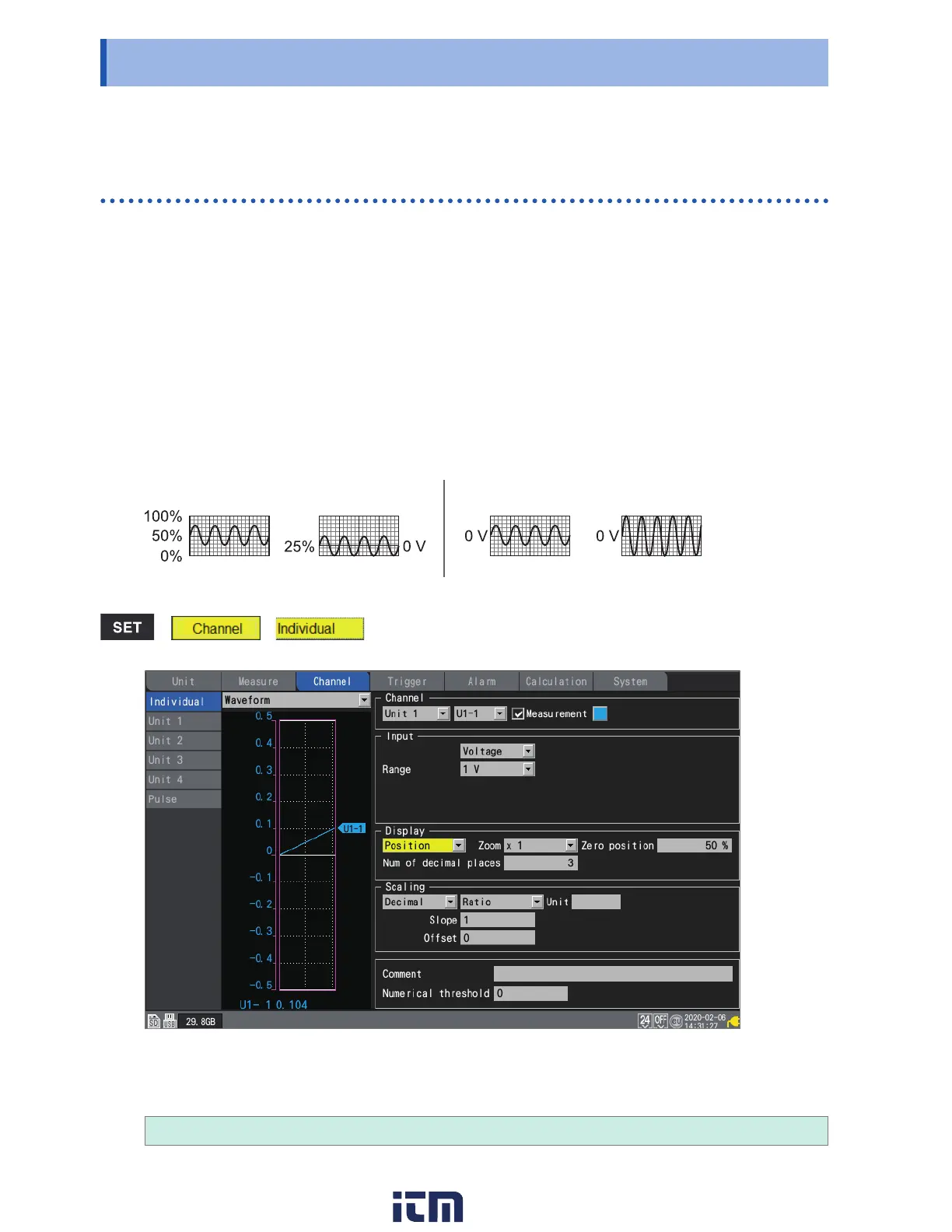

1.6 Conguring the Waveform Display
This section describes how to set how waveforms are displayed (display color, display position,
zoom factor, etc.).
Conguring the display of the vertical axis
This section describes how to congure the display in the vertical axis direction.
You can set the waveform display position and zoom factor for each channel on the individual
settings screen.
You can use [Display] on the settings list screen to congure the settings. (See p. 67.)
There are two methods for setting the display position:
• Setting the zoom factor and zero position
• Setting upper and lower limit values
Setting the zoom factor and zero position
Set the waveform display position by specifying the zoom factor and zero position (position of 0 V
that serves as the reference).
The zoom factor will be increased and decreased based on the zero position.
Zero position: 50% Zoom factor: 1×
When setting the display range with the zoom factor
(enlarge/shrink)
Vertical display range and 0 V display position
Zero position: 25% Zoom factor: 2×
>
>
1
1
2
2
3
3
4
4
1
Select [Position] in the display settings.
2
Under [Zoom], select the waveform display zoom factor.
×1/2, ×1

, ×2, ×5, ×10, ×20, ×50, ×100
When the zoom factor is [×1], the screen’s vertical axis display range will be the same as full scale.
