Hioki LR8450 User Manual

7
1

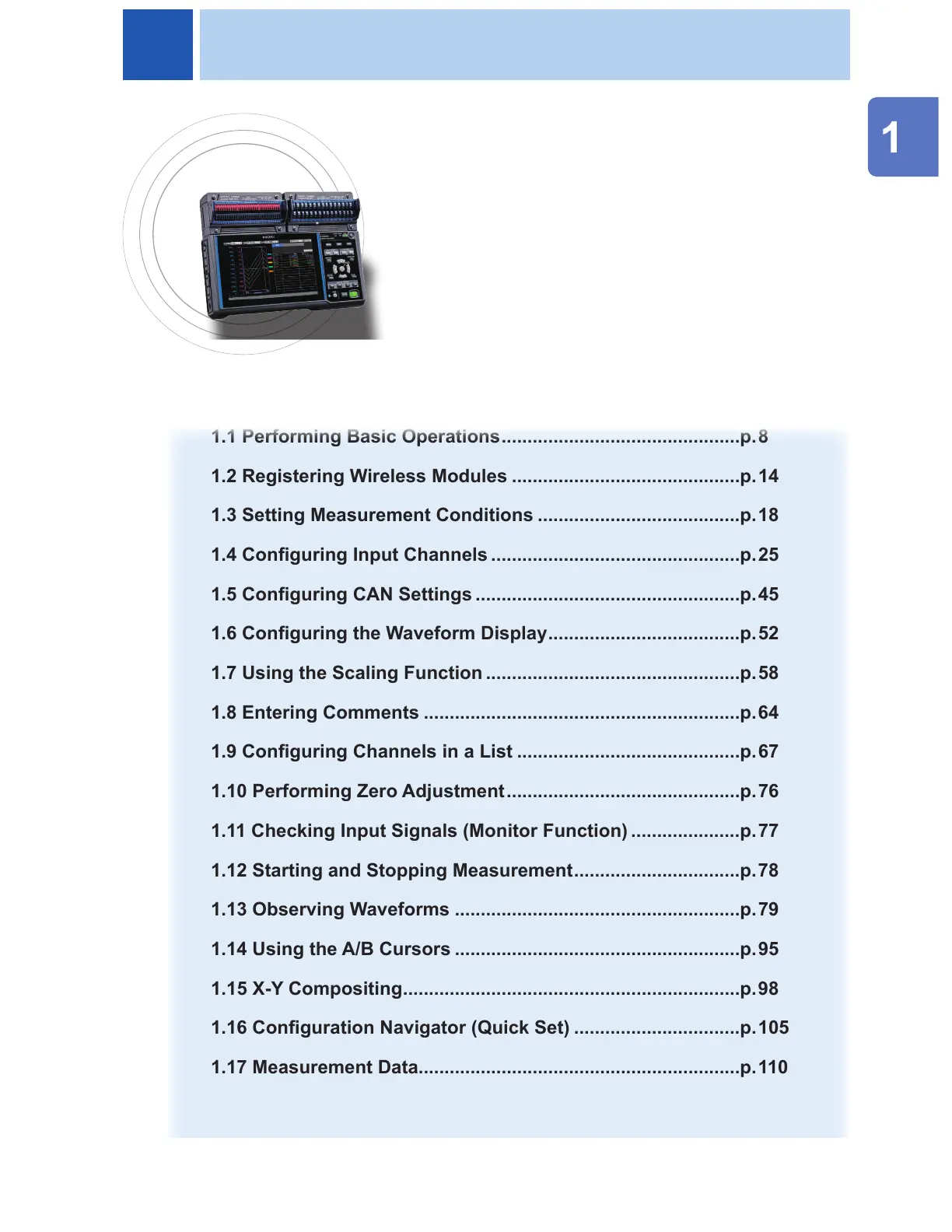

Settings and Operation
This chapter introduces basic settings and instrument
operation.
Before starting measurement, you must set measurement
conditions such as recording interval and range. You must
also congure input channel settings such as input signal
types and ranges.
1.1 Performing Basic Operations ..............................................p. 8
1.2 Registering Wireless Modules ............................................p. 14
1.3 Setting Measurement Conditions .......................................p. 18
1.4 Conguring Input Channels ................................................p. 25
1.5 Conguring CAN Settings ...................................................p. 45
1.6 Conguring the Waveform Display .....................................p. 52
1.7 Using the Scaling Function .................................................p. 58
1.8 Entering Comments .............................................................p. 64
1.9 Conguring Channels in a List ...........................................p. 67
1.10 Performing Zero Adjustment .............................................p. 76
1.11 Checking Input Signals (Monitor Function) .....................p. 77
1.12 Starting and Stopping Measurement ................................p. 78
1.13 Observing Waveforms .......................................................p. 79
1.14 Using the A/B Cursors .......................................................p. 95
1.15 X-Y Compositing .................................................................p. 98
1.16 Conguration Navigator (Quick Set) ................................p. 105
1.17 Measurement Data..............................................................p. 110
1 Settings and Operation
Settings and Operation
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki LR8450 Specifications

General

Model	LR8450
Category	Data Loggers
Dimensions	330 mm (12.99 in) W × 221 mm (8.70 in) H × 120 mm (4.72 in) D
Weight	Approx. 2.8 kg (excluding battery)
Operating Temperature	0 to 40 °C (32 to 104 °F), 80% RH or less (no condensation)
Sampling Rate	1 ms to 1 hr
Memory	Internal memory
Interface	USB, Ethernet
Power Supply	AC adapter or battery
Measurement Range	Varies with module
Accuracy	Varies with module
Storage Media	SD card
Memory Capacity	Internal memory
Input Type	Voltage, temperature
Temperature Measurement	Varies with module
Communication Interface	USB, Ethernet
Measurement Channels	Up to 120 channels (with optional input modules)
