Hioki LR8450 User Manual

139
Formatting Media
3.2 Formatting Media
Before using an SD Memory Card or a USB Drive for the rst time, format the media.
1
Press the FILE key.

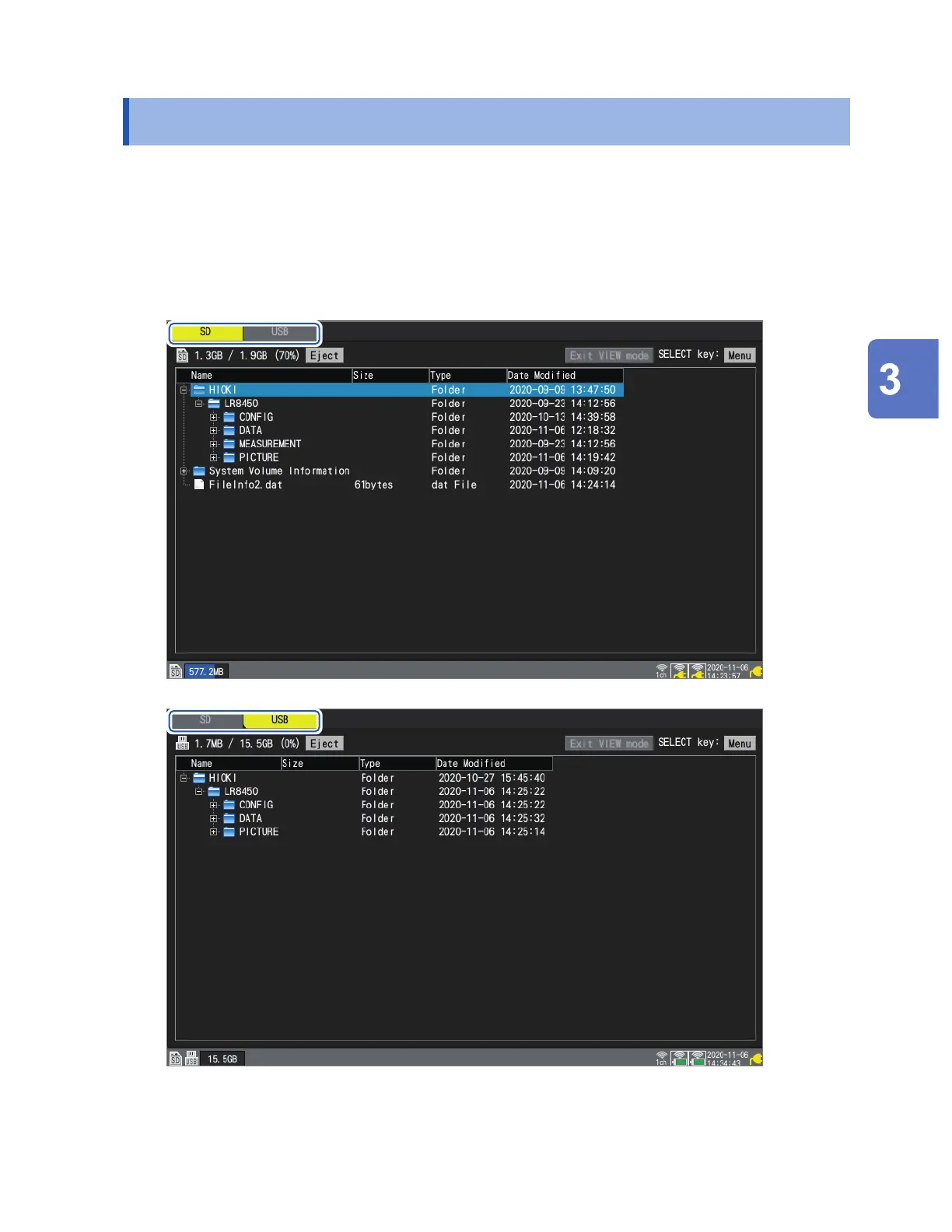

The le list screen on the SD Memory Card or USB Drive will be displayed.
2
Press the FILE key to select the media to be formatted.
Each time you press the FILE key, the display will switch between the SD Memory Card and the
USB Drive.
Saving and Loading Data
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki LR8450 Specifications

General

Model	LR8450
Category	Data Loggers
Dimensions	330 mm (12.99 in) W × 221 mm (8.70 in) H × 120 mm (4.72 in) D
Weight	Approx. 2.8 kg (excluding battery)
Operating Temperature	0 to 40 °C (32 to 104 °F), 80% RH or less (no condensation)
Sampling Rate	1 ms to 1 hr
Memory	Internal memory
Interface	USB, Ethernet
Power Supply	AC adapter or battery
Measurement Range	Varies with module
Accuracy	Varies with module
Storage Media	SD card
Memory Capacity	Internal memory
Input Type	Voltage, temperature
Temperature Measurement	Varies with module
Communication Interface	USB, Ethernet
Measurement Channels	Up to 120 channels (with optional input modules)
