Hioki LR8450 - Measuring Strain

36

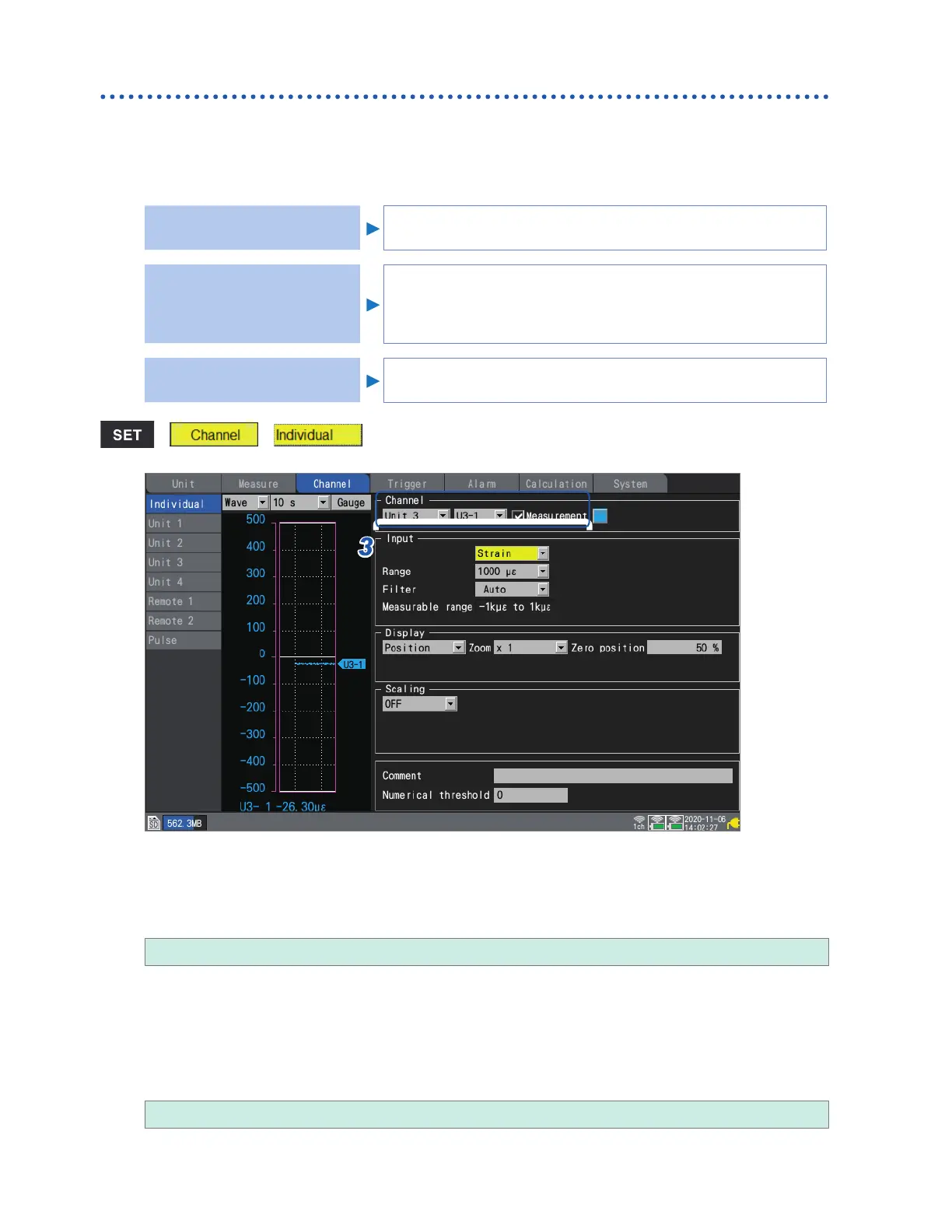

Conguring Input Channels
Measuring strain
This section describes how to congure settings on the individual settings screen when measuring
strain or vibration with a strain gage or strain gage-type converter.
You can use [Input] on the settings list screen to congure the settings. (See p. 67.)
Applicable modules: U8554, LR8534
Measuring strain
See “11.2 Measuring Strain” (p. 374).
Converting measured values
using scaling based on the
gage factor or a strain gage-
type converter’s rated value
See “1.7 Using the Scaling Function” (p. 58).
Connecting a strain gage or
strain gage-type converter
See “Connecting a strain gage or converter” in the Quick Start
Manual.
> >
3
3
1
1
4
4
5
5
2
2
1
Select the module (Unit) and channel to congure and select the check box.
Measurement will not be performed for channels whose check boxes are not selected.
2
Select the waveform display color.
× (OFF), 24 colors
Select [×] if you wish to measure the channel but not to display its waveform or numerical values on the
screen.
3
Set the input type to [Strain].
4
Under [Range], select the measurement range as appropriate for the measurement target.
The measurable range of the selected range will be displayed.
1000 µε

, 2000 µε, 5000 µε, 10000 µε, 20000 µε, 50000 µε, 100000 µε, 200000 µε
The instrument expresses strain in terms of micro epsilon (μ
ε
).
