Hioki LR8450 - Observing Waveforms

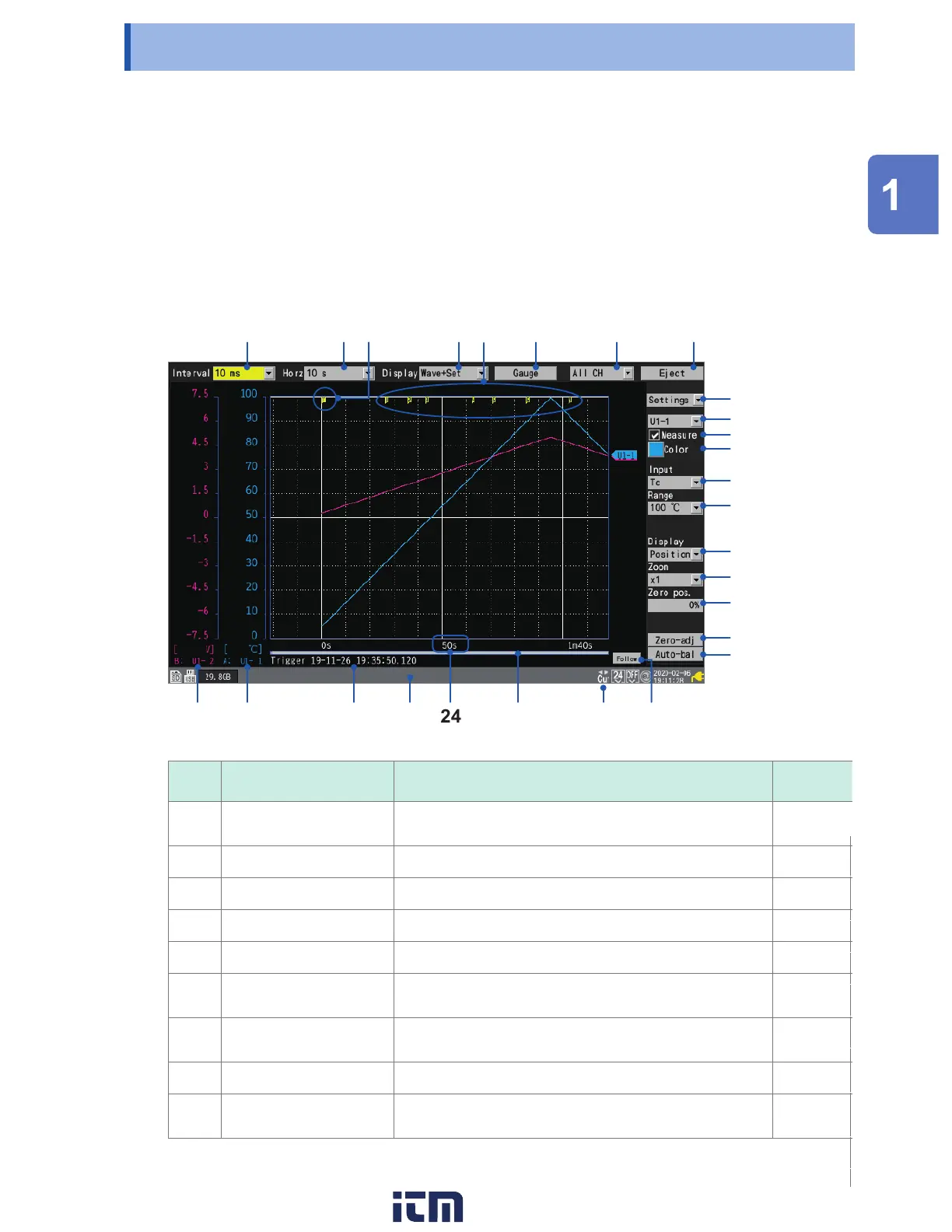

1.13 Observing Waveforms
Press the WAVE key to display the waveform screen. The waveform screen is displayed at all times
while measurement is in progress.
The screen provides the following functionality:
• Moving (scrolling) waveforms
• Moving waveforms while measurement is in progress (to check past waveform data)
• Enlarging and shrinking waveforms
• Reading values from waveforms with the A/B cursors
• Displaying a gage (scale) on the left side of the screen
• Displaying comments on the right side of the screen
• Conrming the system congurations during measurement (by pressing the SET key).
1
1
2
2
4
4
3
3
6
6
7
7
9
9
10
10
11
11
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
24
24
25
25
26
26
5
5
12
12
8
8
27
27
23
23
No. Name Description
Reference
page
1
1
Recording interval Allows you to select the interval at which the instrument
captures data from the measurement module.
p. 20
2
2
Horizontal axis Allows you to select the horizontal axis (time per division). p. 56
3
3
Trigger mark Indicates the trigger points. p. 113
4
4
Screen Allows you to select the waveform display method. p. 81
5
5
Event mark Displays the event number. p. 186
6
6
Gage Allows you to congure the gage (scale) displayed on the
left side of the screen.
p. 85
7
7
Display selection Allows you to select the waveforms displayed on the
screen (sheet).
–
8
8
Eject Allows you to eject external media. p. 148
9
9
Setting selection Allows you to select the settings displayed on the right side
of the screen.
–
Settings and Operation
HIOKI LR8450A964-03
