Data Handling During Communications Disruption
1010 10099989796954321
1010 10010099989754321 96
Disruption Connection
Instrument
Wireless module
Triggers
If communications are disrupted, the instrument cannot acquire data from wireless modules. In that
case, the instrument will not check whether the trigger conditions are satised for the channels of
such modules.
After the communications recover, the system will recover data and check whether the trigger
conditions are satised.
Data points acquired after the point when the stop trigger condition was satised will be regarded
as NO DATA.
The pre-trigger function will be disabled for data recovered after communications recovered.

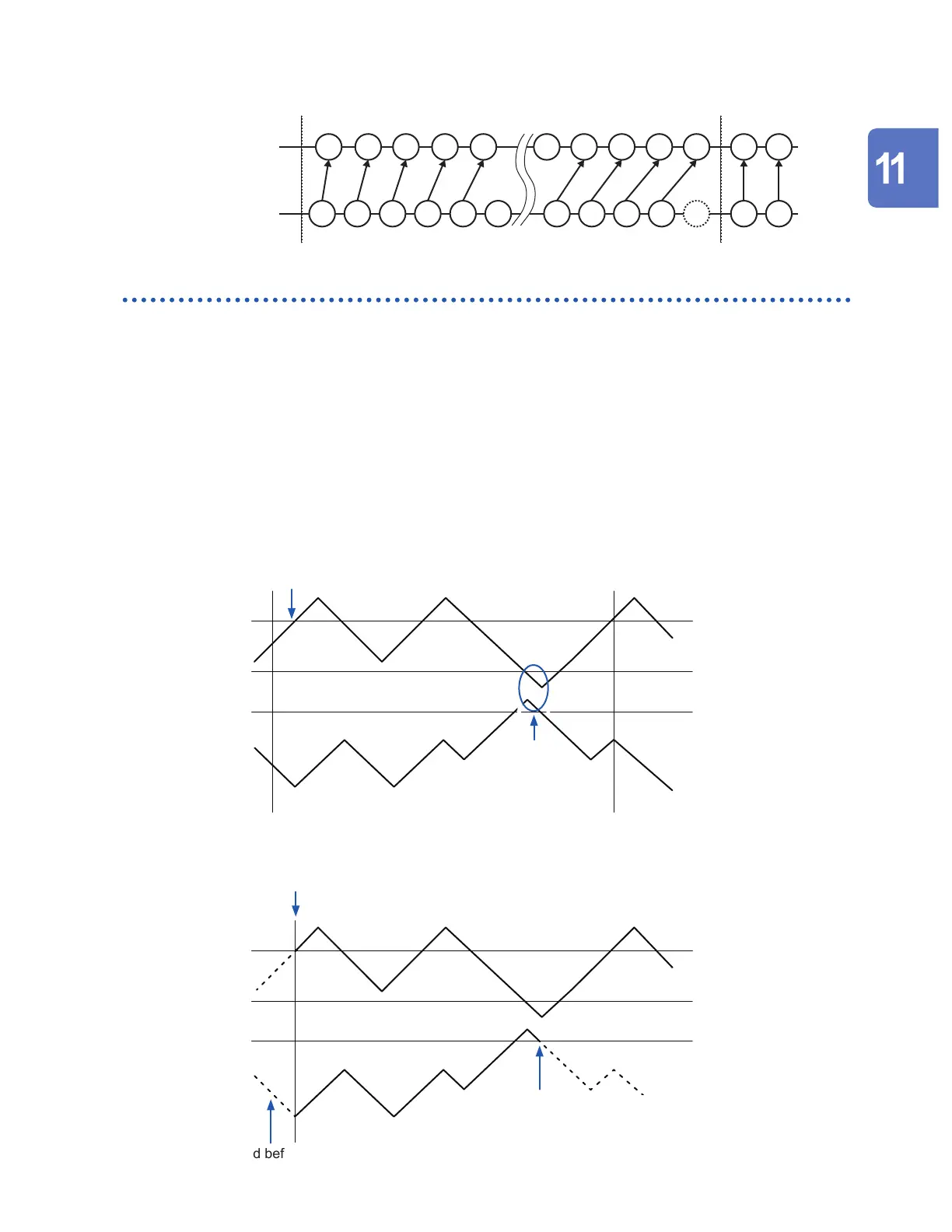

Example: stop trigger (slope: [↑], trigger condition: [AND])
Module 1
Module 2
Start trigger
1
1
2
2
3
3
4
4
Stop trigger
Data acquired after the stop trigger is regarded as
the NO DATA points.
Data acquired before the start trigger is not saved.
Module 1
ConnectionDisruption
Module 2
Start trigger [↑], [OR]
Stop trigger [↓], [AND]
Stop trigger [↓], [AND]
Stop trigger
Start trigger
Start trigger [↑], [OR]
Stop trigger [↓], [AND]
Stop trigger [↓], [AND]
Data in the instrument
Data in the module.
