Hioki LR8450 User Manual

101
X-Y Compositing
Conguring X-Y compositing
2
2
3
3
4, 5, 6
4, 5, 6
Comments
for each
channel will be
displayed.
1

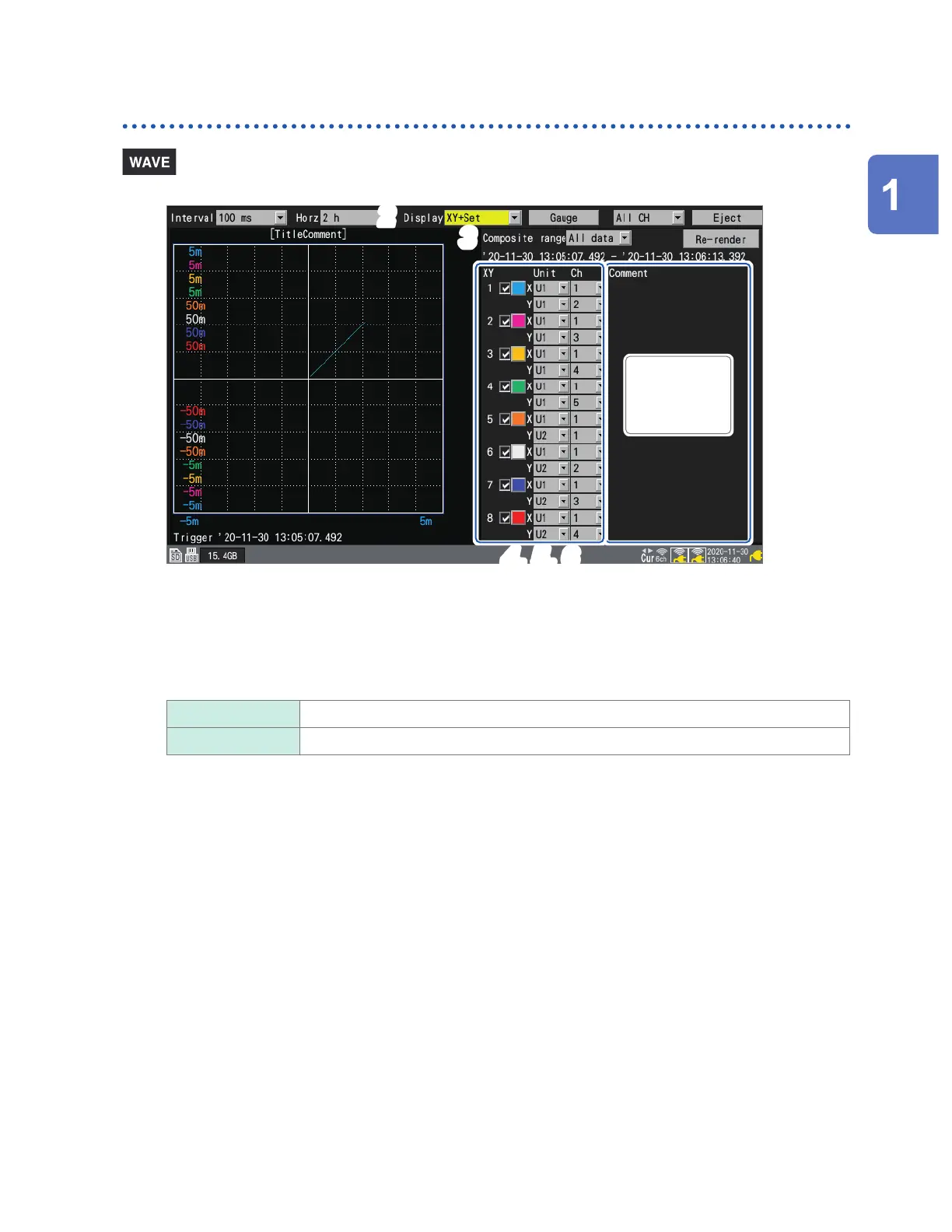

Enable the X-Y compositing function on the settings screen (p. 98).
2
Under [Display], set the display to [XY+Set].
3
Under [Composite range], select the X-Y compositing range.
The [A-B] setting lets you specify the range using the A and B cursors.
All data

Composites the waveforms in their entirety.
A-B Composites the waveforms between the A and B cursors.
During the X-Y composing process, the compositing range will be displayed. When you select the [A-B]
composite-range setting, the A and B cursors’ positions will be displayed.
4
Select the check boxes for the channels for which you wish to perform X-Y compositing.
5
Select the display colors for the X-Y composite waveforms that will be shown on the graph.
6
Select the X- and Y-axis channels for the X-Y composite.
Select units and channels.
Supported channels: Analog, pulse (except logic), waveform calculation, and CAN.
If an X-Y composite waveform already exists, settings changes will not be applied to the waveform
immediately.
Setting changes will be applied when you select [Re-render].
