Observing Waveforms
Numerical value display
This section describes how to select the numerical value display method.

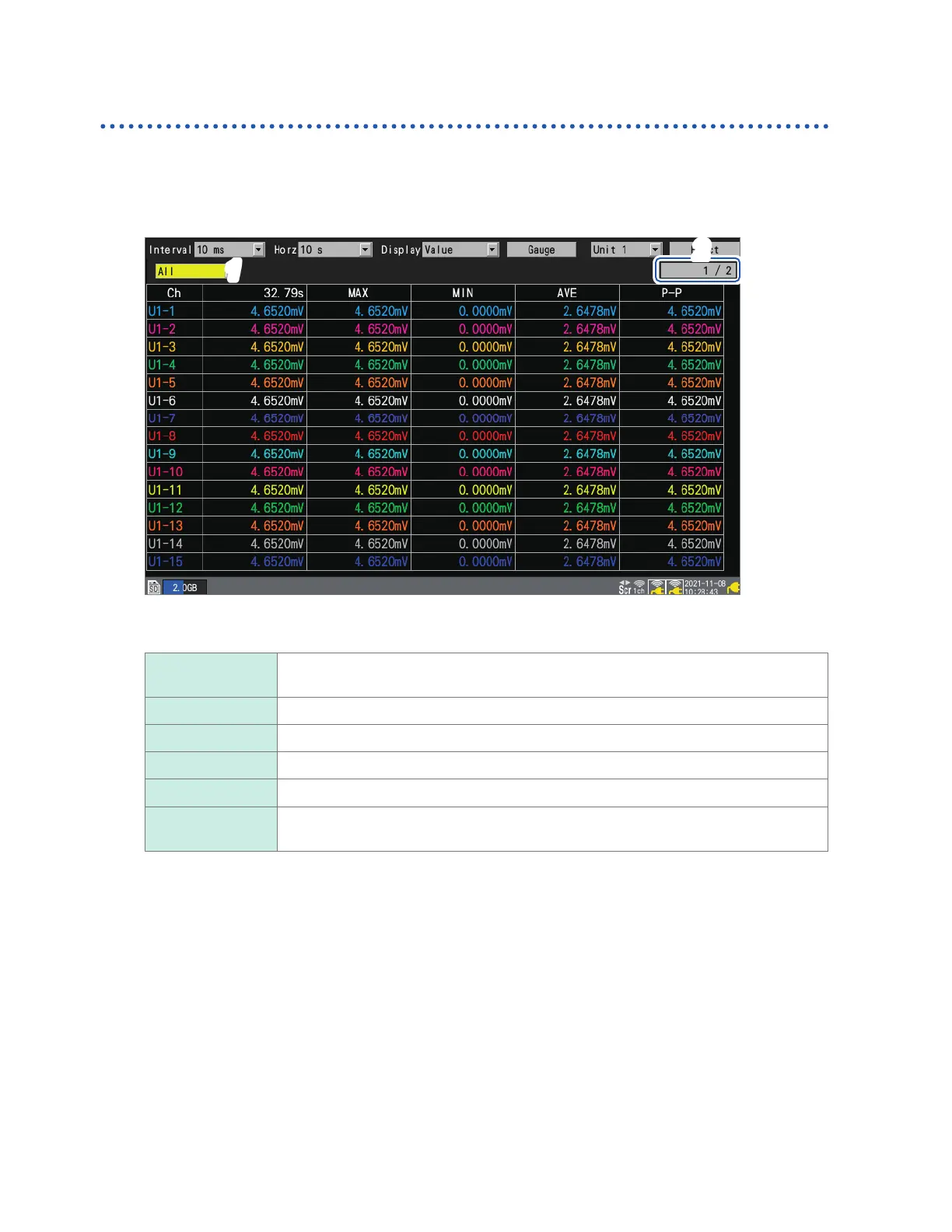

[Value] screen
This screen displays only numerical values.
1
1
2
2
1
Select the value to display.
All Instantaneous values, maximum values, minimum values, average values, and peak-
to-peak values
Instant Most recent measured value (INST)
Maximum* Maximum value (MAX) from the start of measurement to the current time
Minimum* Minimum value (MIN) from the start of measurement to the current time
Average* Average value (AVE) from the start of measurement to the current time
P-P* Di󰀨erence between maximum and minimum value (peak-to-peak value) from the start
of measurement to the current time
You can also select the value with the SELECT key.
To choose a setting other than [All], press and hold the SELECT key to display comments.
*: Does not apply to CAN channels.
2
Change the channel to display (as necessary) using the button on the top right of the screen
(example: [1/2]).
