Hioki LR8450 User Manual

258

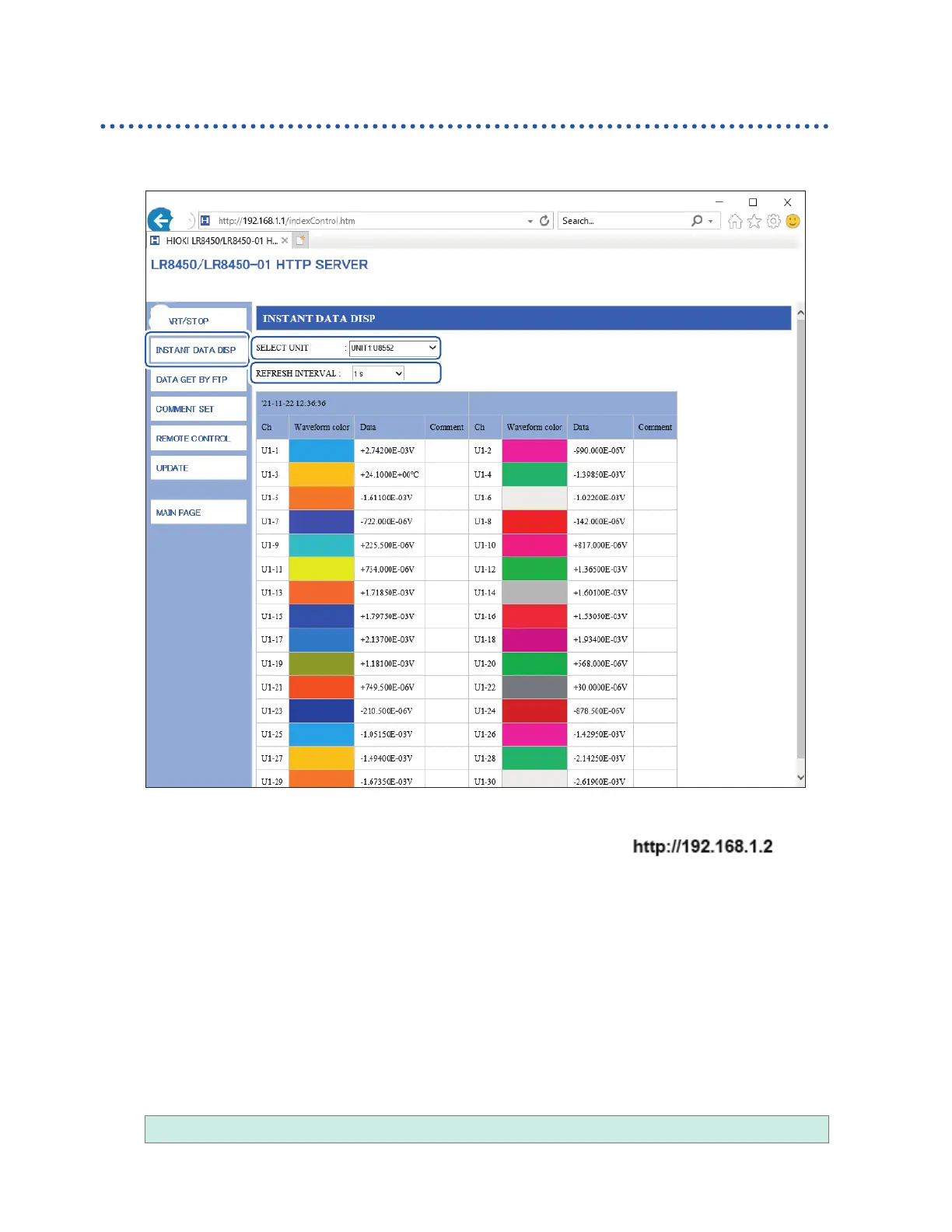

Performing Remote Operation Using the HTTP Server
Displaying measured values
You can check current measured values in a browser.
3
3
2
2
4
4
5
5
1
Launch Internet Explorer
®
on the computer.
2
Enter the instrument’s address into the address bar (for example, )
3
Click [INSTANT DATA DISP].
Current measured values will be displayed.
4
Under [SELECT UNIT], select the unit whose values you wish to display.
Measured values for each of the selected unit’s channels will be displayed.
• Depending on communications conditions, it may take 2 to 3 s to acquire data.
• Values are not shown for channels whose display has been disabled.
• When measurement is stopped, the instantaneous data being input to each channel will be
displayed.
5
Under [REFRESH INTERVAL], set the refresh time for the screen.
OFF

, 1 s, 5 s, 10 s, 30 s
HIOKI LR8450A964-03
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Hioki LR8450 Specifications

General

Model	LR8450
Category	Data Loggers
Dimensions	330 mm (12.99 in) W × 221 mm (8.70 in) H × 120 mm (4.72 in) D
Weight	Approx. 2.8 kg (excluding battery)
Operating Temperature	0 to 40 °C (32 to 104 °F), 80% RH or less (no condensation)
Sampling Rate	1 ms to 1 hr
Memory	Internal memory
Interface	USB, Ethernet
Power Supply	AC adapter or battery
Measurement Range	Varies with module
Accuracy	Varies with module
Storage Media	SD card
Memory Capacity	Internal memory
Input Type	Voltage, temperature
Temperature Measurement	Varies with module
Communication Interface	USB, Ethernet
Measurement Channels	Up to 120 channels (with optional input modules)
