Performing Waveform Calculations
Conguring calculations on the calculation list screen
This section describes how to review waveform calculation settings on the calculation list screen.
It also describes how to congure settings on the screen.
> >

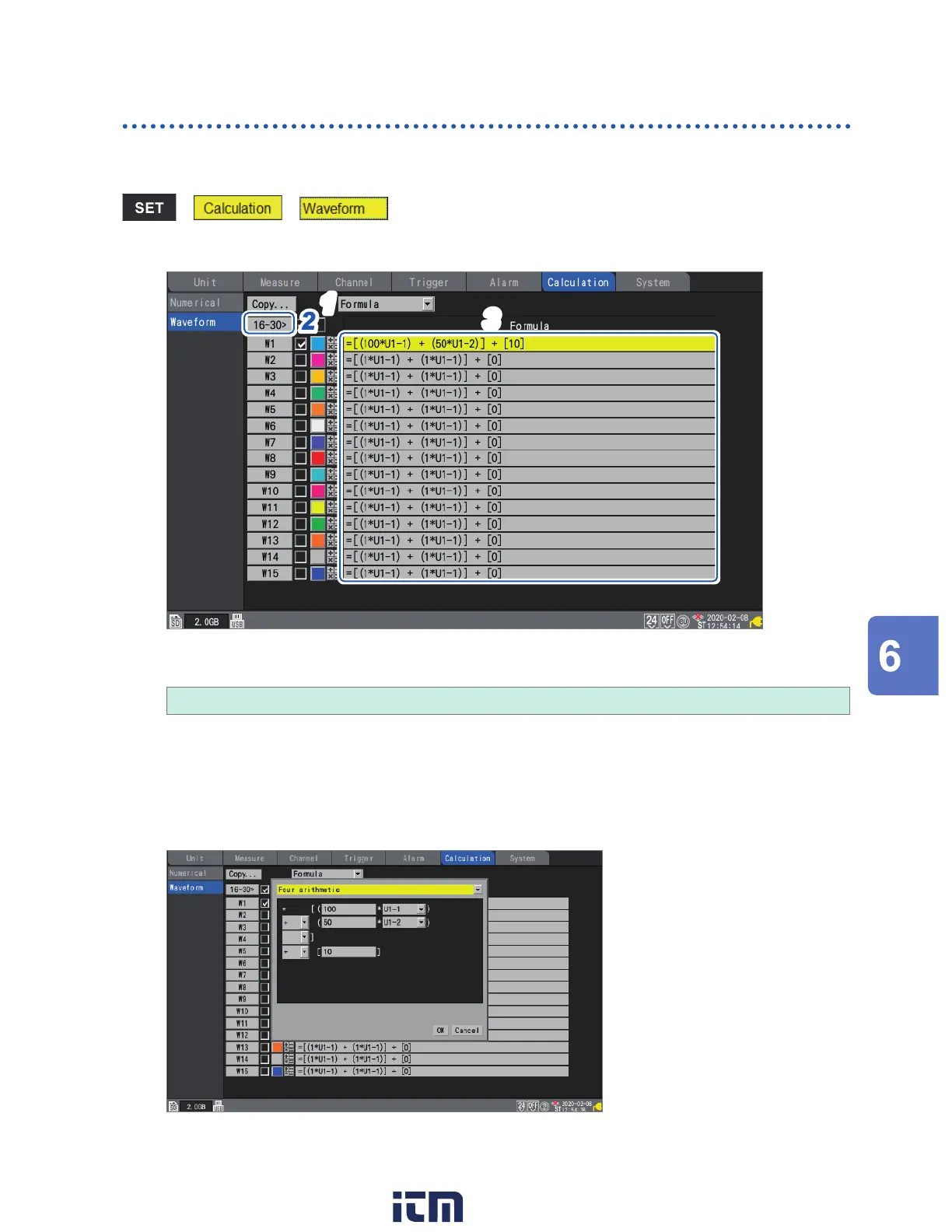

Calculation list screen: [Formula]
3
3
2
2
1
1
1
Set the display item to [Formula].
Formula

, Display, Comment, Numerical calc
2
You can cycle through the calculation channel to display.
• Press the ENTER key while [16-30>] is selected to display W16 to W30.
• Press the ENTER key while [1-15>] is selected to display W1 to W15.
3
Press the ENTER key while [Formula] is selected.
The waveform calculation entry window will open.
Continue with the procedure described in p. 204.
