Hioki LR8450 User Manual

336

U8555 CAN Unit
1. General specications
Compatible logger LR8450/LR8450-01 Memory HiLogger
Operating
environment
Indoor use, pollution degree 2, altitude up to 2000 m (6562 ft.)
Operating
temperature and
humidity range

Storage temperature
and humidity range

Standards Safety: EN 61010
EMC: EN 61326
Vibration resistance 
Class 1: Passenger vehicles; conditions: Class A equivalent
(4 h along X-axis and 2 h along Y- and Z-axes at a vibration acceleration of 45 m/s
2

Dimensions 
parts)
Weight Approx. 235 g (8.3 oz.)
Product warranty
duration
3 years
Accessories Instruction Manual
Installation screws ×2
Options 

2. Input, output, and measurement specications
-1. Basic specications

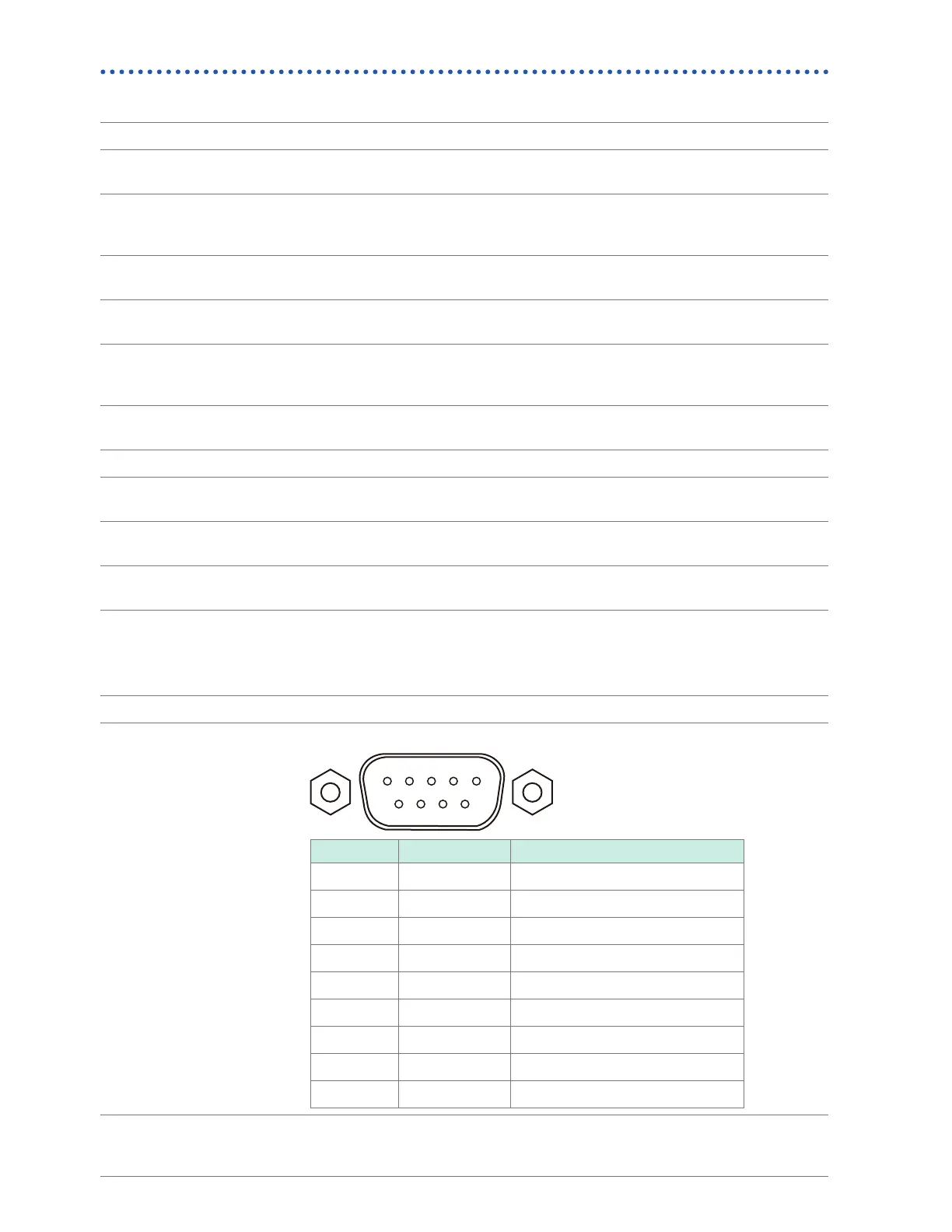

Number of CAN ports 2 ports
Input terminals 
1 2 3 4
6 7 8 9
5
Pin Assignment Functionality
1 N.C. Unused
2 CAN_L CAN_L communications line
3 GND Ground
4 N.C. Unused
5 N.C. Unused
6 N.C. Unused
7 CAN_H CAN_H communications line
8 N.C. Unused
 N.C. Unused
Interface CAN


