Conguring the Waveform Display
Other display settings
This section describes how to change the display’s zoom factor in the horizontal axis direction.
This feature allows you to view ne-grained changes by enlarging the waveform or check the
overall state by shrinking the waveform.
You can congure the horizontal axis display and set the method used to display vertical axis
values.
> >
2
2
3
3
1
1
1

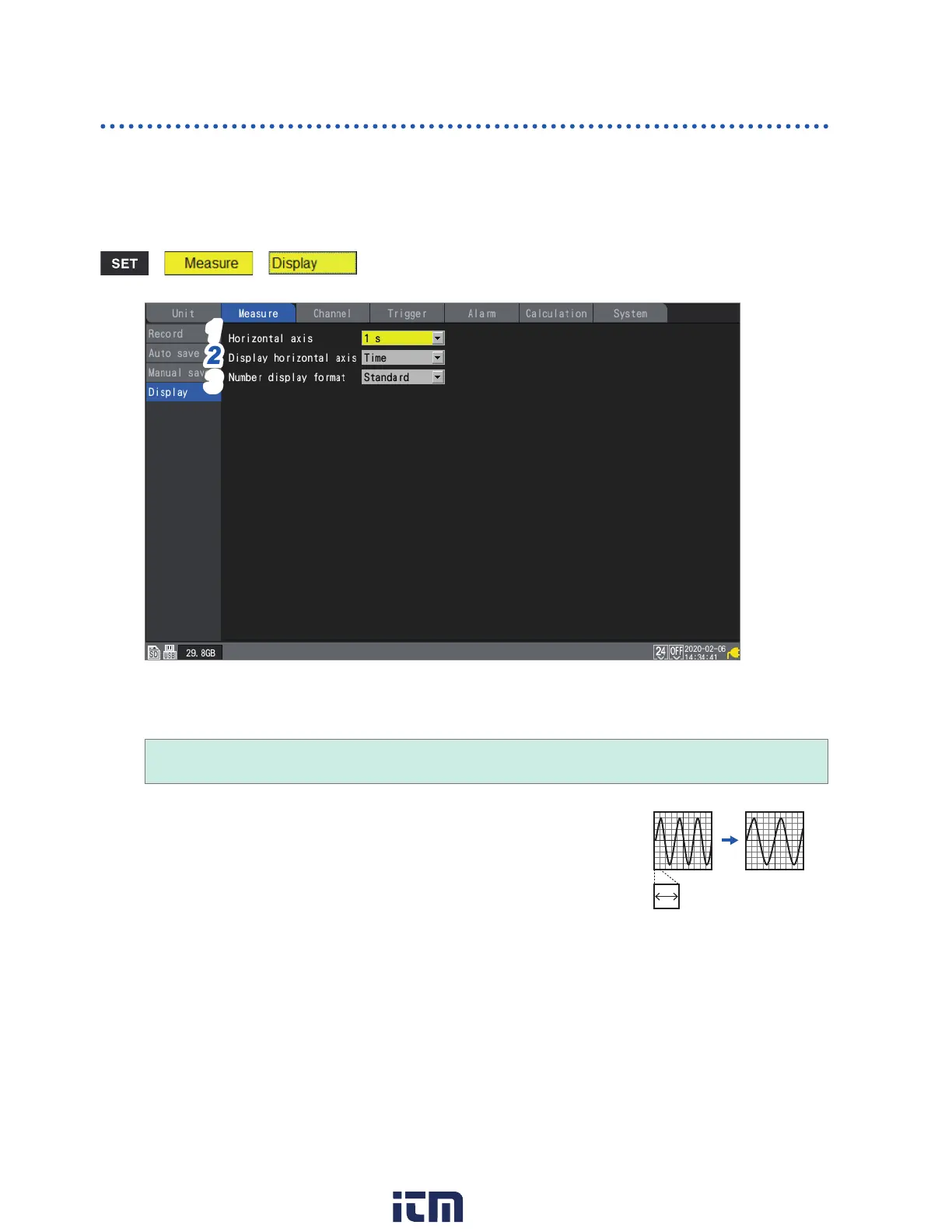

Under [Horizontal axis], select the time per division.
You can select any time settings longer than the recording interval.
2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s

, 20 s, 30 s,
1 min, 2 min, 5 min, 10 min, 20 min, 30 min, 1 h, 2 h, 5 h, 10 h, 12 h, 1 d
1 division
Setting a shorter time enlarges the waveform.
Setting a longer time shrinks the waveform.
Since the time assigned to 1 division is a display setting, the recording
interval and data refresh interval are una󰀨ected.
Restrictions during measurement
During measurement, the time per division setting has the upper limit according to the recording
interval.
• Recording interval of 1 ms to 5 ms: Settings up to 10 min. will be available.
If you start measurement after selecting a setting of 20 min. or greater, the setting will be changed
to 10 min.
• Recording interval of 10 ms to 50 ms: Settings up to 1 h will be available.
If you start measurement after selecting a setting of 2 h or greater, the setting will be changed to
1 h.
• Recording interval of 100 ms to 500 ms: Settings up to 10 h will be available.
If you start measurement after selecting a setting of 12 h or greater, the setting will be changed to
10 h.
