Hioki LR8450 - Trigger Output

230
Conguring External Input/Output (I/O) Terminals
Trigger output
This section describes how to output a low-level signal when a trigger activates.
You can use this capability to notify another device that the instrument has started recording.
The external output I/O 4 terminal is used for this functionality.
> >
1
1
1

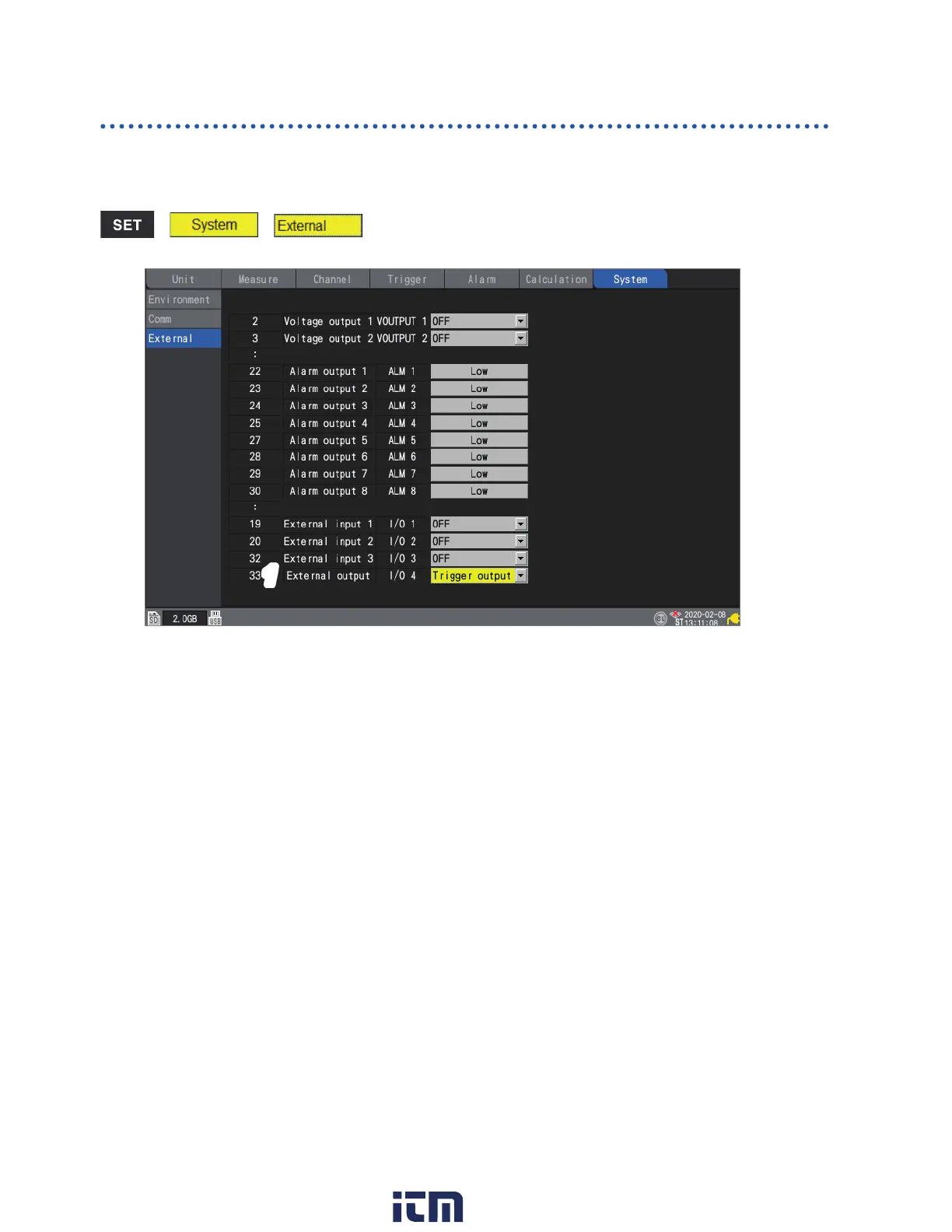

Under [External output], set the terminal functionality to [Trigger output].
A low-level signal will be output when a trigger activates.
