Hioki LR8450 - Partial Numerical Calculations

199
Performing Numerical Calculations
Partial numerical calculations

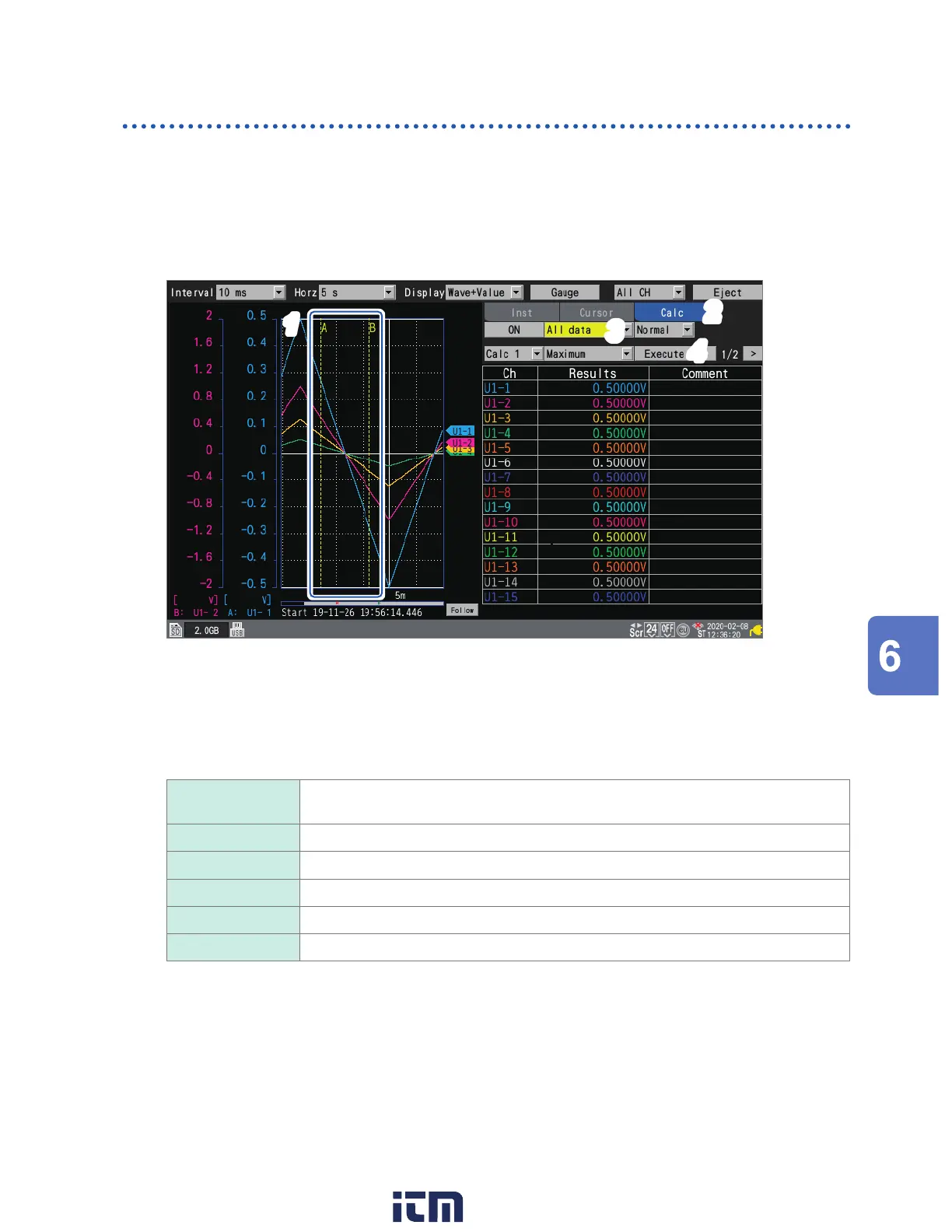

If performing manual calculations, you can specify the range over which to perform the calculation.
The numerical calculation will be performed after the range has been specied with the A/B cursors
(vertical).
1
Specify the range with the A/B cursors.
For information about how to specify the range, see “Specifying a waveform range” (p. 97)
1
1
2
2
3
3
4
4
2
Set the numerical display on the right side of the screen to [Calc].
The numerical calculation’s settings will be displayed.
3
Select the range over which to perform the calculation.
All

Performs the calculation using the waveforms for the entire recorded length, without
regard to the A/B cursors.
A-B Performs the calculation using the waveforms between the A and B cursors.
Start-A Performs the calculation using the waveforms from the beginning to the A cursor.
Start-B Performs the calculation using the waveforms from the beginning to the B cursor.
A-End Performs the calculation using the waveforms from the A cursor to the end.
B-End Performs the calculation using the waveforms from the B cursor to the end.
4
Press the ENTER key while [Execute] is selected.
The numerical calculation will be performed over the range specied in step 3.
Numerical and Waveform Calculations
HIOKI LR8450A964-03
