Conguration Navigator (Quick Set)
Strain gage connection guide

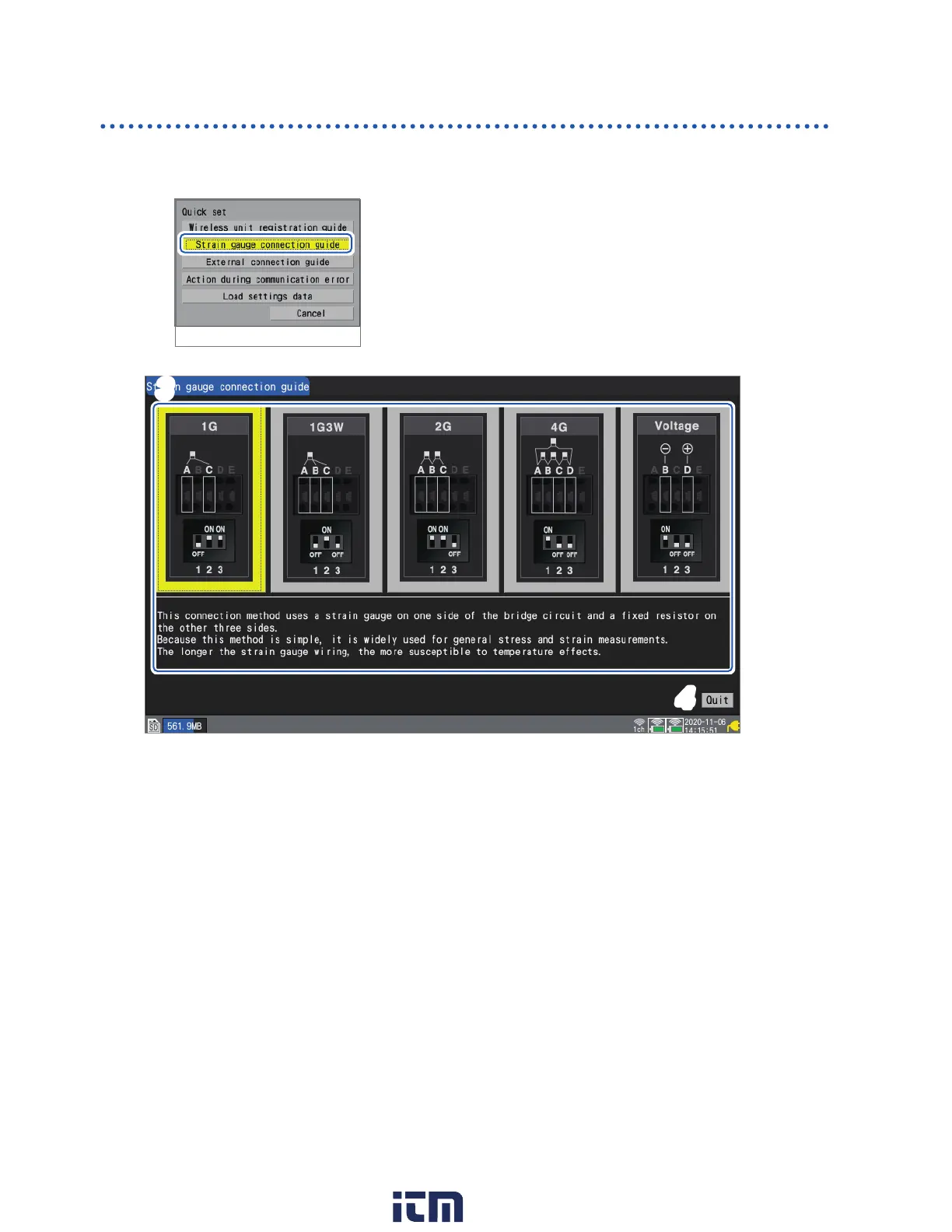

This section describes how to display the connection diagram for strain gages and the DIP switch
congurations.
1
1
1
Select [Strain gauge connection guide].
2
Press the ENTER key.
A strain gage connection guide will be displayed.
4
4
3
3
3
Select the connection method with the Right Arrow and Left Arrow keys.
An explanation for the selected connection method will be displayed.
4
Press the ENTER key while [Quit] is selected.
The guide screen will close.
