X-Y Compositing
Using the horizontal and vertical cursors to check values
1
1
2
2
3
3
4
4
5
5
6
6
7
7
9
9
1

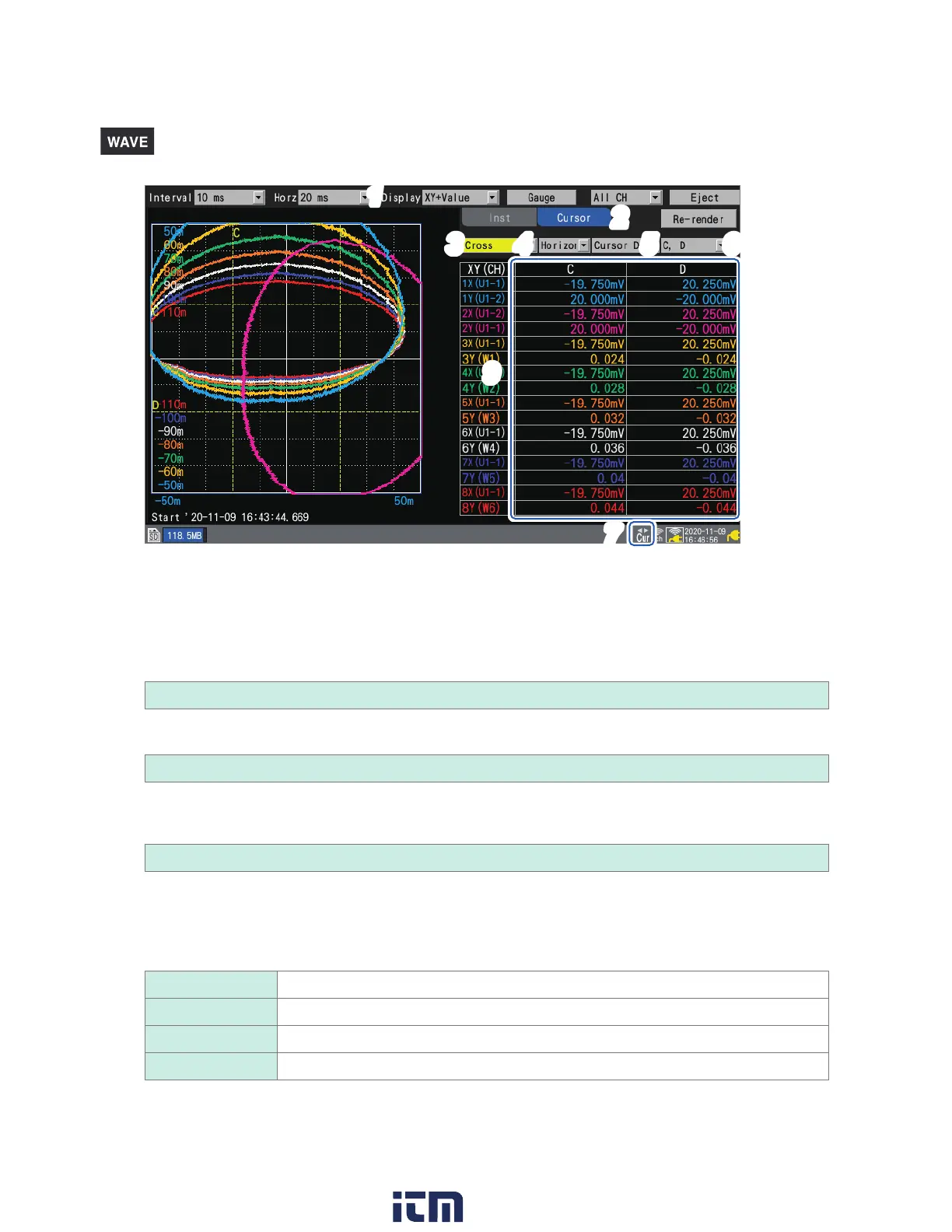

Under [Display], set the display to [XY+Value].
2
Set the display item to [Cursor].
3
Select [Cross] under the cursor settings.
4
Select the target direction.
Vertical

, Horizontal
5
Select the target cursor(s).
Cursor C

, Cursor D, Sync
You can manipulate the target cursor(s) using the SCROLL/CURSOR keys.
6
Select the display format.
C, D

; C, D-C; D, D-C; C, Comment; D, Comment; D-C, Comment
7
Press the SELECT key to display the cursor icons.
8
Press the SCROLL/CURSOR keys to move the C and D cursors.
Key operation

Moves the cursor left a large amount (10 data points at a time).

Move the cursor right a large amount (10 data points at a time).

Moves the cursor left a small amount (1 data point at a time).

Move the cursor right a small amount (1 data point at a time).
9
Check the measured values at the C and D cursors.
