Conguring Alarms
Unit Measure Channel Trigger Alarm Calculation System
3
When the input type of the logic channel (P1 to P8) is set to [Logic] (p. 43)
Press the ENTER key while [Logic] is selected.
Under [Conditions], select the condition for activating the alarm.
OFF Does not use alarms based on logic signals.
OR Outputs an alarm when any of the patterns is satised.
AND Outputs an alarm when all of the patterns are satised.
1
1
2
2
1
1
Alarm activation conditions
2
2

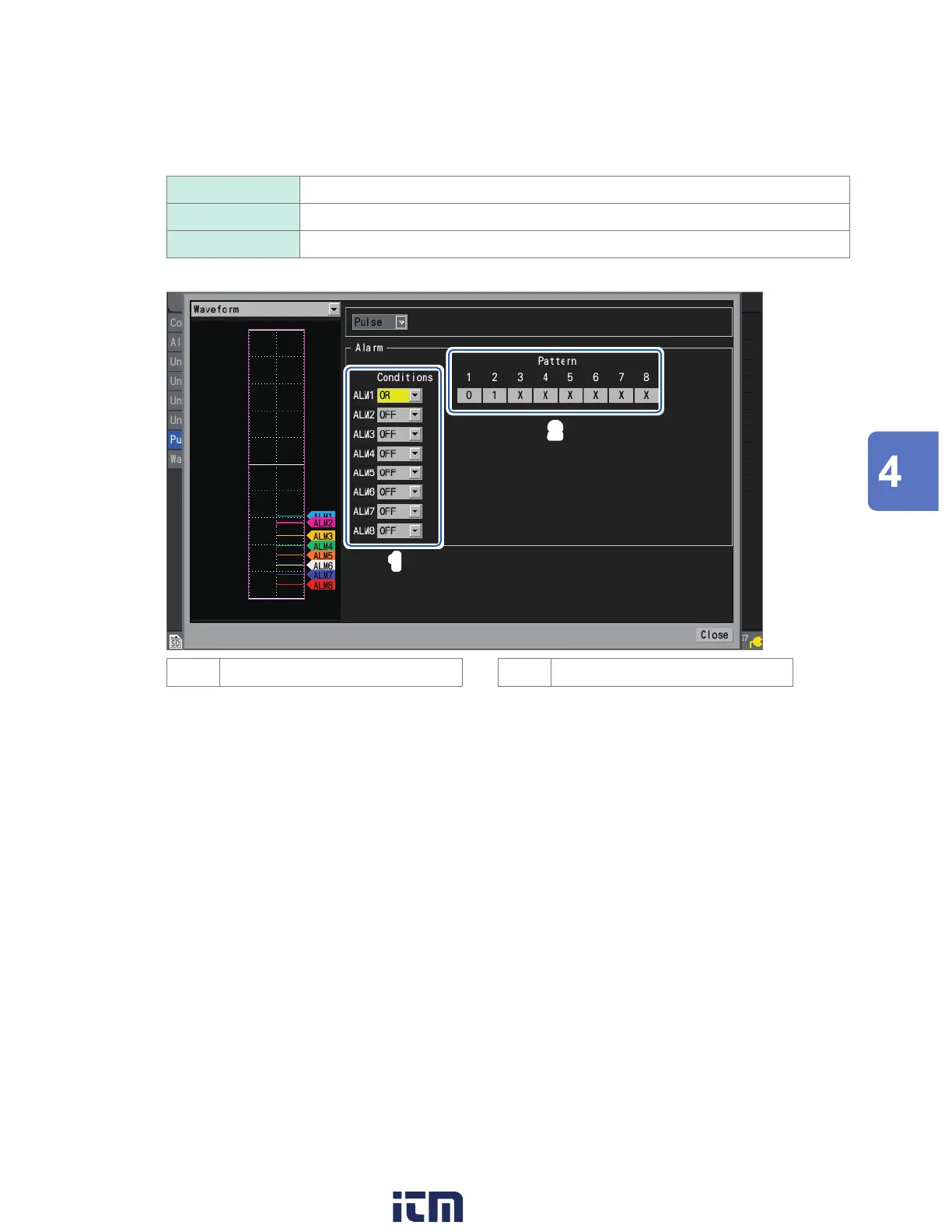

Level for Alarm [Pattern]
Alarm (Alarm Output)
