201

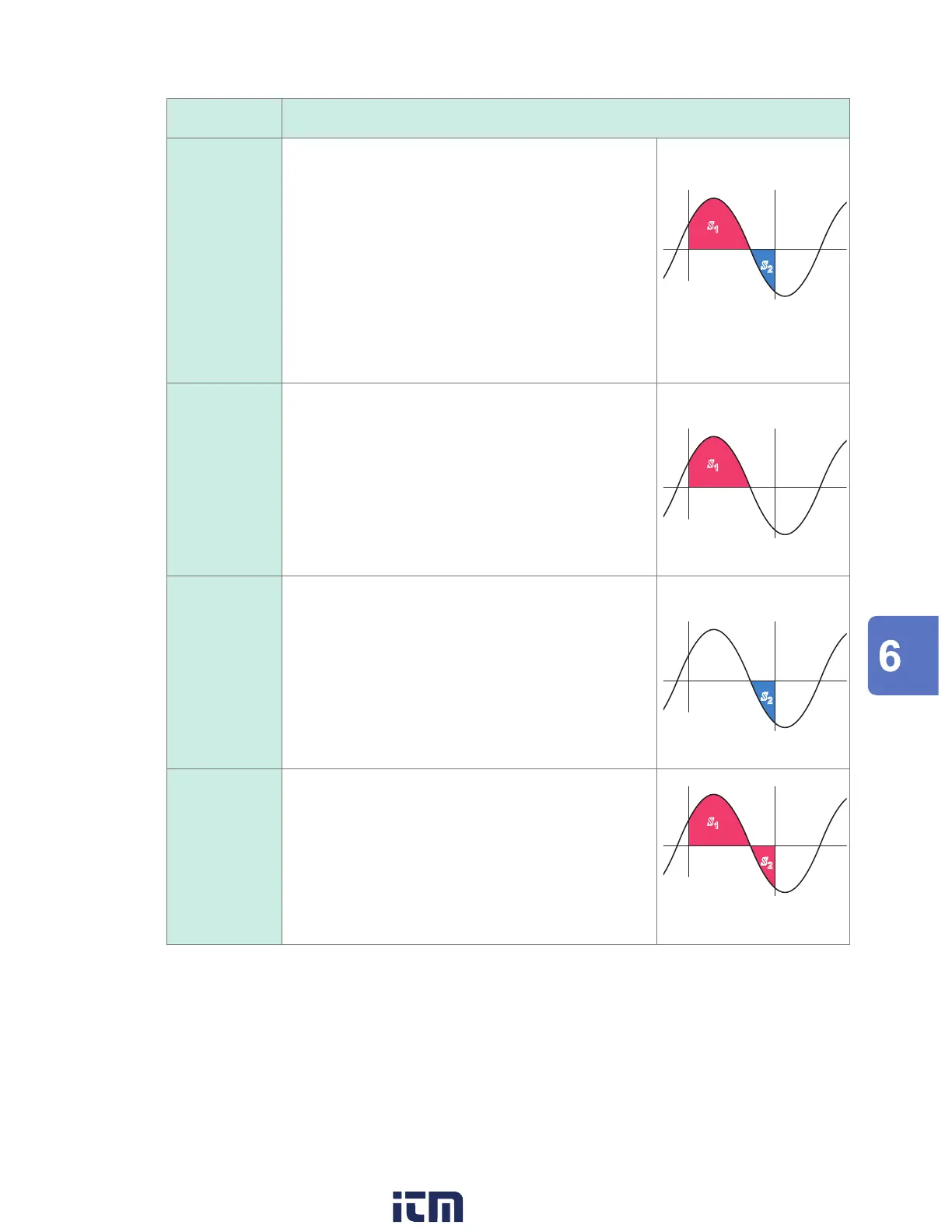

Performing Numerical Calculations
Calculation
type
Description
Integration
(Total)
Calculates the di󰀨erence between the area (V·s) enclosed
by the zero position (0 V position) and the part of the
signal waveform where its amplitude is positive and the
area (V·s) enclosed by the zero position (0 V position)
and the part of the signal waveform where its amplitude is
negative.
Calculates the integration between the cursors when
performing the calculation over a specic range (selected
using the A/B cursors).
S
: Integral value
n
: Total number of data points
di
:
i
th data point for channel
Δt
: Sampling period
di × Δt
S =
∑
i = 1
n
A cursor
B cursor
S
=
S
1
−
S
2
s
1
sss
2
s
1
ss
2
Integration
(Positive)
Calculates the area (V·s) enclosed by the zero position
(0 V position) and the area where the signal waveform’s
amplitude is positive.
When performing the calculation over a specic range
(selected using the A/B cursors), calculates the integration
between the cursors.
S
: Integral value
n
: Total number of data points
di
:
i
th data point for channel
Δt
: Sampling period
di × Δt
S =
∑
i = 1
n
, di
> 0
Only the area where the
amplitude is positive
A cursor
B cursor
S
=
S
1
s
1
s
1
Integration
(Negative)
Calculates the area (V·s) enclosed by the zero position
(0 V position) and the area where the signal waveform’s
amplitude is negative.
When performing the calculation over a specic range
(selected using the A/B cursors), calculates the integration
between the cursors.
S
: Integral value
n
: Total number of data points
di
:
i
th data point for channel
Δt
: Sampling period
di × Δt
S =
∑
i = 1
n
, di
< 0
Only the area where the
amplitude is negative
A cursor
B cursor
S
= −
S
2
sss
2
ss
2
Integration
(ABS)
Calculates the area (V·s) enclosed by the zero position (0 V
position) and the signal waveform.
When performing the calculation over a specic range
(selected using the A/B cursors), calculates the integration
between the cursors.
S
: Integral value
n
: Total number of data points
di
:
i
th data point for channel
Δt
: Sampling period
|di| × Δt
S =
∑
i = 1
n
A cursor
B cursor
S
=
S
1
+
S
2
s
1
sss
2
s
1
ss
2
Numerical and Waveform Calculations
HIOKI LR8450A964-03
