You can cycle through the calculation channel to display.
• Press the ENTER key while [16-30>] is selected to display W16 to W30.
• Press the ENTER key while [1-15>] is selected to display W1 to W15.
3
Select the check boxes for the channels for which you wish to perform calculations.
4
Select the waveform display color.
× (OFF), 24 colors
Select [×] if you wish to perform the waveform calculation but not to display the waveform on the screen.
5
Select a calculation channel and press the ENTER key.
The individual settings window will open.

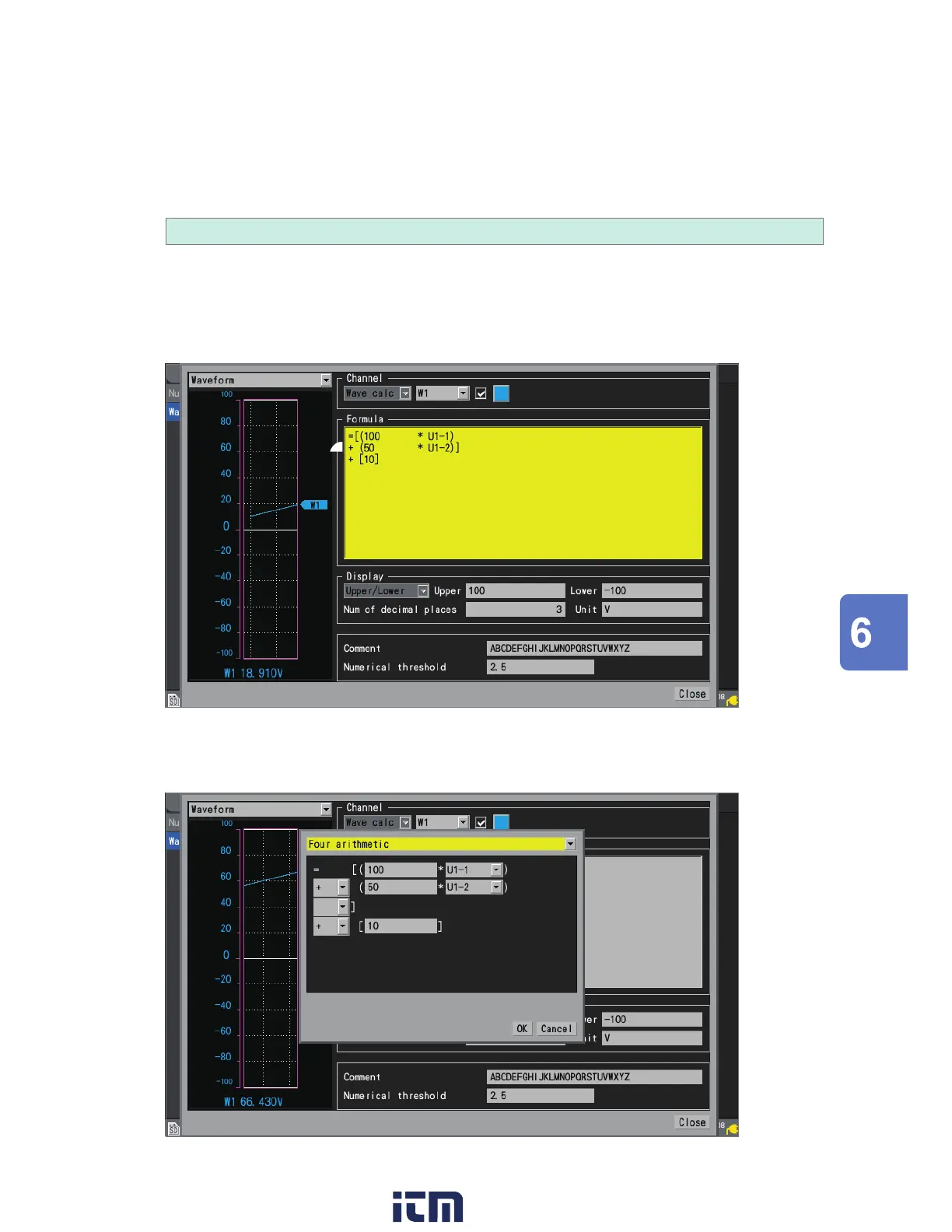

You can specify the calculation channel, toggle waveform calculation on and o󰀨, and set the
waveform display color.
6
6
6
Press the ENTER key while [Formula] is selected.
The waveform calculation entry window will open.
7
7
Numerical and Waveform Calculations
