Conguring Channels in a List
Example settings
Setting CH1’s zero position to 85% and aligning at a 5% interval
Channel Waveform zero position
CH1 (initial channel) 85% (reference channel)
CH2 80% (subsequently reducing by 5% per waveform)
CH3 75%
CH4 70%

(omitted)

(omitted)
CH14 20%
CH15 15%

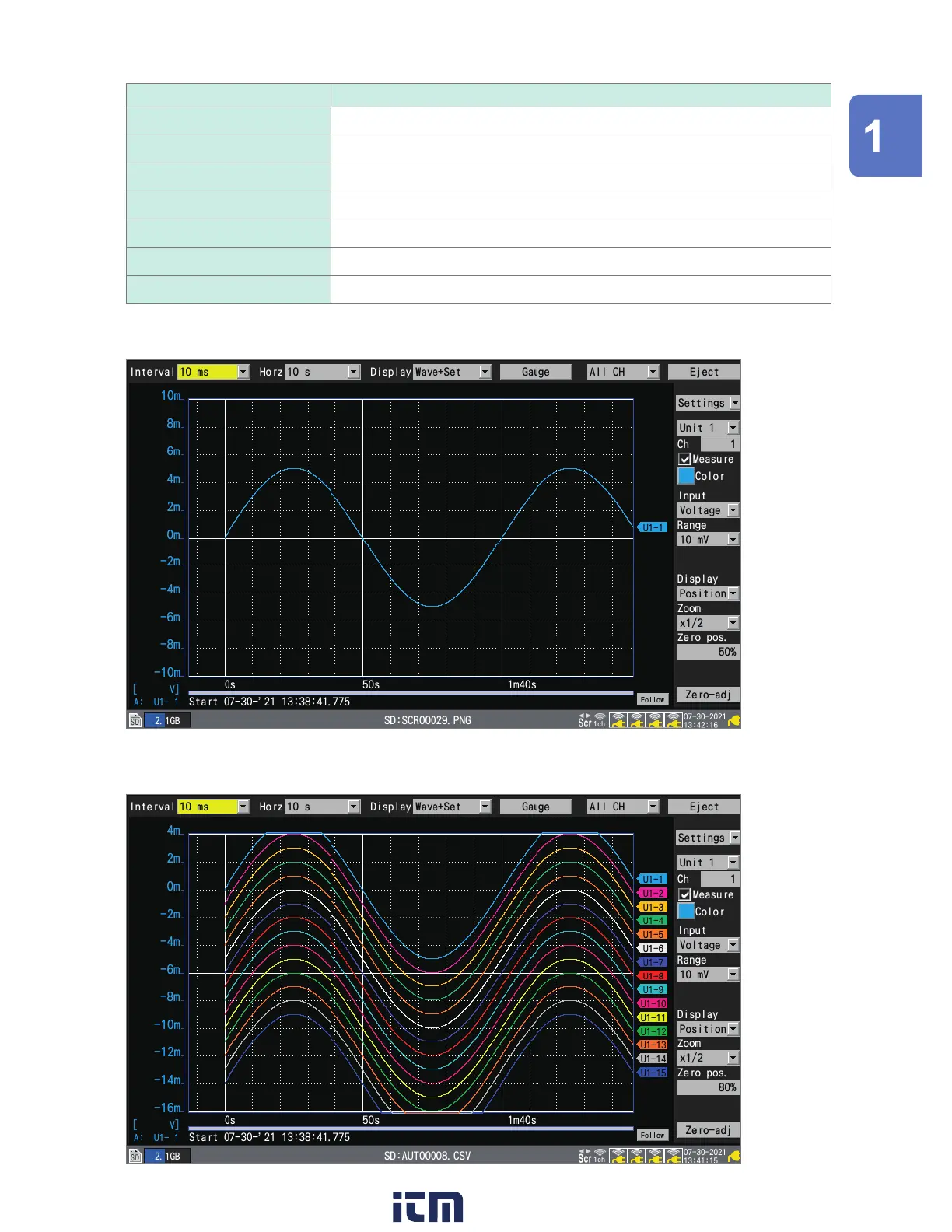

Waveform screen before alignment
Waveform screen after alignment
