Hitachi 902 - Operating Position; Operating Position of each Mechanism Around the Reaction Disk

4 - 5
(3) Operating Position
Figure 4-3 shows the operating position of each mechanism around the reaction disk.
Position no. on reaction disk
ISE aspirating position
Reagent adding position
(1st, 2nd, 3rd reagents)
Stirring position
Reacting solution aspiration
and deionized water injection
Deionized water
aspiration and injection
Deionized water
injection for water
blank measurement
Deionized water
aspiration
Sample pipetting
position
Cuvette no. at reset
For water blank
measurement (1)
For water blank
measurement (2)
For water blank
measurement (3)
For water blank
measurement (4)
Rotating
direction

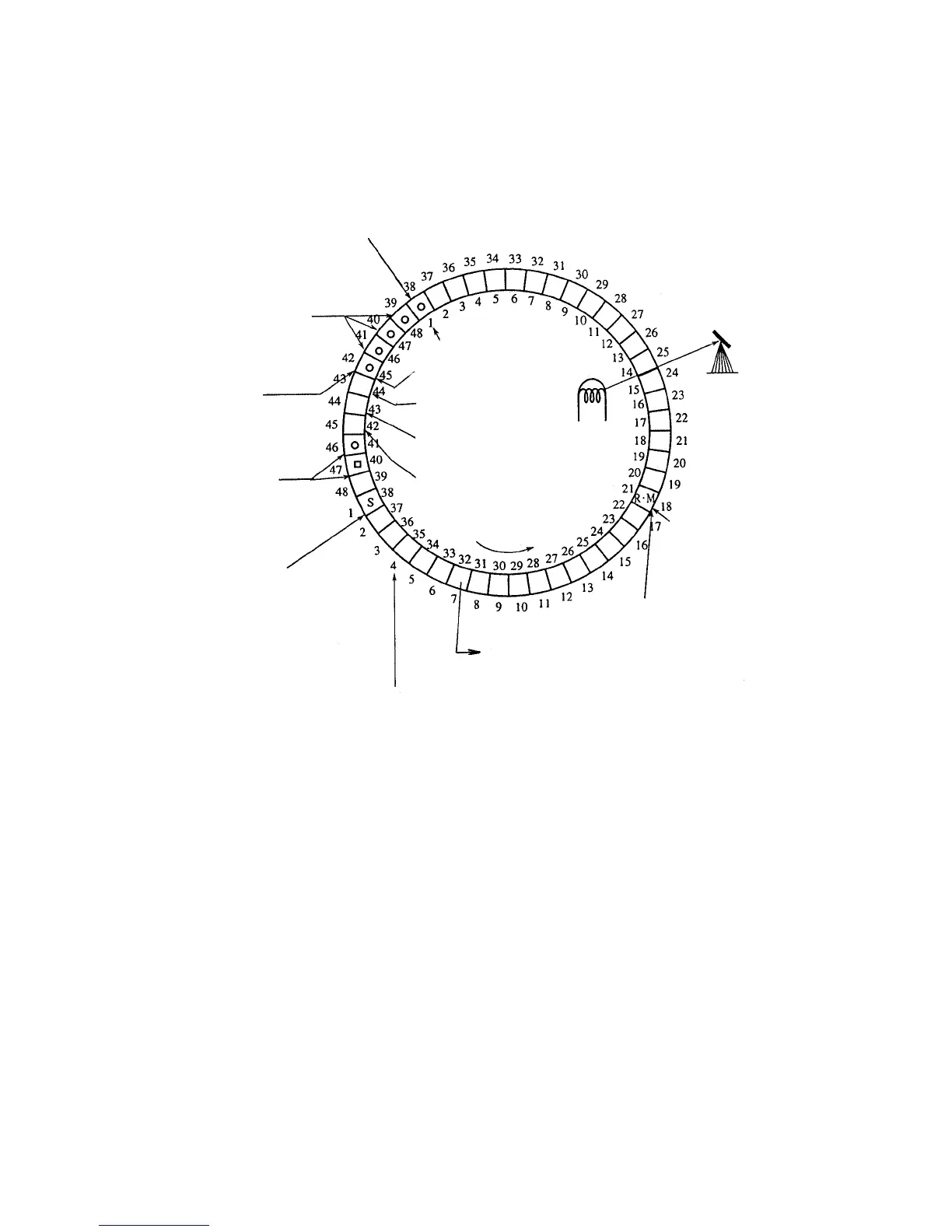

Fig. 4-3 Operating Position of Each Mechanism around the Reaction Disk
Light
source
lamp
