Hitachi 902 - Short Pins on Mother Board; Setting of DIP Switch on ECPU237 Board; Setting of DIP Switches on EMOT200 Board

6 - 1
6. SWITCH SETTING
6.1 Short Pins on Mother Board
Make sure that the mother board (MVSB100) is provided with short pins.
JP5 and JP10 in the unoccupied slots (2nd and 3rd slots) should be shorted.

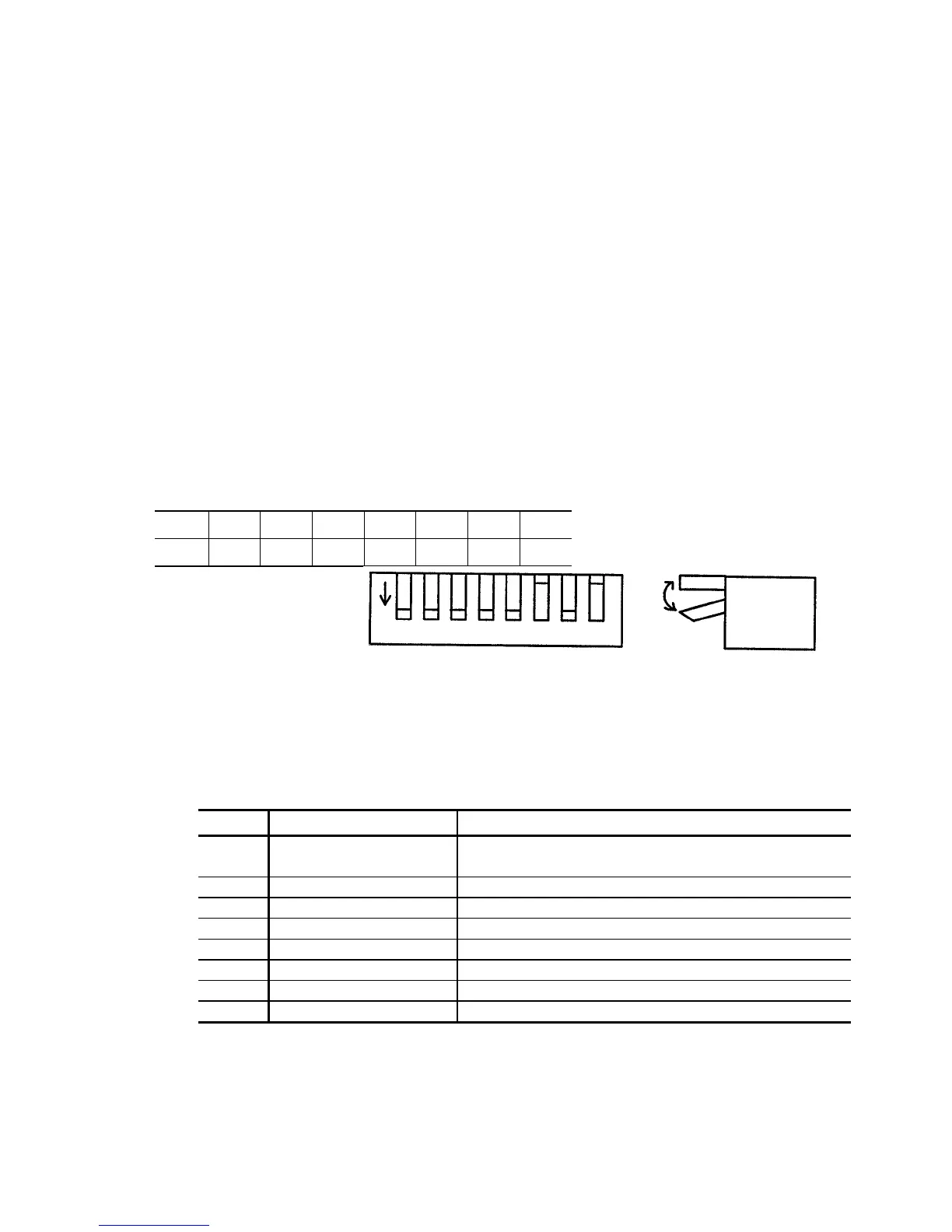

6.2 Setting of DIP Switch on ECPU237 Board
Set the DIP switch (8 pins) on the ECPU237 board as follows.
SW 1 2 3 4 5 6 7 8
ON ON ON ON ON OFF ON OFF
6.3 Setting of DIP Switches on EMOT200 Board
The following table shows DIP switch settings on the EMOT200 board.
(1) SW1
SW No. Function Description
1 Photometer wavelength OFF: For domestic use and Asia
ON : For Europe and USA
2 Unused
3 Unused
4 Unused
5 Unused
6 For serviceman ON : Test count clear, probe adjust pulse input enabled
7 Alarm release ON : Alarm release
8 For debugging ON : Watchdog release
OFF
ON
ON
1 2 3 4
5 6
7
8
