7 - 32
Operatiton (sample disk)
Outer track :........................................35 positions For routine and stat samples
Inner track : 25 positions...............For control serum, standard solution, detergent (W1, W2, W3)
(position-free except detergent)
(1) Definition of Control Variable
Represented by optional position POS # (x, y) on the S. disk.
x: Track variable (1: outer track, 2: inner track)
y: Position variable (1 to 35: outer track, 1 to 25: inner track)
(2) Rotation Control System
In rotation from POS #1 (x, y) to POS #2 (x', y'), the sample disk stops at position POS2-1
(x'-1, y'-1), is fed 1 pitch (back) and stops the next position (sampling position).
(a) x = x’ fore : θ (back) ≥ θ (fore)
back : θ (back) < θ (fore)
(b) x = x' The sample disk rotates in order of POS #N (x, y) → POS #N (n, m) (nearby
intermediary position in direction determined in (1)) → POS #2 (x'-1, y'-1) →
POS #2 (x', y').
The direction of rotation is determined in the same manner as in (1). Note
that the sample disk moves back when POS #N (n, m) is ahead of POS #2-
1 (x'-1, y'-1) in the above direction of rotation.
NOTE: θ is an angle between the current position and one position before the
destination.
For rotation and stop in one cycle, refer to the following page.

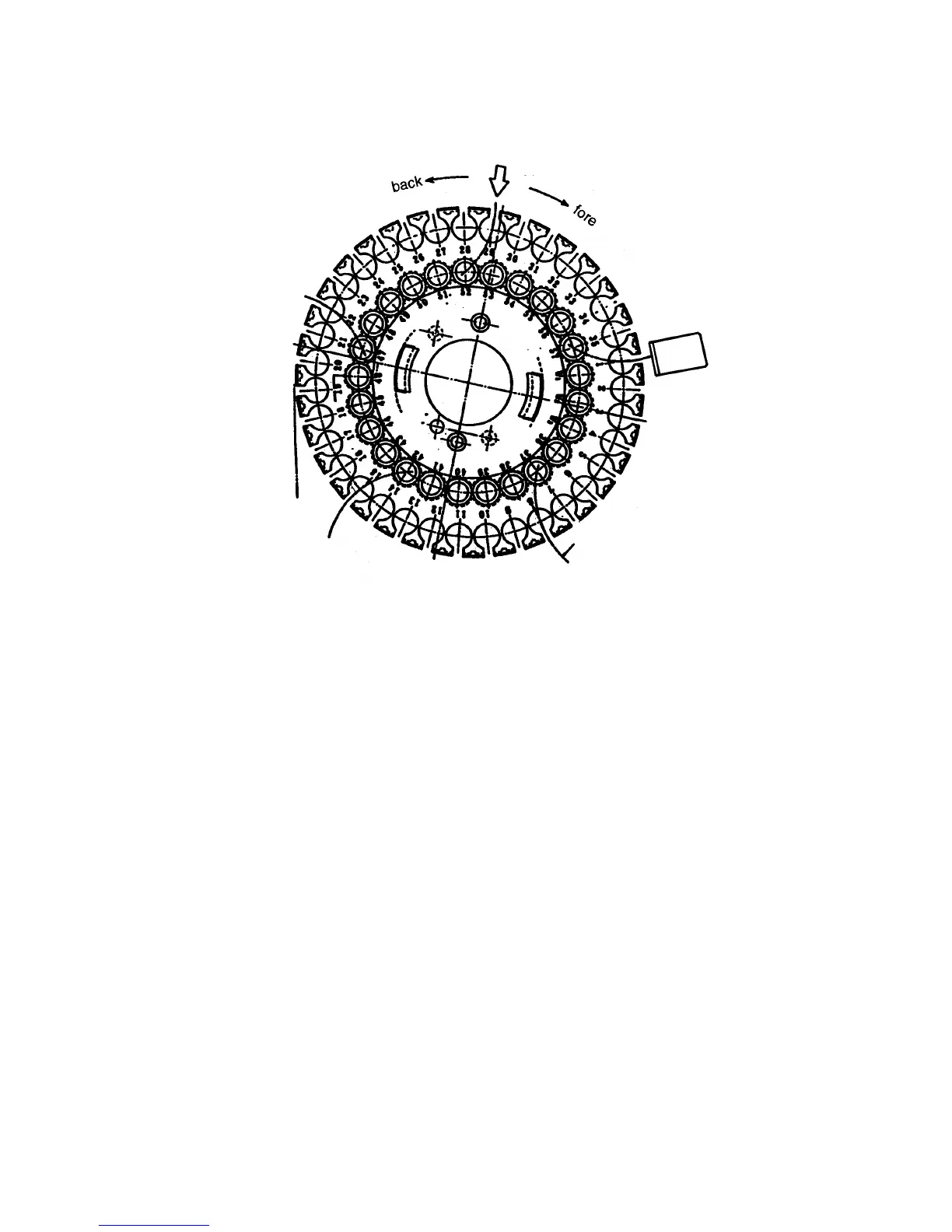

Sampling position
(sample disk stop position at reset)
Crosslink (5 points)
S. barcode
