Hitachi 902 - R.probe Rotation Adjustment; Stirring Rod Rotation Adjustment

14 - 17
(5) R.probe Rotation Adjustment
(a) Details of operation
(b) Extent of operation
1) Rotation angle: Reference value (pulse count) is subjected to no. of correction
pulses set on System Parameters screen, and corrected pulse
count shall be used.
Conditions for stopping
1) When STOP key is pressed.
2) When mechanism STOP level alarm occurs.
In case of 1), probe returns to rinse bath and stops.
(6) Stirring Rod Rotation Adjustment
(a) Details of operation
Stirring mechanism is not moved vertically.
(b) Extent of operation
1) Rotation angle: Same as in operation.
Conditions for stopping:
1) When STOP key is pressed.
2) When mechanism STOP level alarm occurs.
In case of 1), rod returns to rinse bath and stops.

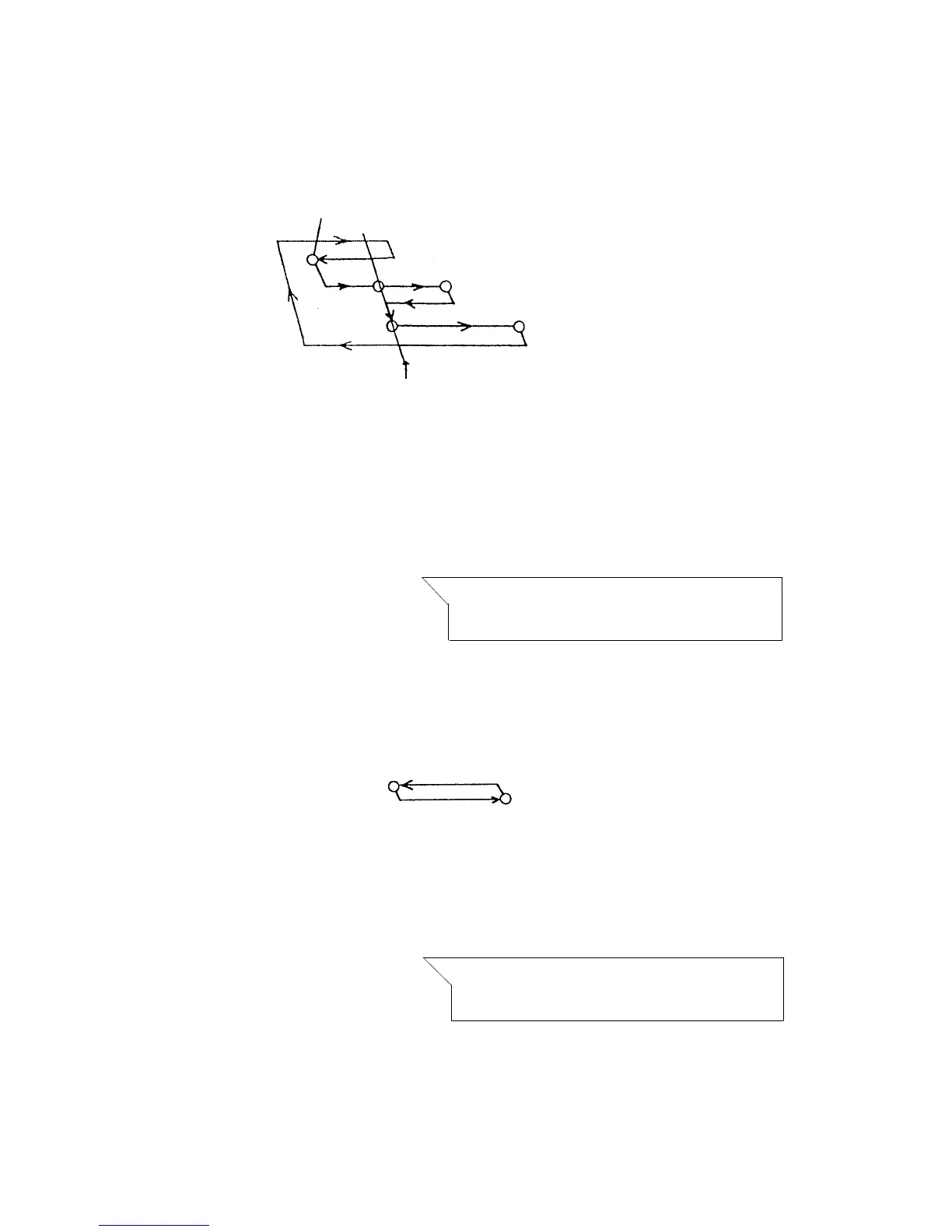

Above cell
Repeat
Rinse bath
Above reagent bottle (outer row)
Above reagent bottle (inner row)
Probe is not moved vertically.
Above cell
Repeat
Rinse bath
