7 - 48

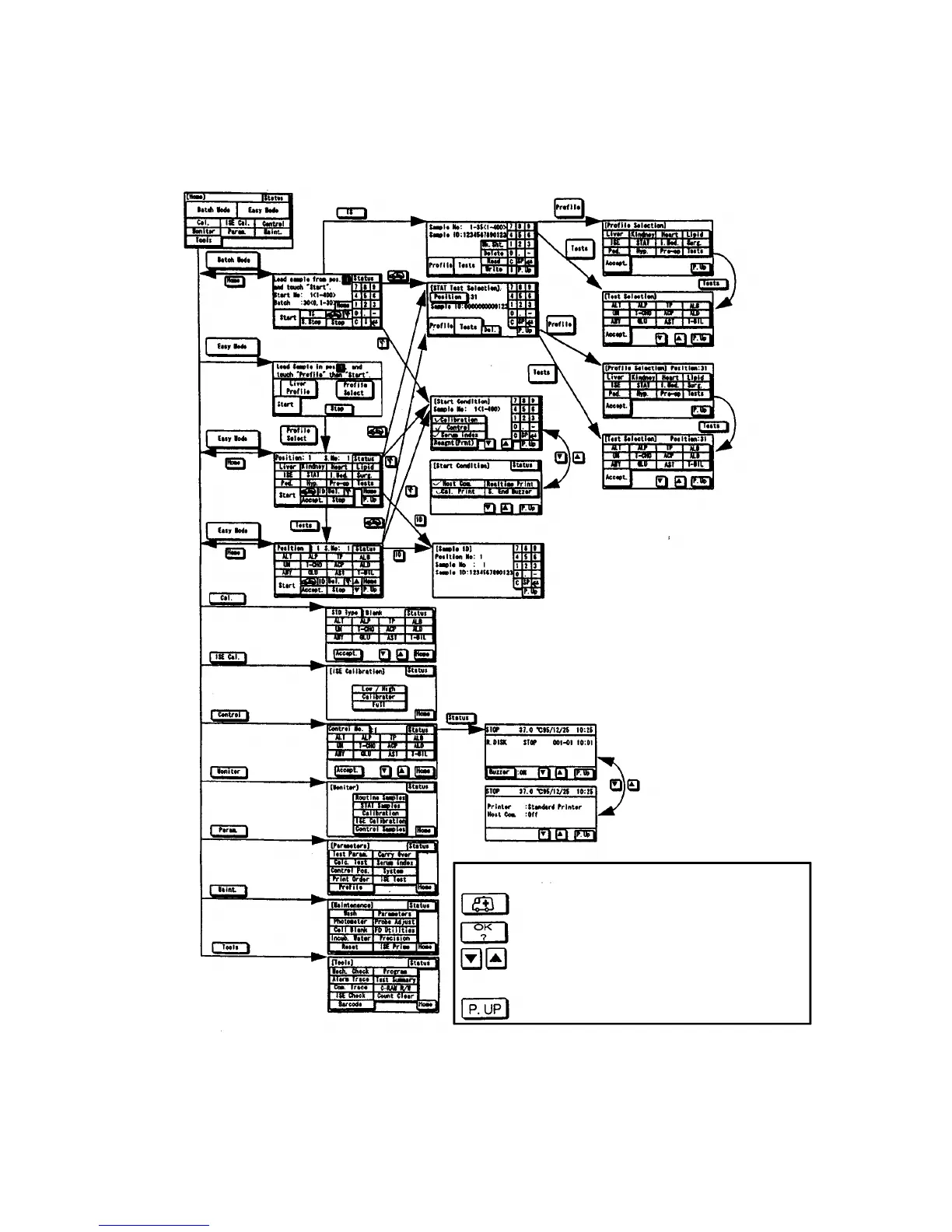

7.6.2 Screen Transition Diagram

Special Remarks:

STAT (emergency) key

Start condition key

Select the next screen if two or more screens

are available.

Returns to the opposite direction of the arrow.
