9 - 3

Examples of Reaction Time Course

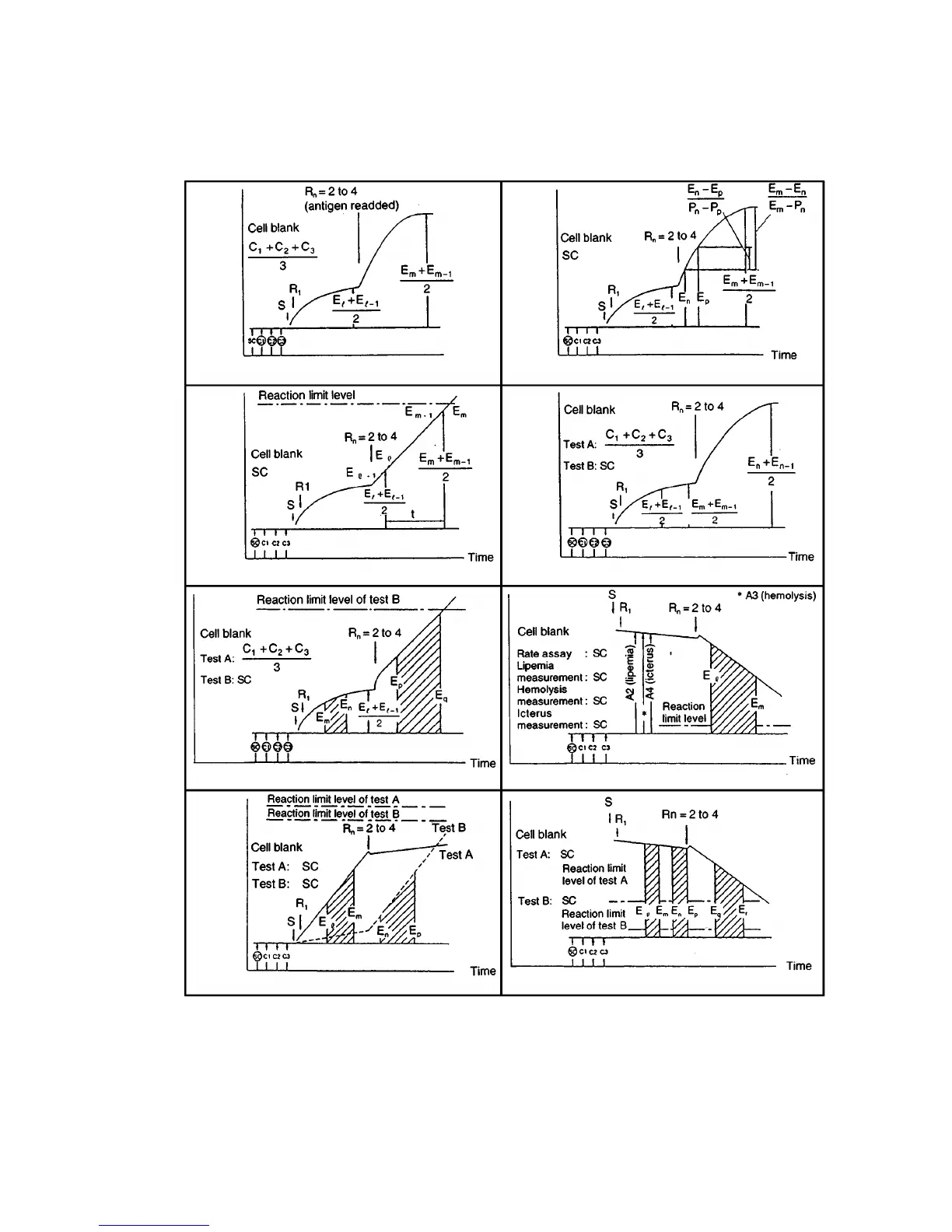

Fig. 9-1 Examples of Reaction Time Course

1-point assay (with prozone check)

2-point assay (with prozone check)

2-point rate assay

3-point twin test assay

1-point rate twin test assay

Rate assay (with serum index measurement)

Rate-B twin test assay (mode 1)

Rate-B twin test assay (mode 2)
