Hitachi G200 - Removing and Installing Cache Memory

Procedure

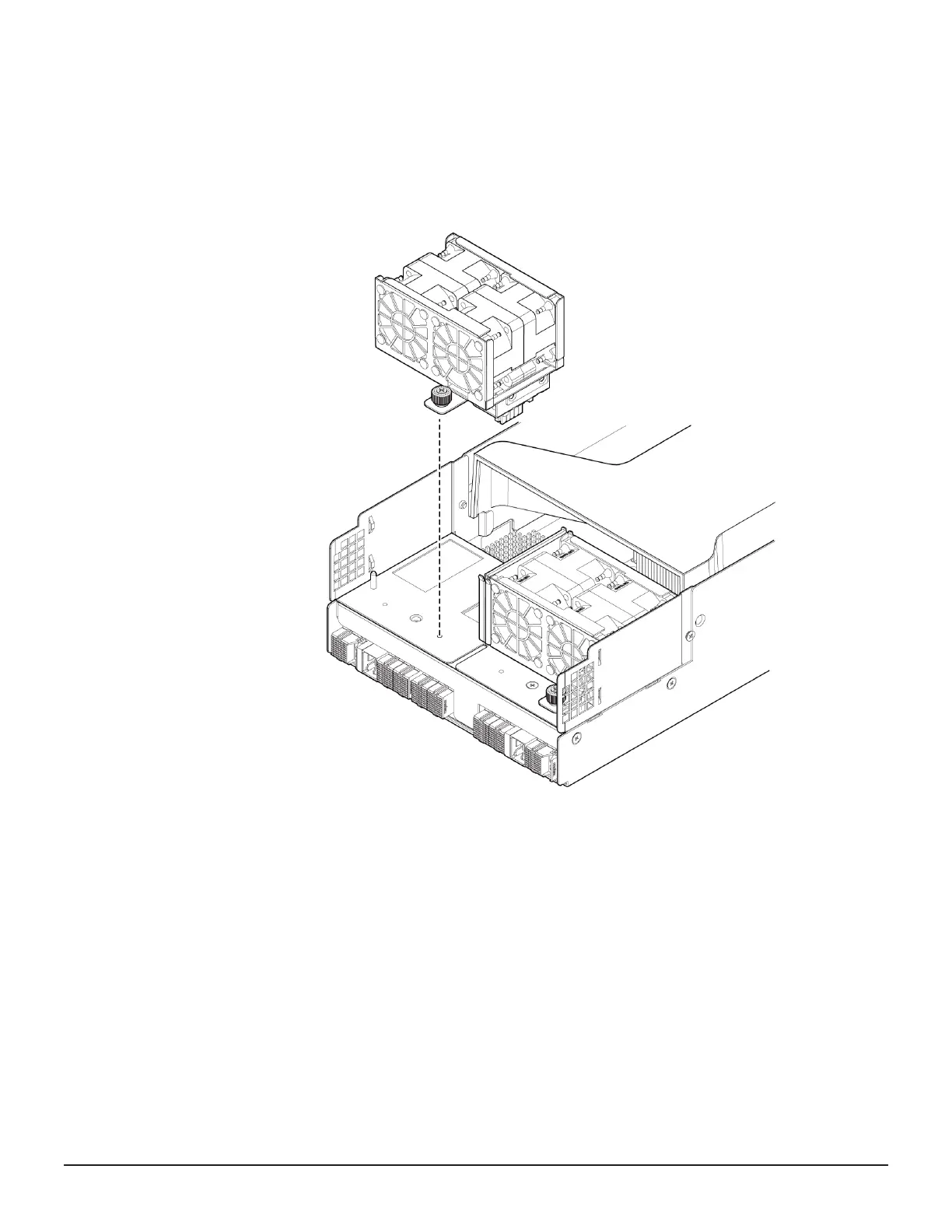

1. Loosen the blue screw that secures the fan.
2. Lift the fan and remove it from the connector.
3. Install the fan into the connector of the new controller.
4. Tighten the blue screw to secure the fan.
Removing and installing cache memory
Before you begin
• Wear a wrist strap connected to the storage system to prevent part
failures caused by static electricity. Do not remove the wrist strap until you
finish the procedure.
166 Replacing a controller
Service Guide for VSP Gx00 and VSP Fx00 Models
