Installing a controller
Before you begin
• Wear a wrist strap connected to the storage system to prevent part
failures caused by static electricity. Do not remove the wrist strap until you
finish the procedure.
• Complete the installation of all components from the old controller.
Procedure

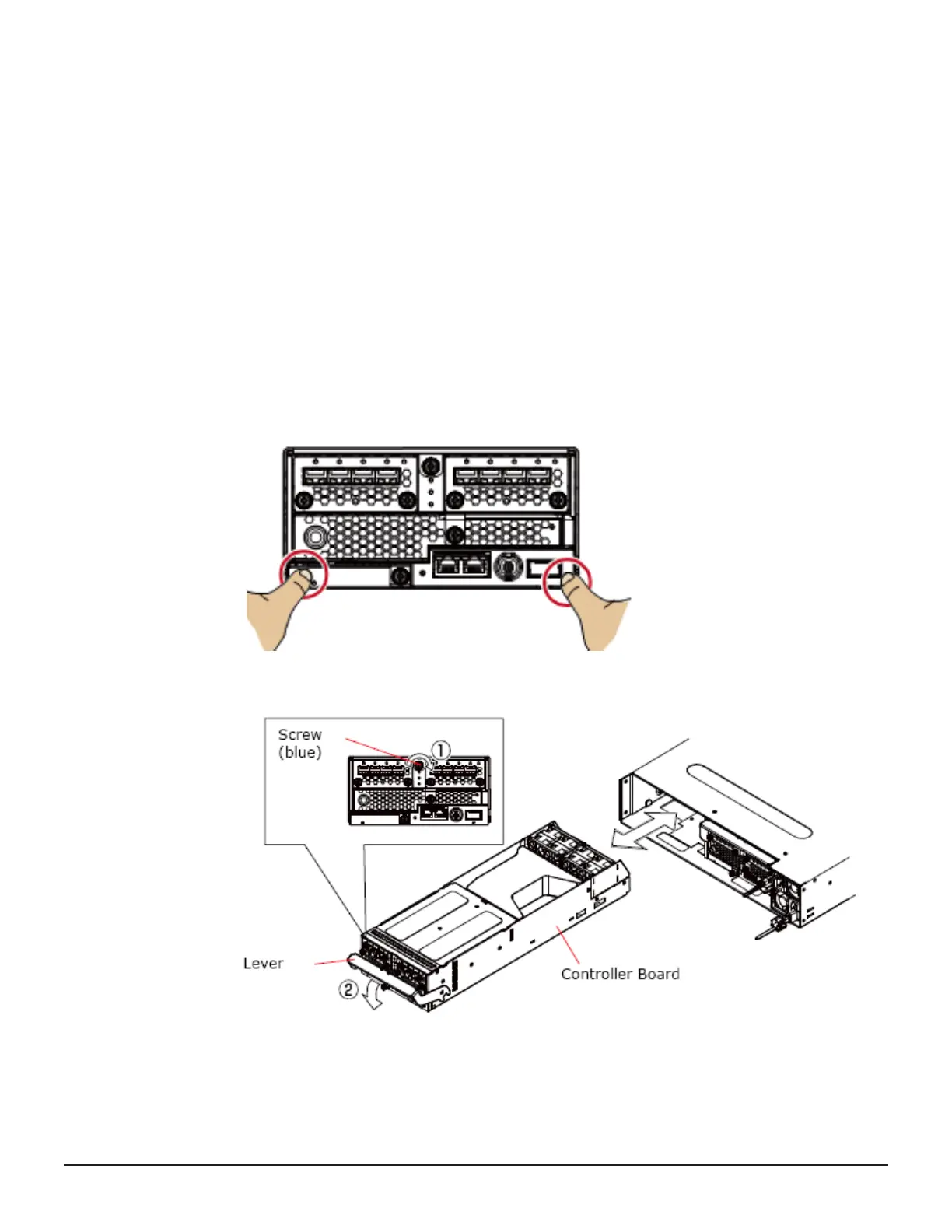

1. With the right and left levers of the new controller open completely,
insert it into the slot of CBSS or CBSL.
2. Push the bottom-front of the controller all the way into the slot. Stop
pushing when the right and left levers close completely.
3. Tighten the blue screw to secure the controller.
Replacing a controller 171
