8. Secure the controller.

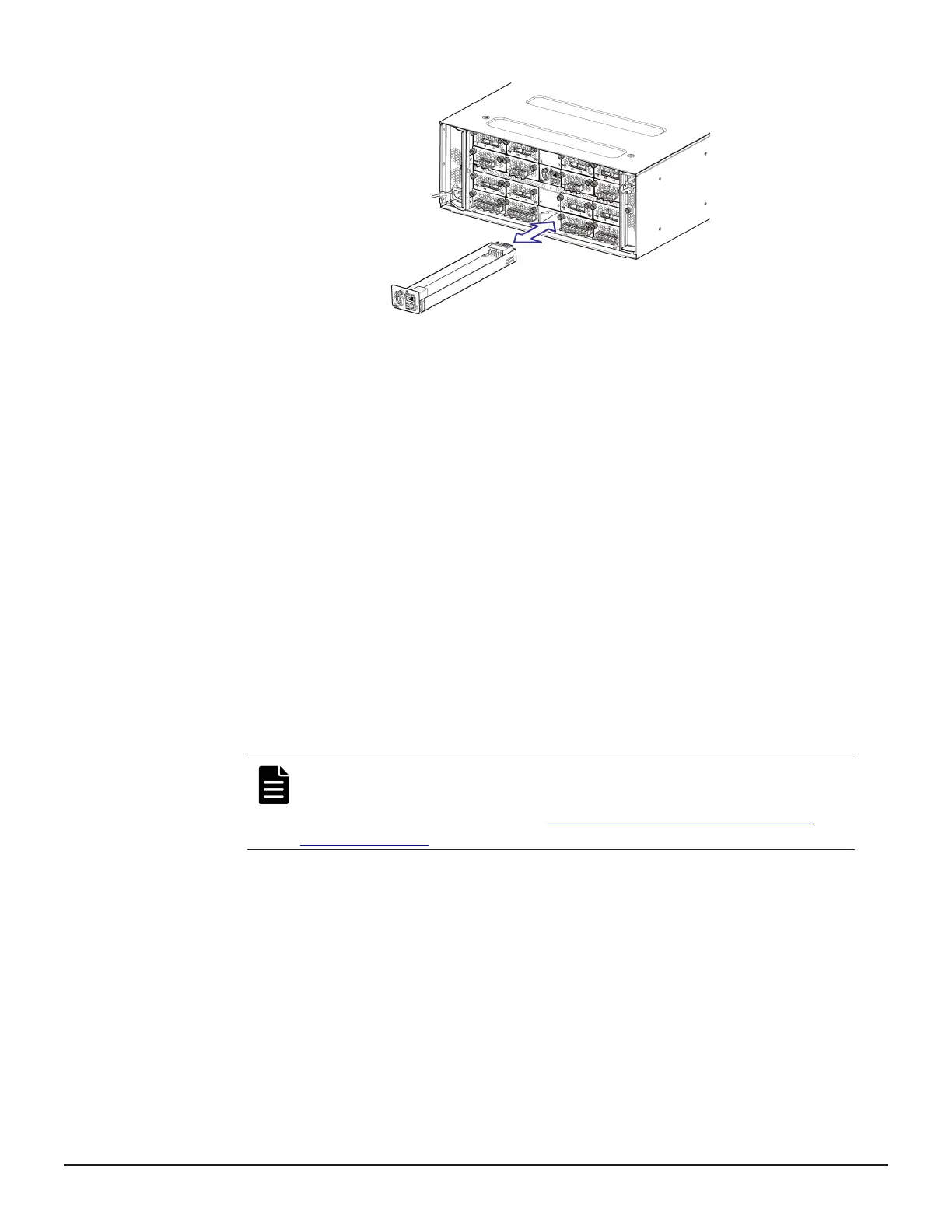

a. Push in the controller all the way until the right and left levers close
completely.
b. Tighten the blue screw and secure the controller.
9. Confirm that the red CTL ALM LED on the controller is off.
10. Connect the LAN cable you removed to the user LAN port.
Next steps
• Use the maintenance utility to restore (unblock) the LAN blade.
Restoring the LAN blade
In the maintenance utility:
Procedure
1. In the Replace Controller Board window, click Restore.
A progress bar shows the replacement status.
Note: The restore operation can take up to 20 minutes to
complete. If a message states that the recovery failed, go to the
Customer Contact Us page at https://support.hds.com/en_us/
contact-us.html.
2. When the progress bar goes away and the completion message appears,
click Close.
3. Click the LANBs tab in the Controller Chassis window and confirm that
the status of the new LAN blade is Normal.
If necessary, click Refresh at the top-right of the window to update the
status in the window.
4. Confirm that the red CTL ALM LED is off at the controller that contains
new LAN blade.
